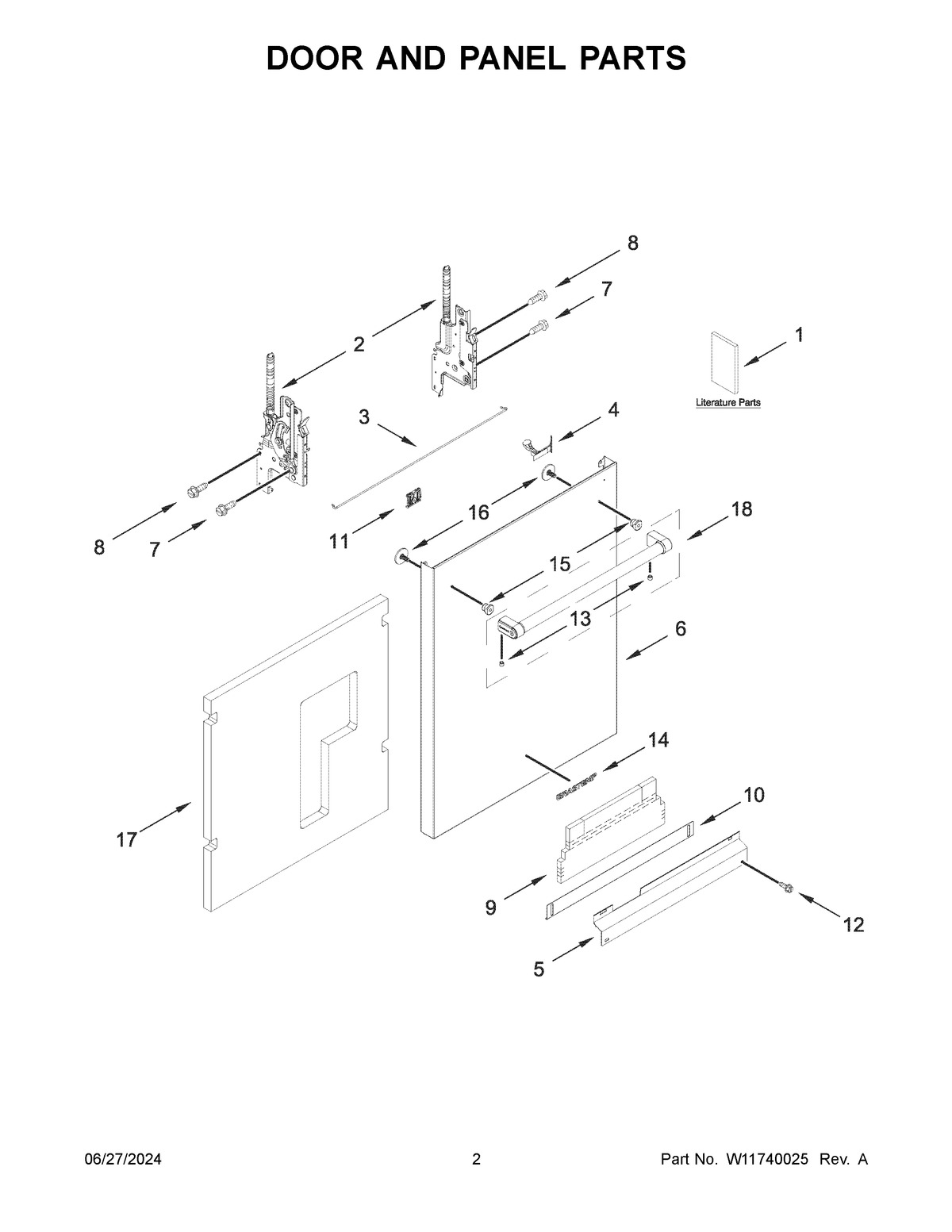

BLB14GRANA3 02 – DOOR AND PANEL PARTS

BLB14GRANA3 02 – DOOR AND PANEL PARTS

Written by

in

BLB14GRANA3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1OWNERS MANUAL
2HINGE-DOOR
2AW11712996 Whirlpool Door Hinge
3W11377160 Whirlpool Brace Assembly
4W11102920 Whirlpool Indicator Light
5W11545318 Whirlpool Toekick Plate
6PANEL, FRONT (INCLUDES 4,11 & 14) (STAINLESS)
7W11676450 Whirlpool Screw
8WPW10309090 Whirlpool Dishwasher Screw
9W11573704 Whirlpool Dishwasher Shield
10W11579528 Whirlpool Toe Panel
11W10692757 Whirlpool Dishwasher Nut Assembly
12W11551775 Whirlpool Screw
13W10917698 Whirlpool Dishwasher Screw
14BADGE
15W11157086 Whirlpool Dishwasher Door Handle Stud
16W10826179 Whirlpool Dishwasher Screw
17W10919861 Whirlpool Insulation Pad
18W11438786 Whirlpool Handle
