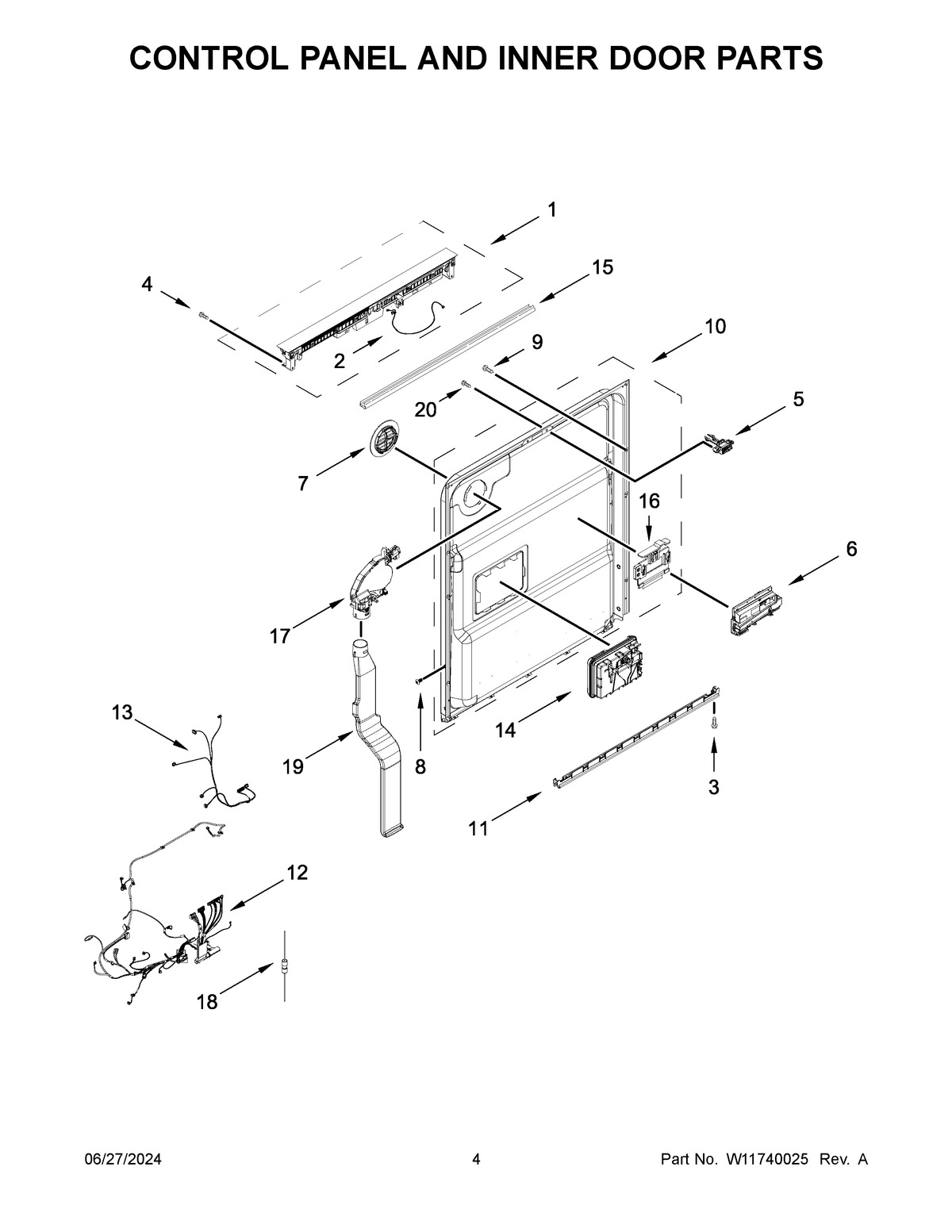

BLB14GRANA3 03 – CONTROL PANEL AND INNER DOOR PARTS

BLB14GRANA3 03 – CONTROL PANEL AND INNER DOOR PARTS

Written by

in

BLB14GRANA3 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1W11672209 Whirlpool Console with Core
2W11690158 Whirlpool Wire Harness
3W11627527 Whirlpool Screw
4WPW10213953 Whirlpool Screw
5W11412299 Whirlpool Dishwasher Door Latch
6W11672228-includeCORE Whirlpool W11672228 Refrigerator Electronic Control Board with Core
7W11545290 Whirlpool Deflector
8WP3400071 Whirlpool Screw
9WPW10348409 Whirlpool Screw
10W11559689 Whirlpool Door Inner
11W11664713 Whirlpool Dishwasher Lower Door Seal
12HARNS-WIRE
13W11678803 Whirlpool Wire Harness
14DISPENSER
15W11213719 Whirlpool Dishwasher Seal
16W11088985 Whirlpool Bracket Assembly
17W11414073 Whirlpool Vent Assembly
18W11397505 Whirlpool Wire Harness
19W11038734 Whirlpool Vent Tube
20WPW10348408 Whirlpool Dishwasher Screw
