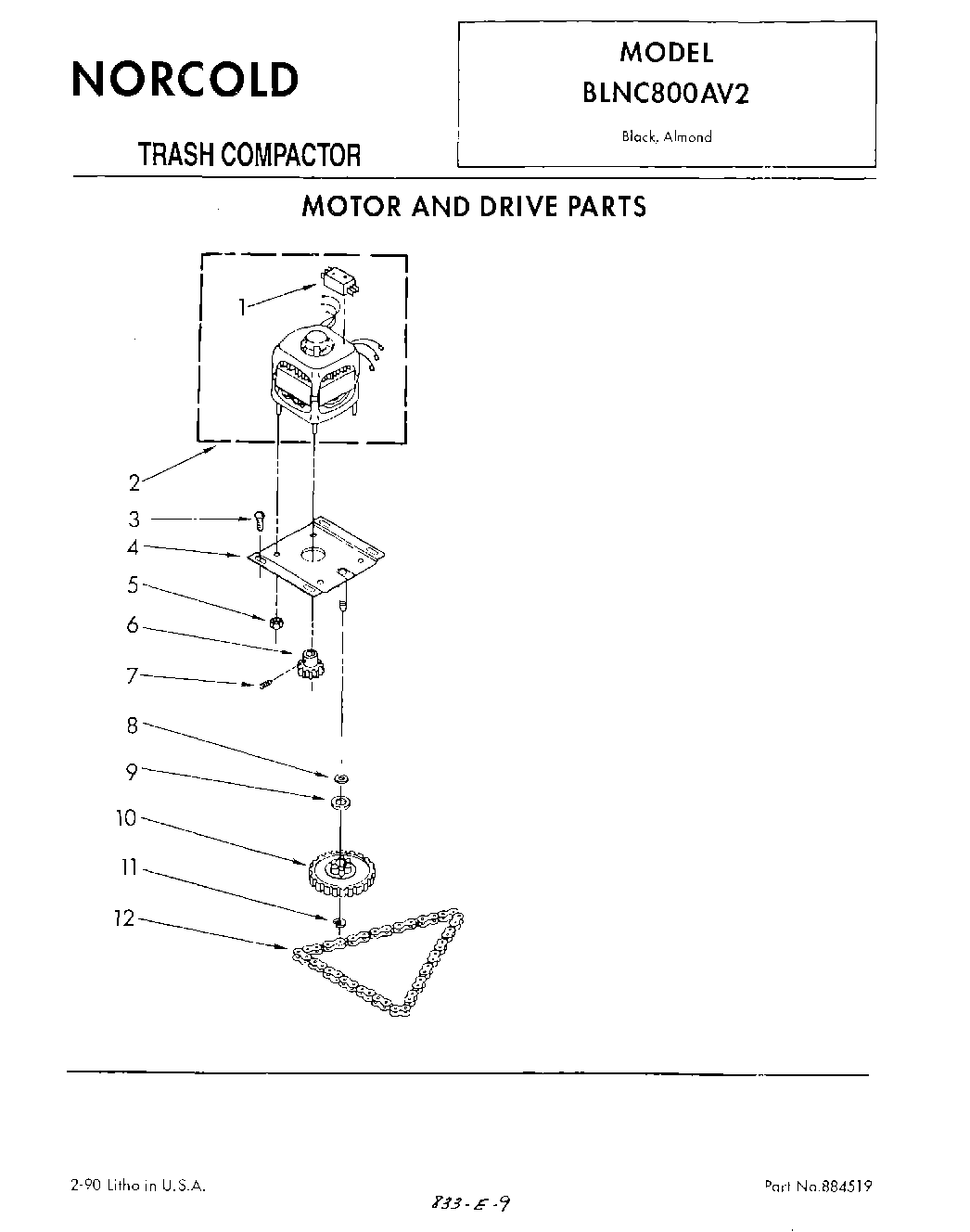

BLNC800AV2 01 – MOTOR AND DRIVE , LITERATURE AND OPTIONAL

BLNC800AV2 01 – MOTOR AND DRIVE , LITERATURE AND OPTIONAL

Written by

in

BLNC800AV2 01 – MOTOR AND DRIVE , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT884519
WPL LIT4153307
WPL LIT4151185
ENGLISH (Sheet, Tech)
1W10439651 Whirlpool Air Conditioner Motor Drive
3Screw. 1/4-20 x 1/2 (4)
4776327 Whirlpool Compactor Motor Plate
5WP776338 Whirlpool Compactor Nut
6GEAR KIT COMPACTOR
7WP454512 Whirlpool Compactor Spring Pin
8776035 Whirlpool Compactor Washer
9W11214485 Whirlpool Compactor Washer
11WP776036 Whirlpool Compactor Clip
12CHAIN-DRVE
12Harness, Wiring
