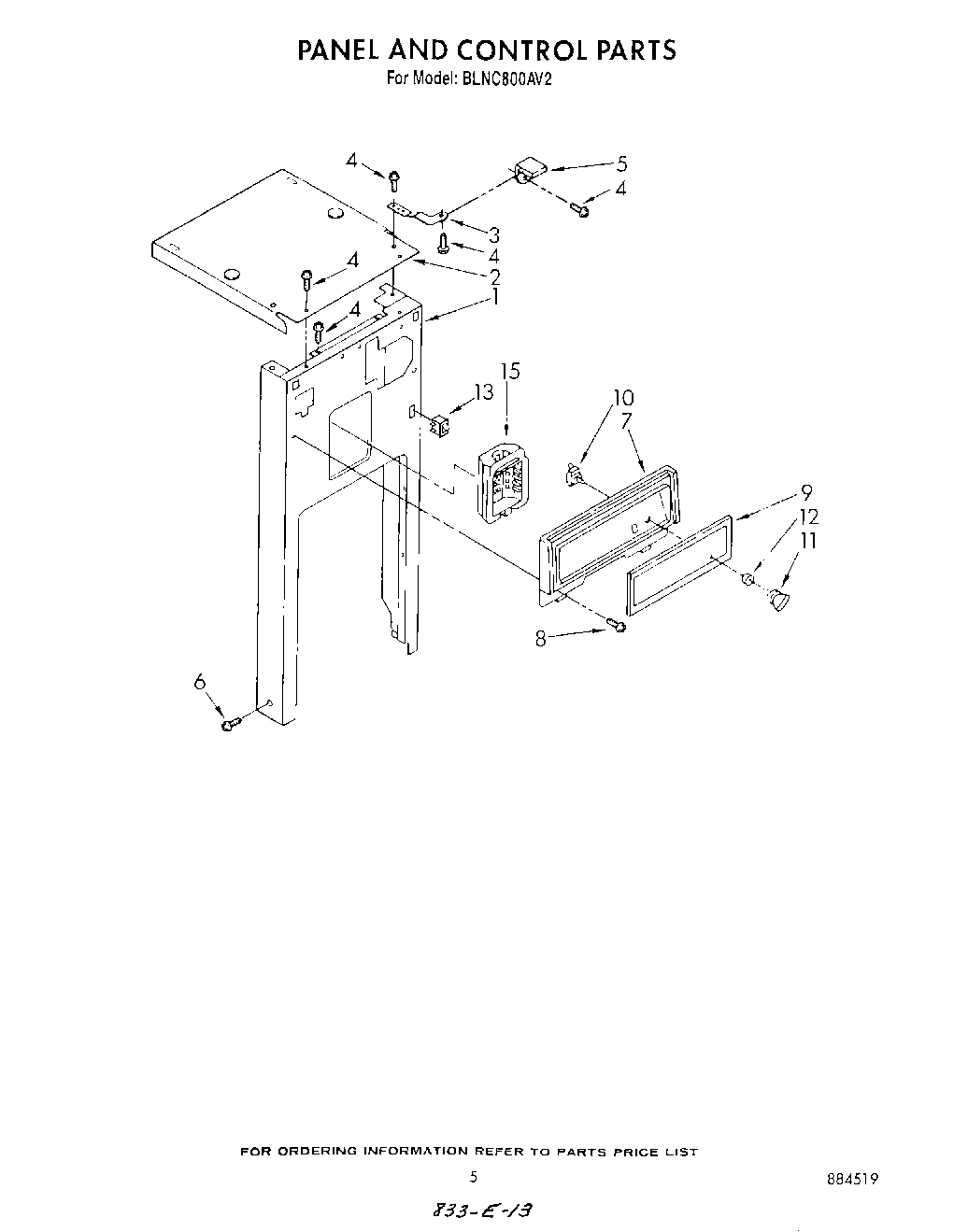

BLNC800AV2 05 – PANEL AND CONTROL

BLNC800AV2 05 – PANEL AND CONTROL

Written by

in

BLNC800AV2 05 – PANEL AND CONTROL

Products

PositionProduct
1Panel, Front Frame
2Cover, Top
3W11729437 Whirlpool Retaining Bracket
4WP302868 Whirlpool Screw
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489069 Whirlpool Compactor Screw
7Escutcheon, Control
8Screw, 6-20 x 3/8 (2)
9WPL 4151178
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11776594 Whirlpool Power Switch Knob
12WP777383 Whirlpool Compactor Nut
13WP4387911 Whirlpool Refrigerator Switch
15Holder, Deodorant Storage
