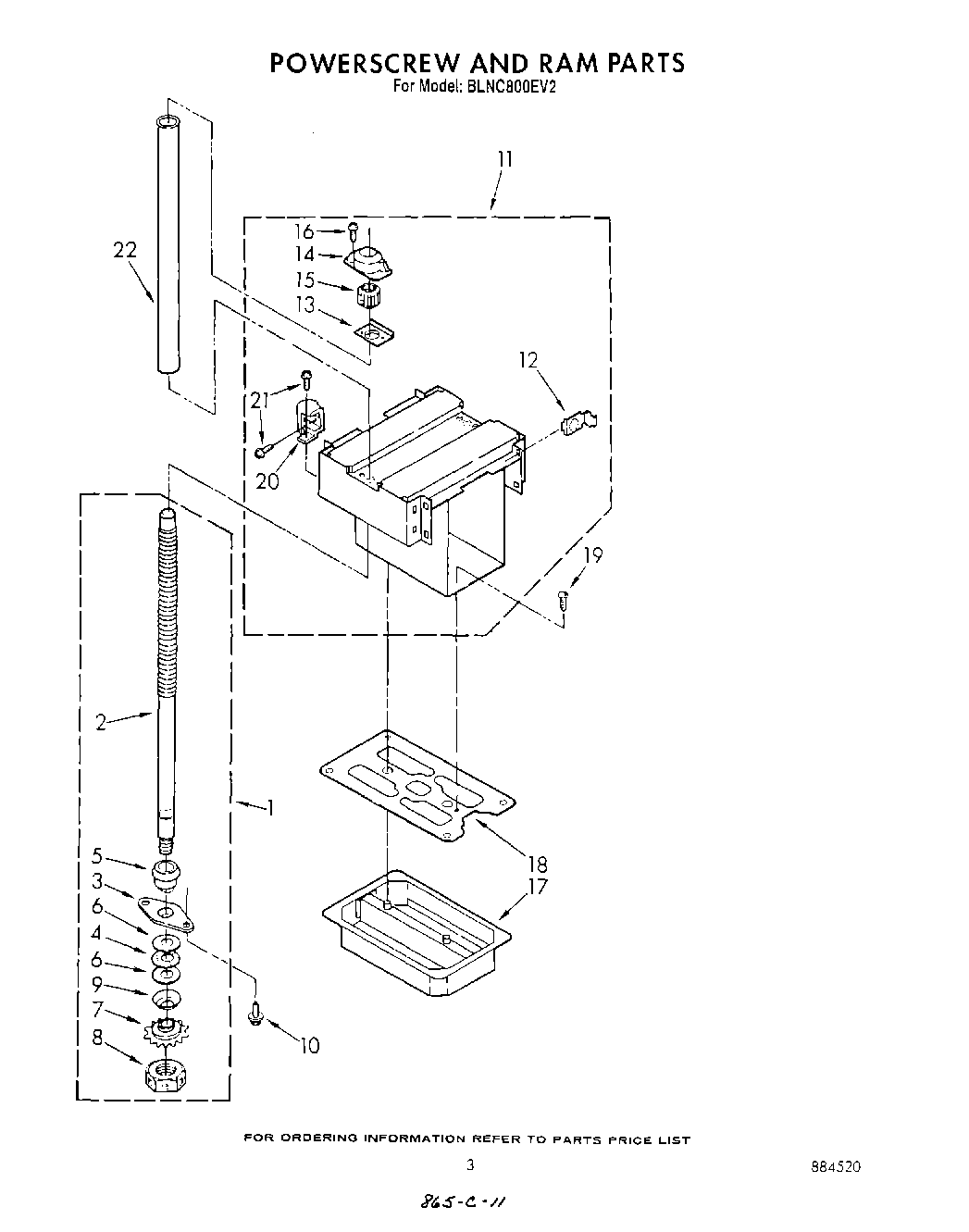

BLNC800EV2 03 – POWERSCREW & RAM PARTS

BLNC800EV2 03 – POWERSCREW & RAM PARTS

Written by

in

BLNC800EV2 03 – POWERSCREW & RAM PARTS

Products

PositionProduct
1Screw, Power Complete Assembly (2)
2Cabinet (Not A Serviceable Part)
3779121 Whirlpool Compactor Plate
4W10917043 Whirlpool Compactor Bearing
5776941 Whirlpool Compactor Power Crew Hub
6775481 Whirlpool Compactor Bearing
7SPROCKET
84154842 Whirlpool Compactor Nut
9WP777332 Whirlpool Compactor Washer
10Screw, 1/4-20 x 3/4 (4)
11Ram Assembly
12Pad, Ram (8)
13Plate, Doubler (2)
14Retainer, Nut (2)
15WP777533 Whirlpool Trash Compactor Power Nut
16WP3351614 Whirlpool Screw
17Cover, Ram
18Wiper, Ram
19SCREW
20Block, Container Stop
21WP90767 Whirlpool Screw
22Protector, Powerscrew (2)
