BLRT86TEB9 09 – SYSTEM

BLRT86TEB9 09 – SYSTEM

Written by

in

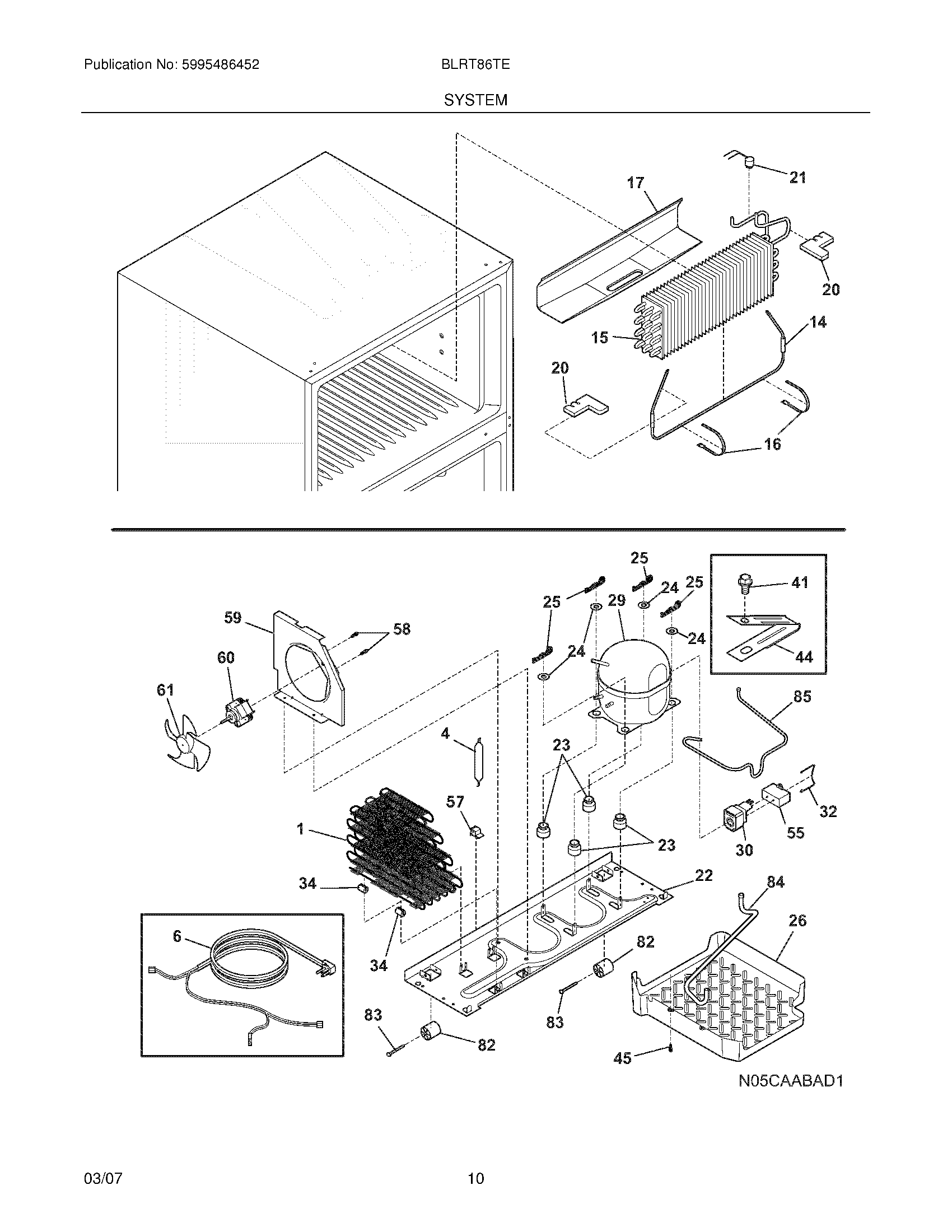

BLRT86TEB9 09 – SYSTEM

Products

Position	Product
NI	WCI 5303918222
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	WCI 241566801
NI	Wiring Harness,freezer section ,with light
NI	5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI	218252201 Frigidaire Refrigerator Screw
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
1	5304472169 Frigidaire Refrigerator Condenser Kit
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	241872701 Frigidaire Refrigerator Wiring Harness
14	240356221 Frigidaire Refrigerator Defrost Heater
15	5303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801301 Frigidaire Refrigerator Drain Trough
20	241551902 Frigidaire Refrigerator Insulation Block
21	5303918202 Frigidaire Refrigerator Defrost Thermostat
22	241665606 Frigidaire Refrigerator Compressor Base
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26	241920605 Frigidaire Refrigerator Defrost Pan
29	5304507765 Frigidaire Refrigerator Compressor Kit
30	241707715 Frigidaire Refrigerator Starter-Ptc
32	241715901 Frigidaire Strap-Cover
34	240405201 Frigidaire Refrigerator Grommet
41	240433204 Frigidaire Refrigerator Screw
44	5304456288 Frigidaire Refrigerator Clamp
45	241500305 Frigidaire Refrigerator Screw
55	297286803 Frigidaire Refrigerator Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	CONDENSER FAN MOTOR KIT
60	241696606 Frigidaire Refrigerator Motor
61	240524102 Frigidaire Refrigerator Condenser Fan Blade
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	240500801 Frigidaire Refrigerator P-1 Tube-Drain
85	WCI 241714002
