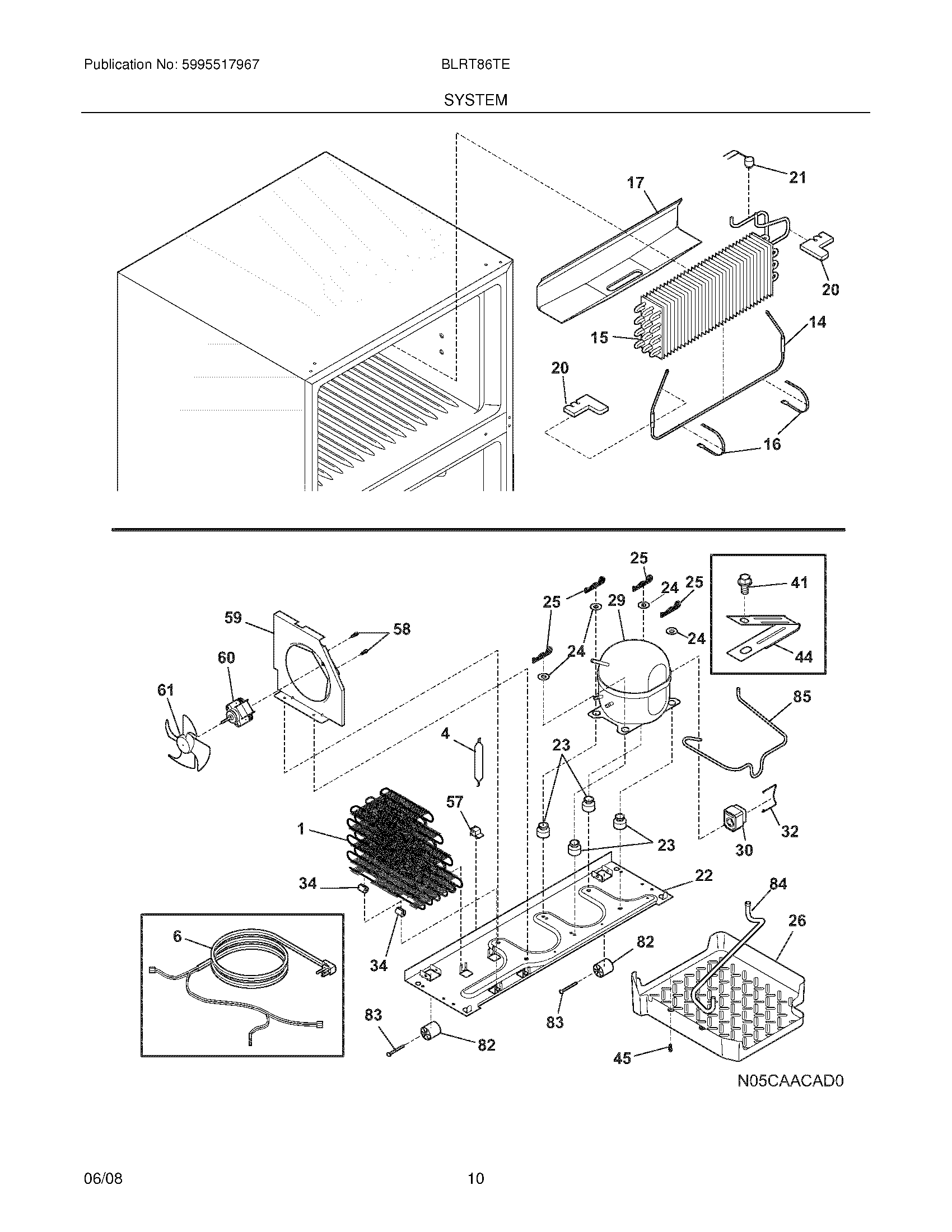

BLRT86TEBA 09 – SYSTEM

BLRT86TEBA 09 – SYSTEM

Written by

in

BLRT86TEBA 09 – SYSTEM

Products

PositionProduct
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NI218252201 Frigidaire Refrigerator Screw
NIWCI 241566801
NIWCI 5303918222
NI5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
NI240396801 Frigidaire Refrigerator Tube Clamp
1241785404 Frigidaire Refrigerator Condenser
45303305677 Frigidaire Replacement Filter Dryer Filters
6241872701 Frigidaire Refrigerator Wiring Harness
14240356221 Frigidaire Refrigerator Defrost Heater
155303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
20241551902 Frigidaire Refrigerator Insulation Block
215303918202 Frigidaire Refrigerator Defrost Thermostat
22241665606 Frigidaire Refrigerator Compressor Base
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26241920605 Frigidaire Refrigerator Defrost Pan
295304475098 Frigidaire Refrigerator Compressor Kit
30WCI 241932401
32WCI 241934001
34240405201 Frigidaire Refrigerator Grommet
41240433204 Frigidaire Refrigerator Screw
445304456288 Frigidaire Refrigerator Clamp
45241500305 Frigidaire Refrigerator Screw
57240542601 Frigidaire Clip-WIRING Harness
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59CONDENSER FAN MOTOR KIT
60241696606 Frigidaire Refrigerator Motor
61240524102 Frigidaire Refrigerator Condenser Fan Blade
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84240500801 Frigidaire Refrigerator P-1 Tube-Drain
85WCI 241844801
