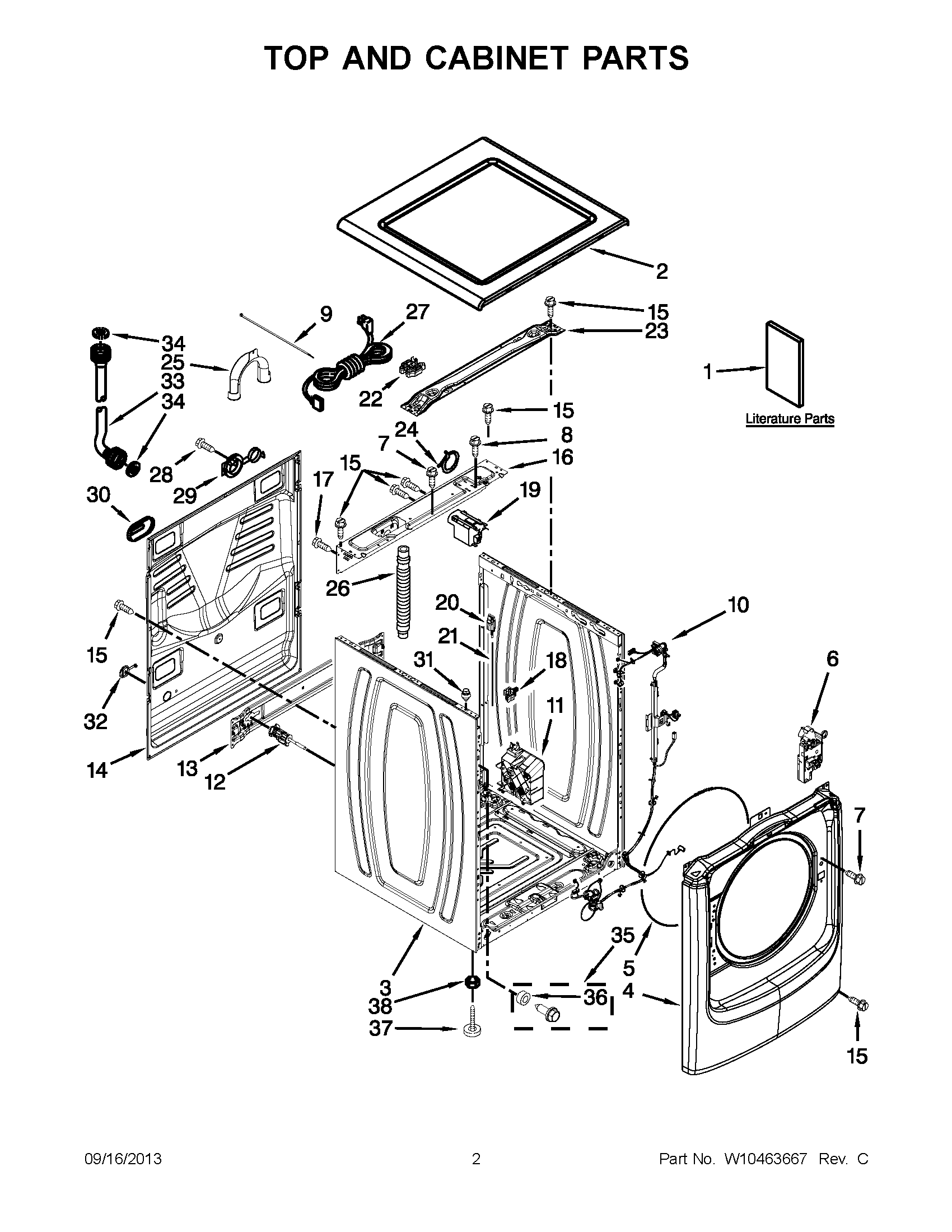

BNQ11CVANA0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1OWNERS MANUAL
2TOP (RED)
3CABINET (RED)
4PANEL, FRONT (RED)
5CLAMP
6LATCH-WASHER DOOR
7WP8540282 Whirlpool Screw
88540329 Whirlpool Screw
9WPW10339879 Whirlpool Wire Tie
10W10432029 Whirlpool Wire Harness
11WPW10374126 Whirlpool Control Board + Core
12W10763470 Whirlpool Bolt
13W10237498 Whirlpool Bracket Assembly
14W11199206 Whirlpool Panel
15WP489464 Whirlpool Refrigerator Screw
16WPW10467483 Whirlpool Bracket
17SCREW, M4.1-1.8 X 57
18WPW10181028 Whirlpool Clip
19WPW10367632 Whirlpool Filter
20WPW10304342 Whirlpool Washer Water Level Switch
21W11044559 Whirlpool Hose
22W10245452 Whirlpool Retainer
23W10467484 Whirlpool Bracket
24WP356138 Whirlpool Hose Clamp
25WPW10280024 Whirlpool Retainer
26W11281268 Whirlpool Hose
27W10423184 Whirlpool Power Cord
28WP3351614 Whirlpool Screw
29W10854051 Whirlpool Cover Assembly
30WP8540268 Whirlpool Cover Assembly
31W10208380 Whirlpool Screw
32W10304004 Whirlpool Cover
33WP89503 Whirlpool Washer Fill Hose
34WP16123 Whirlpool Washer
35W10298211 Whirlpool Stud
36W10323182 Whirlpool Spacer
37WPW10001130 Whirlpool Leveling Leg
38WP3359452 Whirlpool Nut
