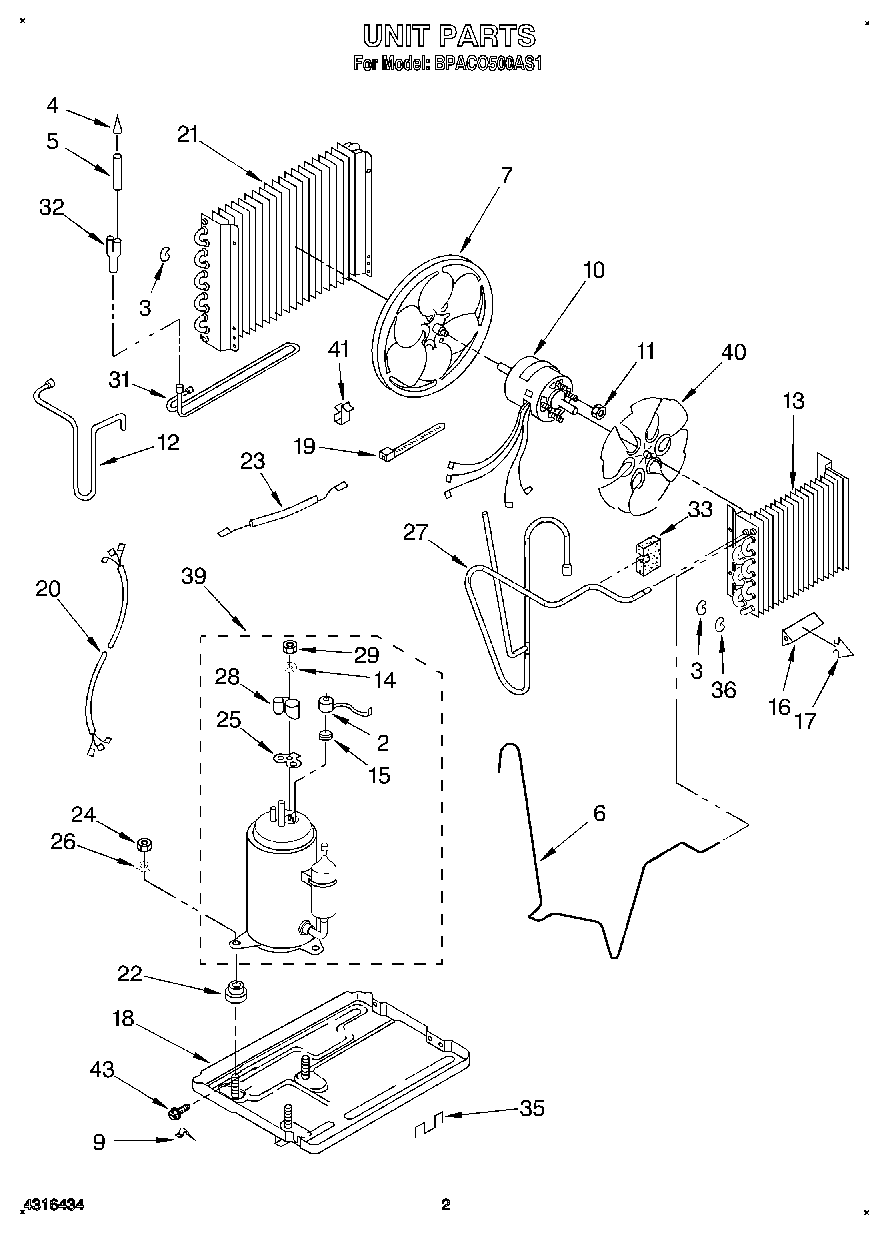

BPAC0500AS1 02 – UNIT, LITERATURE

Products

Position	Product
	Instructions, Installation
	Guide Operation
	Tech Sheet
	Wiring Diagram
2	Overload
3	Bend, Return Condenser (4)
4	Strainer
5	Tube & Strainer (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan
9	Clamp, Tube (2)
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Discharge
13	Evaporator
14	Gasket, Nut
15	Spring, Overload
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	WPW10339879 Whirlpool Wire Tie
20	Harness, Wiring
21	Condenser
22	Grommet
23	Wire, Lead
24	Nut, Hex (4)
25	WP950035 Whirlpool Cover Gasket
26	WP120393 Whirlpool Washer Assembly
27	Tube, Suction
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
31	Tube, Condenser Extension
32	Tube, Flow Divider
33	Sealer, Foam Tube
35	Clip, Mtg. (2) (Base to Front)
36	Bend, Return Condenser (10)
39	Compressor Assembly
40	Blade, Fan
41	Clamp, Wiring
43	WP489069 Whirlpool Compactor Screw
