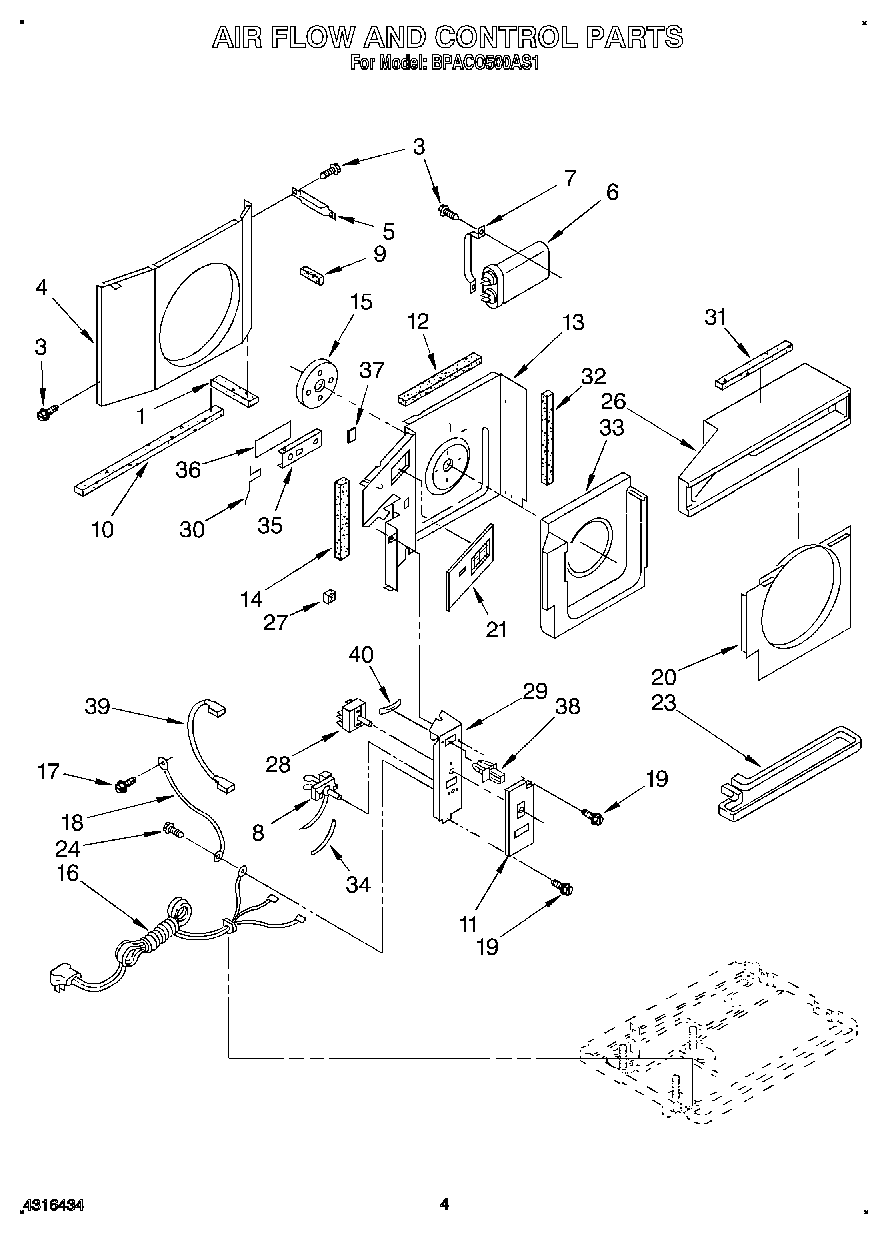

BPAC0500AS1 03 – AIRFLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Control, Temperature
9	Seal, Condenser (R.S.)
10	Seal
11	Insulation, Control Panel
12	Guard, Edge Seal
13	Wall, Dividing
14	Guard, Edge Seal
15	Insulation, Motor
16	Cord, Appliance
17	Screw, 8 x 3/8
18	Wire, Ground
19	Screw, 6-32 x .175
20	Shroud, Evaporator
21	Screen/Insul. Assembly
23	Pan, Evaporator
24	Screw 8-18 x .295
26	Hood, Air Housing
27	Sealer, Tube
28	Switch, Rotary
29	Panel, Control
30	Arm, Exhaust Door
32	WP854334 Whirlpool Air Conditioner Sealing Strip
33	Housing, Air
34	Insulation, Sleeve
35	Door, Exhaust
36	Barrier Protective
37	Spacer
38	Actuator, Door
39	Wire, Jumper
40	Spring, Retainer
