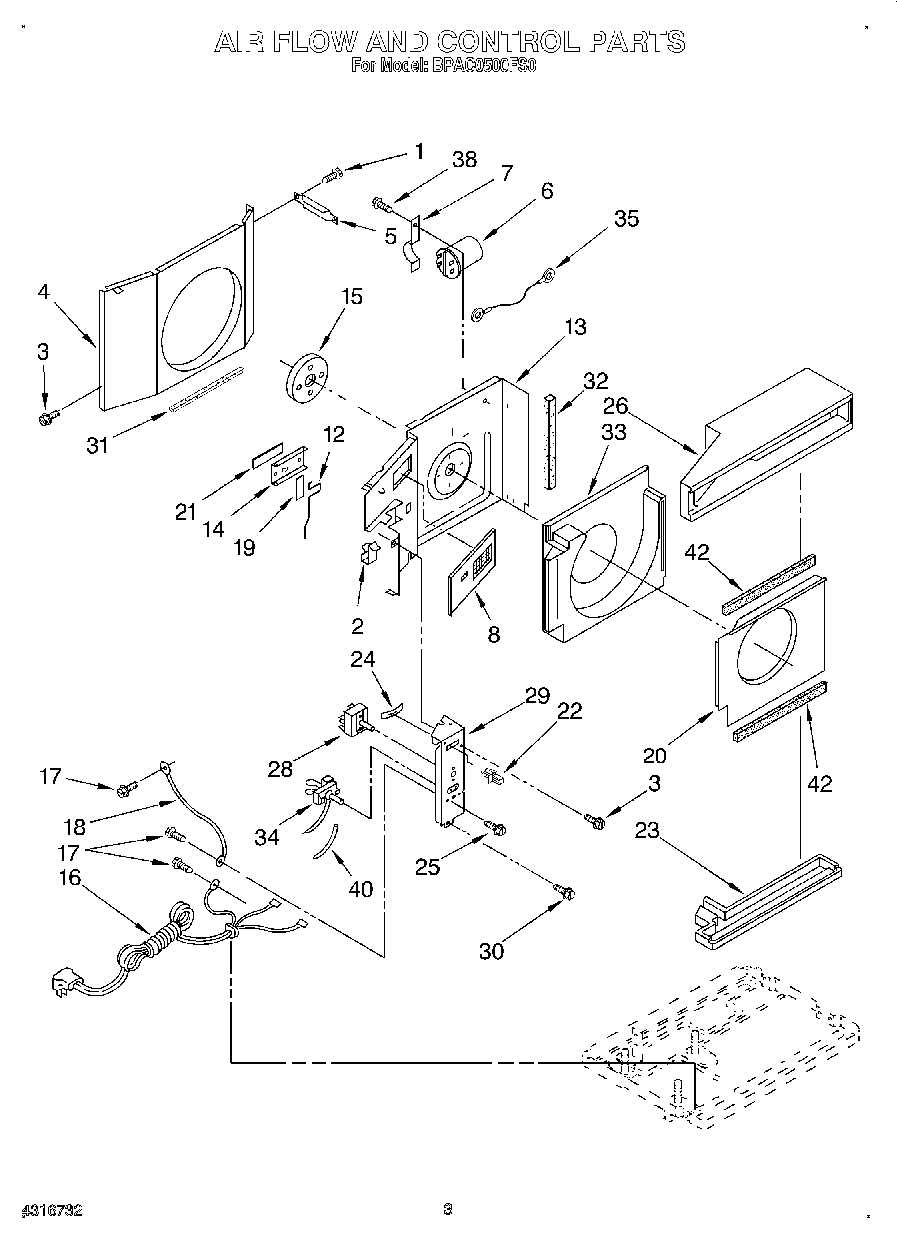

BPAC0500FS0 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	WP1163283 Whirlpool Air Conditioner Screw
2	Clamp, Wiring
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Screen/Insul. Assembly
12	Arm, Exhaust Door
13	Wall, Dividing
14	Door, Exhaust
15	Insulation, Motor
16	Cord, Appliance
17	Screw 8-18 x .295
18	Wire, Ground
19	Spacer
20	Shroud, Evaporator
21	Barrier Protective
22	Actuator, Door
23	Pan, Evaporator
24	Spring, Retainer
25	Screw, 6-32 x .175
26	Hood, Air Housing
28	Switch, Rotary
29	Panel, Control
30	Screw, 8-18 x 3/8
32	WP854334 Whirlpool Air Conditioner Sealing Strip
33	Housing, Air
34	Control, Temperature
35	Wire, Lead
38	Screw, 8 x 3/8
40	Insulation, Sleeve
42	Seal (2)
