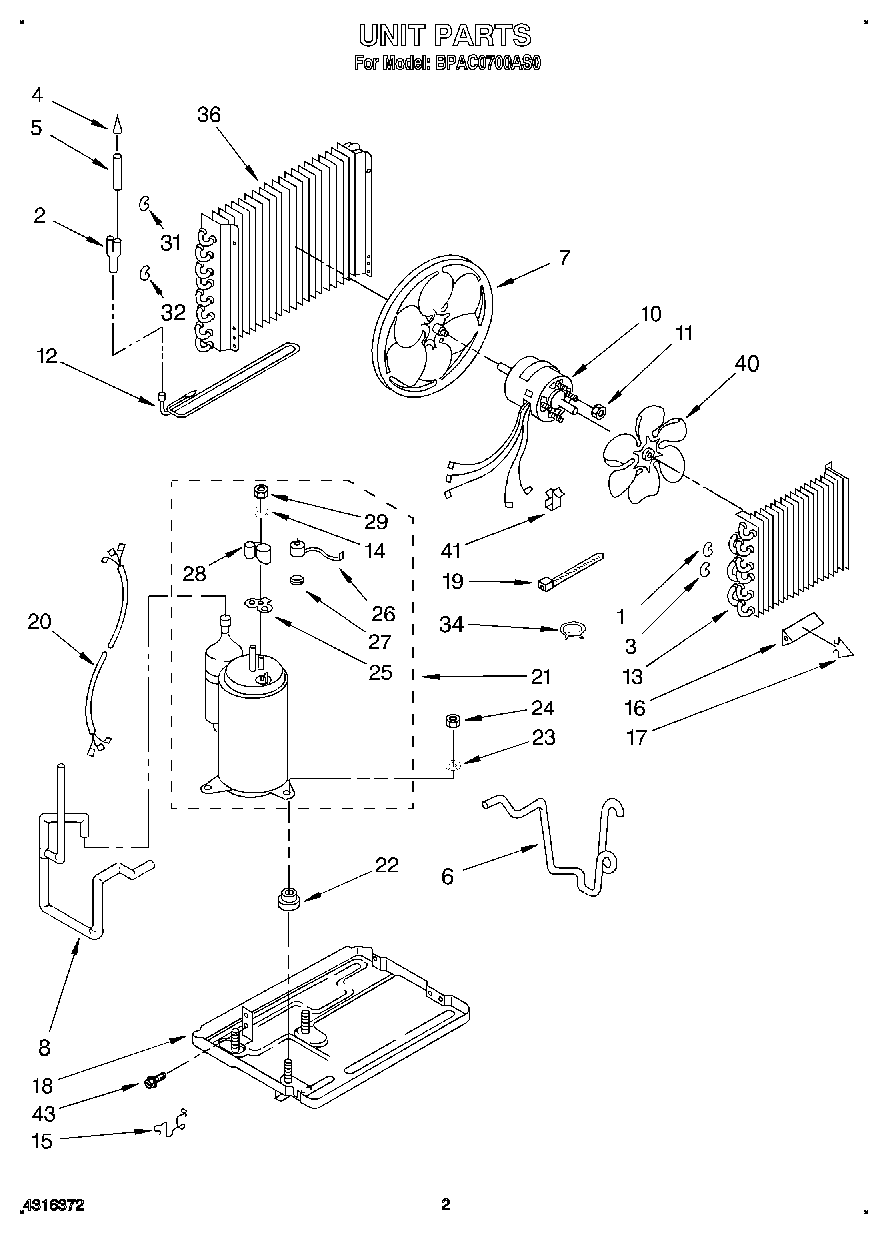

BPAC0700AS0 02 – UNIT, LITERATURE

Products

Position	Product
	Wiring Diagram
	Repair Parts List
	Instructions, Installation
	Guide Operation
	Tech Sheet
1	Bend, Return Evaporator (11)
2	Tube, Flow Divider
3	Bend, Return Evaporator (4)
4	Strainer
5	Tube & Strainer (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan
8	Tube, Suction
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Condenser Extension
13	Evaporator
14	Gasket, Nut
15	Clip, Mtg. (2) (Base to Front)
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	WPW10339879 Whirlpool Wire Tie
20	Harness, Wiring
21	Compressor
22	Grommet
23	WP120393 Whirlpool Washer Assembly
24	Nut, Hex (4)
25	WP950035 Whirlpool Cover Gasket
26	WP1161170 Whirlpool Air Conditioner Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
31	Bend, Return Condenser (4)
32	Bend, Return Condenser (10)
34	Clamp, Tube (2)
36	Condenser
40	Blade, Fan
41	Clamp, Wiring
43	WP489069 Whirlpool Compactor Screw
