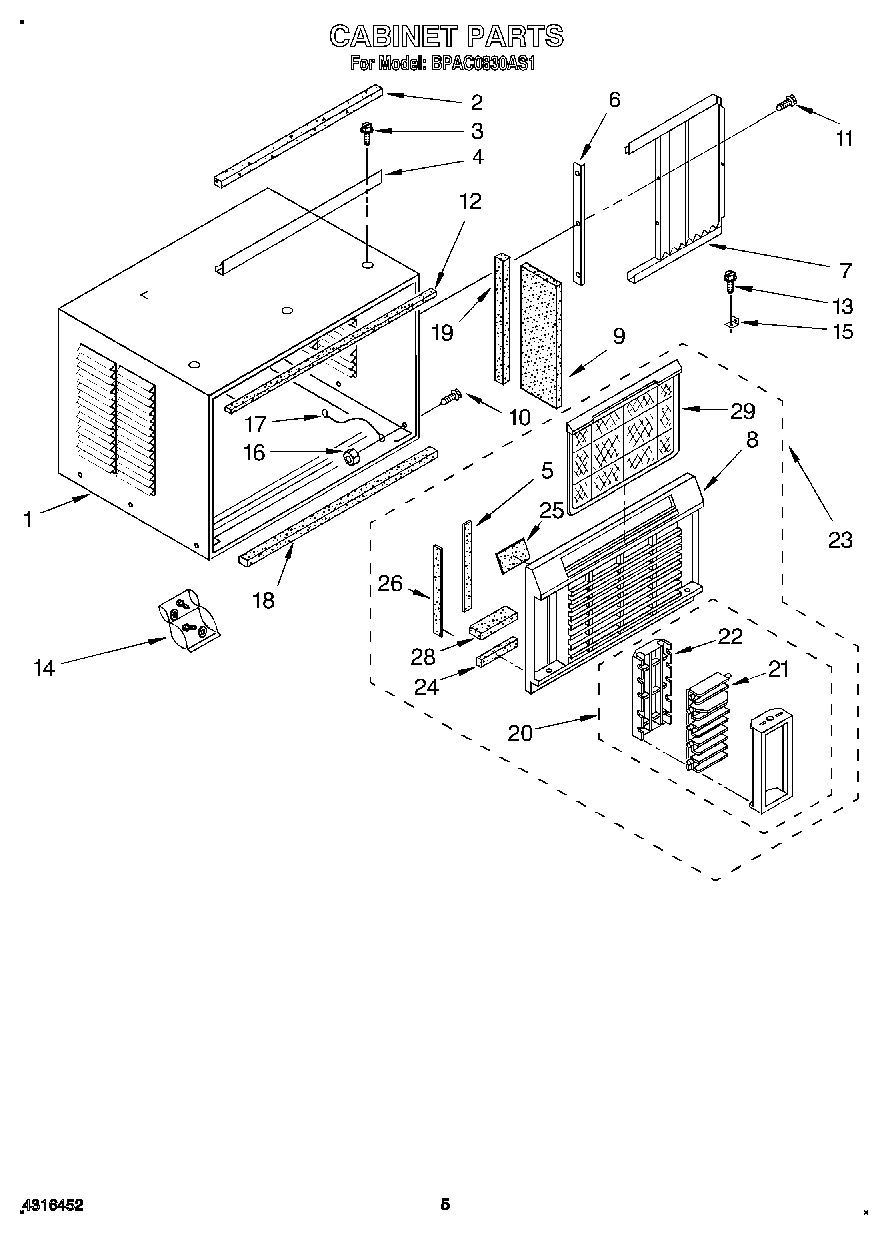

BPAC0830AS1 03 – CABINETSadmin2025-04-26T12:07:32+00:00BPAC0830AS1 03 – CABINETS
Products
| Position | Product |
|---|
| 1 | Cabinet |
| 2 | Gasket, Meeting Rail |
| 3 | WP489069 Whirlpool Compactor Screw |
| 4 | Chanel, Top |
| 5 | Seal, Side (2) |
| 6 | Retainer, Curtain |
| 7 | Curtain (L.S.) |
| 7 | Curtain (R.S.) |
| 8 | Cabinet Front |
| 9 | Insulation (2) |
| 10 | Screw, 8 x 3/8 |
| 11 | Screw, 8-18 x 3/8 |
| 12 | Seal, Cabinet Top |
| 13 | Screw, Wood 8-15 x .750 |
| 14 | Accessory, Bag |
| 15 | Bracket |
| 16 | WP486255 Whirlpool Air Conditioner Nut |
| 17 | Wire, Ground |
| 18 | Seal |
| 19 | Seal, Strip (2) |
| 20 | Cartridge, Complete |
| 21 | Horizontal Louver |
| 22 | Ribs, Vertical |
| 23 | Front, Complete |
| 24 | Seal, (2) |
| 25 | Seal, Front |
| 26 | Seal, Front - Sides (2) |
| 28 | Seal, Front |
| 29 | Filter |
