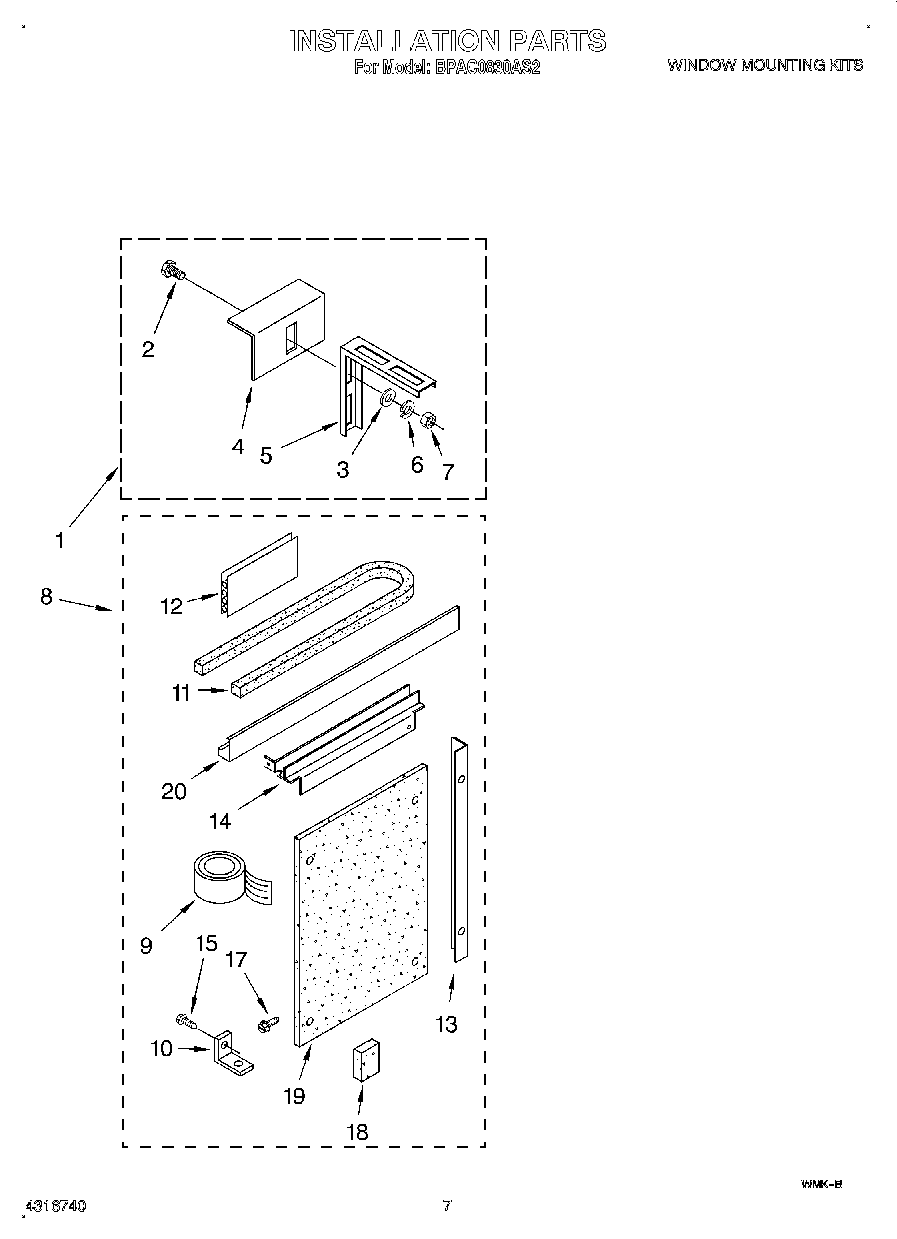

BPAC0830AS2 05 – INSTALLATION

Written by

Products

Position	Product
	Instructions, Installation (Outside Sill Kit)
	Instructions, Installation
1	Kit, Outside Sill Bracket
2	Bolt, 1/4 x 3/4 (6)
3	WP120393 Whirlpool Washer Assembly
4	Bracket, Sill Mounting (2)
5	Bracket, Rail Support (2)
6	Lockwasher (6)
7	Nut, 1/4-20 (6)
8	Kit, Standard Installation
9	Strip, Seal
10	Bracket
11	Seal, Meeting Rail
12	212643 Whirlpool Refrigerator Permagum Sealer
13	Angle (2)
14	Bracket, R.S.
14	Bracket, L.S.
15	Screw, Wood
17	WP965173 Whirlpool Dishwasher Screw
18	Spacer, Block (4)
19	Board, Filler
20	Angle, Top
20	Kit, Wide Window
20	Curtain Kit, Standard Mounting
