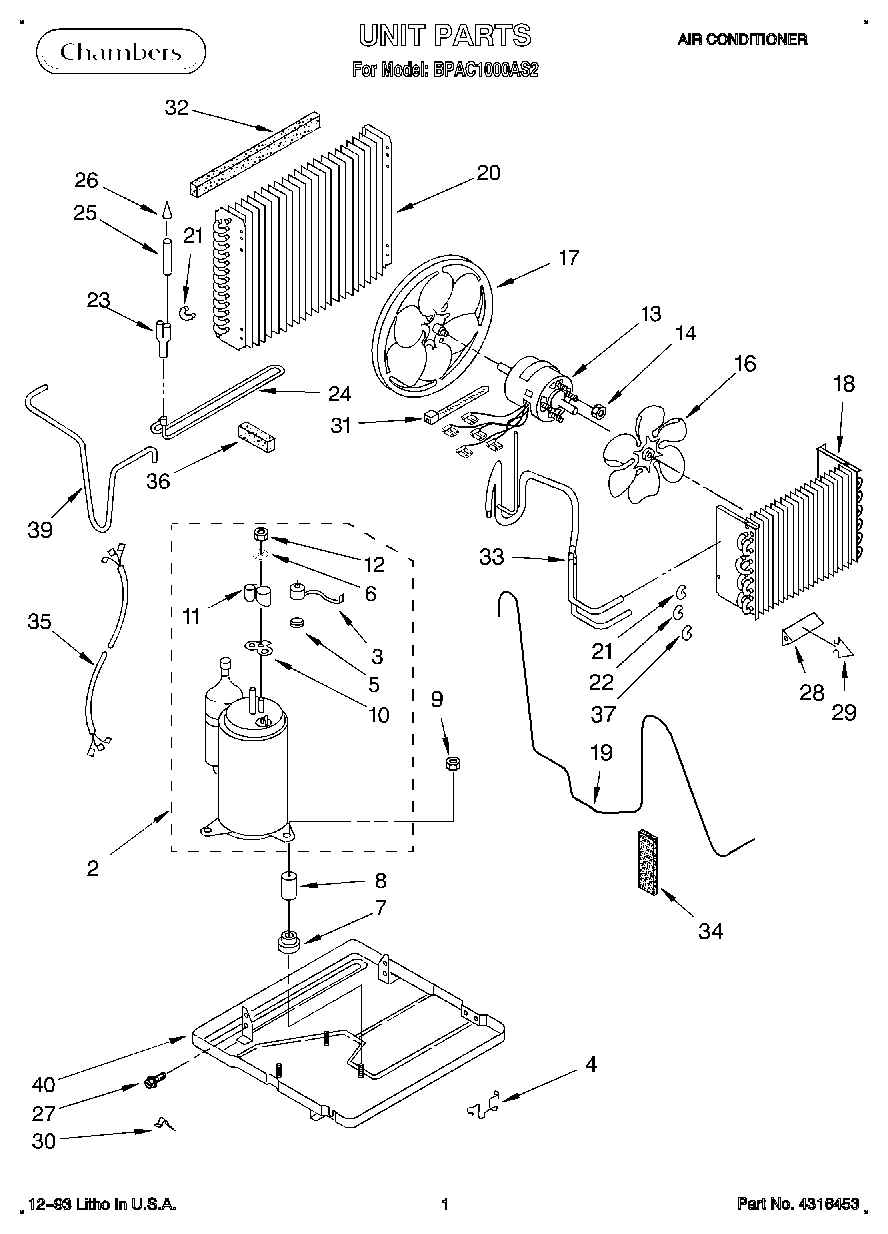

BPAC1000AS2 01 – UNIT, LITERATURE

Products

Position	Product
	Guide, Operation
	Instructions, Installation
	Tech Sheet
	Wiring Diagram
2	Compressor
3	Overload
4	Clip, Mtg. (2) (Base to Front)
5	Spring, Overload
6	Gasket, Nut
7	WP950021 Whirlpool Grommet
8	Sleeve (3)
9	Locknut (3)
10	WP950035 Whirlpool Cover Gasket
11	WP950036 Whirlpool Cover Assembly
12	WP950027 Whirlpool Mounting Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
16	Blade, Fan (Condenser)
17	Blade, Fan (Evaporator)
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	Bend, Return Condenser (4)
22	Bend, Return Condenser (10)
23	Tube, Flow Divider
24	Tube, Condenser Extension
25	Tube, Outlet (Includes No. 26)
26	Strainer
27	WP489069 Whirlpool Compactor Screw
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp, Restrictor Tube
31	WPW10339879 Whirlpool Wire Tie
32	Seal, Condenser Top
33	Tube, Suction
34	Seal, Anti-Rub
35	Harness, Wiring
36	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Bend, Return Condenser (1)
39	Tube, Discharge
40	Base
