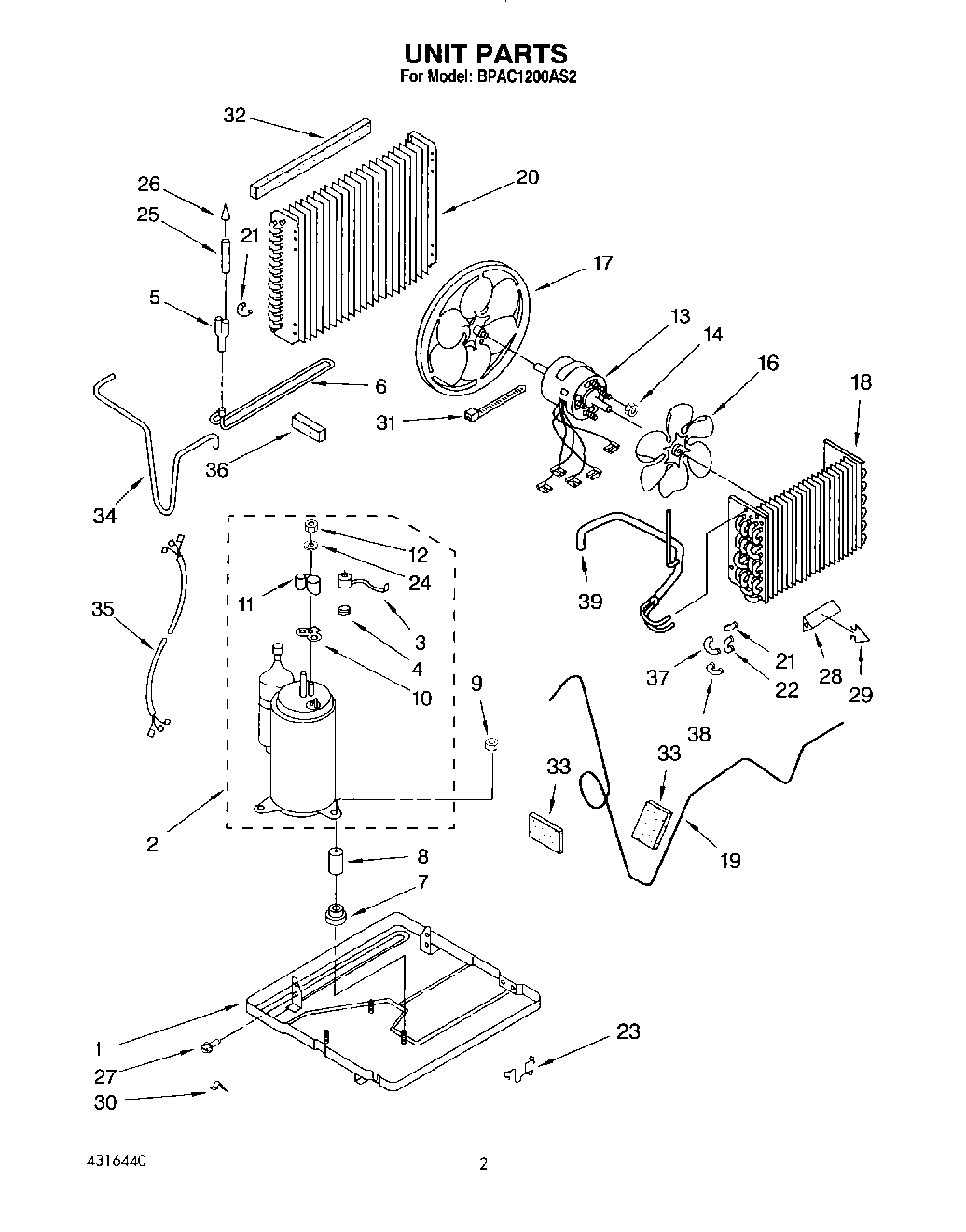

BPAC1200AS2 02 – UNIT, LITERATURE

Products

Position	Product
	Guide, Operation
	Wiring Diagram
	Sheet, Tech
	Instructions, Installation
1	Base
2	Compressor
3	Overload (Production)
4	Spring, Overload
5	Tube, Flow Divider
6	Tube, Condenser Extension
7	WP950021 Whirlpool Grommet
8	Sleeve (3)
9	Locknut (3)
10	WP950035 Whirlpool Cover Gasket
11	WP950036 Whirlpool Cover Assembly
12	WP950027 Whirlpool Mounting Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
16	Blade, Fan (Evaporator)
17	Blade, Fan (Condenser)
18	Evaporator
19	Tube, Restrictor (2)
20	Condenser
21	Bend, Return Condenser (10)
22	Bend, Return Condenser (4)
23	Clip, Mtg. (2) (Base to Front)
24	Gasket, Nut
25	Tube, Outlet (Includes Illus. 24)
26	Strainer
27	WP489069 Whirlpool Compactor Screw
27	Screw, Repair
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp, Restrictor Tube
31	WPW10339879 Whirlpool Wire Tie
32	Seal, Condenser Top
33	Seal, Anti-Rub
34	Tube, Discharge
35	Harness, Wiring
36	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Bend, Return Condenser (1)
38	Bend Return
39	Tube, Suction
