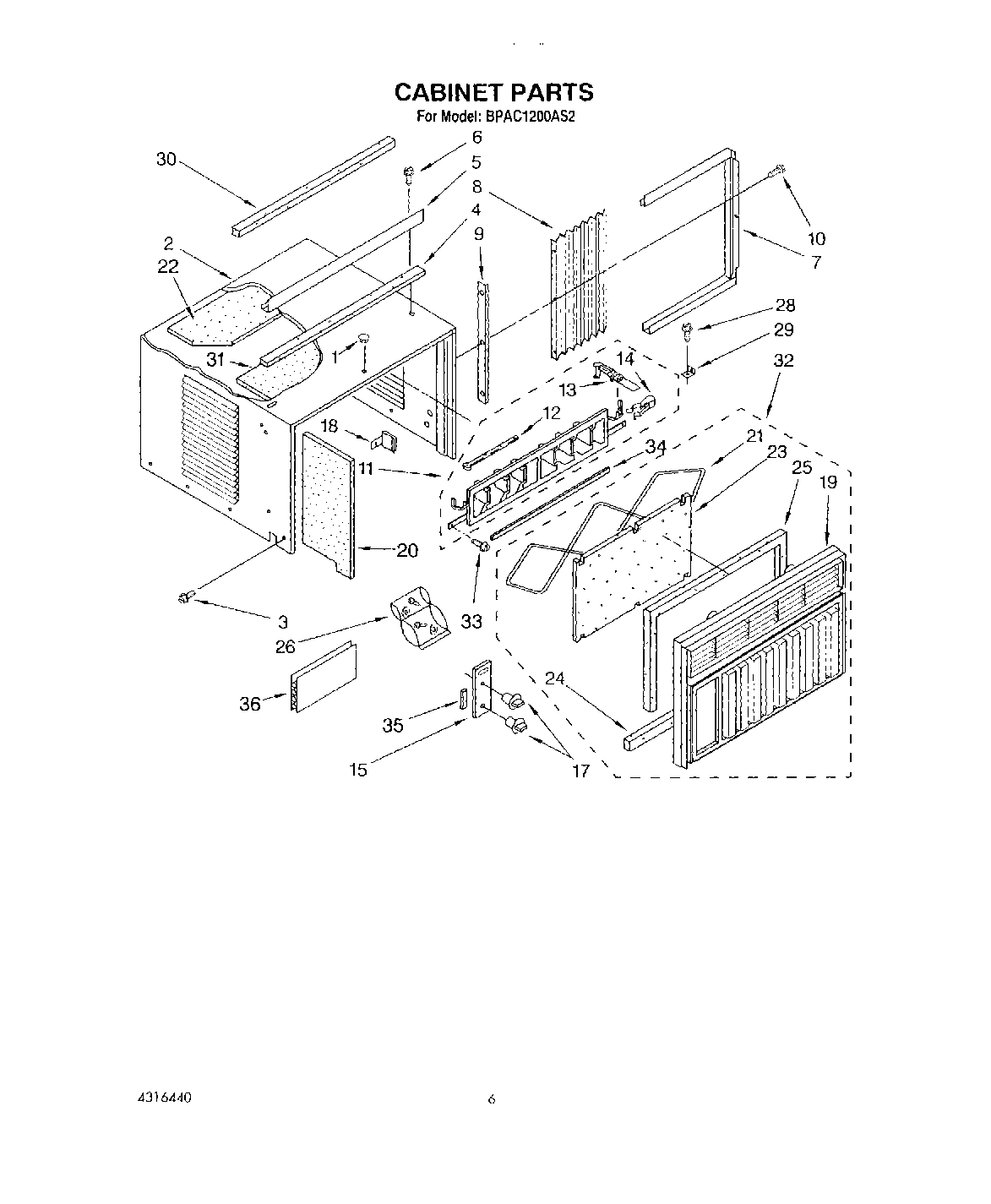

BPAC1200AS2 04 – CABINET

Products

PositionProduct
1Cover, Hole
2Cabinet
3WP489069 Whirlpool Compactor Screw
4Strip, Seal
5Channel, Top Mounting
6WP308685 Whirlpool Microwave Screw
7Housing, Curtain R.S.(Includes No.8)
7Housing, Curtain L.S. (Includes No.8)
8Curtain (2)
9Retainer, Curtain
10Screw, 8-18 x 3/8
11Louver, Vertical (Includes Illus. 12, 13, 14 and 27)
12Link, Vertical Louver (2)
13Handle, Vertical Louver (2)
14Spring, Detent (2)
15Plate, Escutcheon
17Knob, Control (2)
18Clip, Vertical Louver
19Front
20Insul. Cabinet (Right, Side)
20Insul. Cabinet (Left Side)
21Retainer, Filter
22Insul. Cabinet Top
23Filter
24Seal, Front
25Seal, Top & Sides
26Bag, Accessory
28Screw, Wood 8-15 x .750
29Bracket
30Gasket, Meeting Rail
31Insul. Cabinet
32Front, Cabinet
33Screw 8-18 x .295
34Seal, Vertical Louver
35Spacer, Escutcheon Plate (3)
36212643 Whirlpool Refrigerator Permagum Sealer
