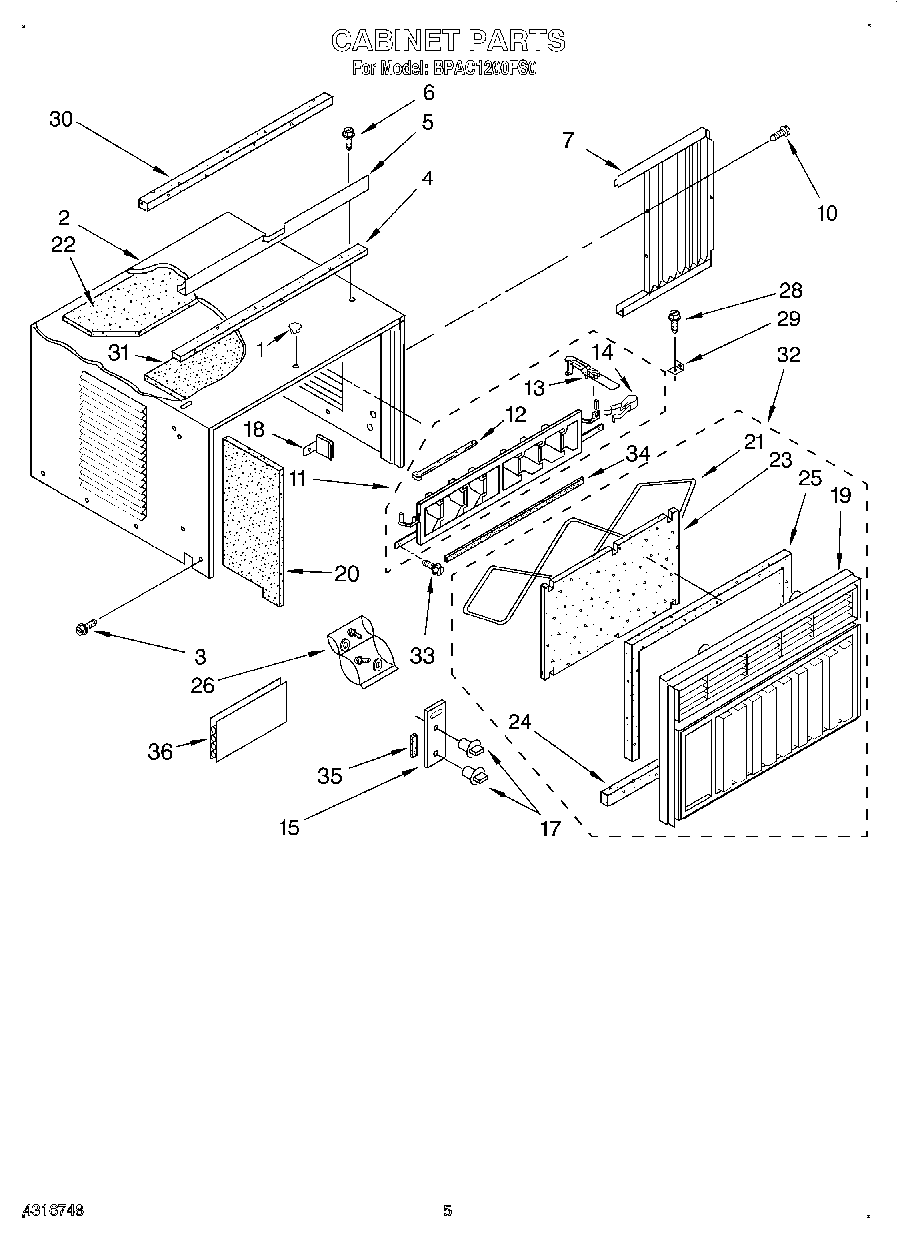

BPAC1200FS0 03 – CABINET

Products

PositionProduct
1Cover, Hole
2Cabinet
3WP489069 Whirlpool Compactor Screw
4Strip, Seal
5Channel, Top
6WP308685 Whirlpool Microwave Screw
7Housing, Curtain R.S.(Includes No.8)
7Housing, Curtain L.S. (Includes No.8)
10Screw, 8-18 x 3/8
11Louver, Vertical
12Link, Vertical Louver (2)
13Handle, Vertical Louver (2)
14Spring, Detent (2)
15Plate, Escutcheon
17Knob, Control (2)
18Clip, Vertical Louver
19Front, Cabinet
20Insul. Cabinet (Left Side)
20Insul. Cabinet (Right, Side)
21Retainer, Filter
22Insul. Cabinet Top
23Filter
24Seal, Cabinet Front
25Seal, Top & Sides
26Bag, Accessory
28Screw, Wood 8-15 x .750
29Bracket
30Gasket, Meeting Rail
31Insul. Cabinet
32Front, Complete
33Screw 8-18 x .295
34Seal, Vertical Louver
35Spacer, Escutcheon Plate (3)
36212643 Whirlpool Refrigerator Permagum Sealer
