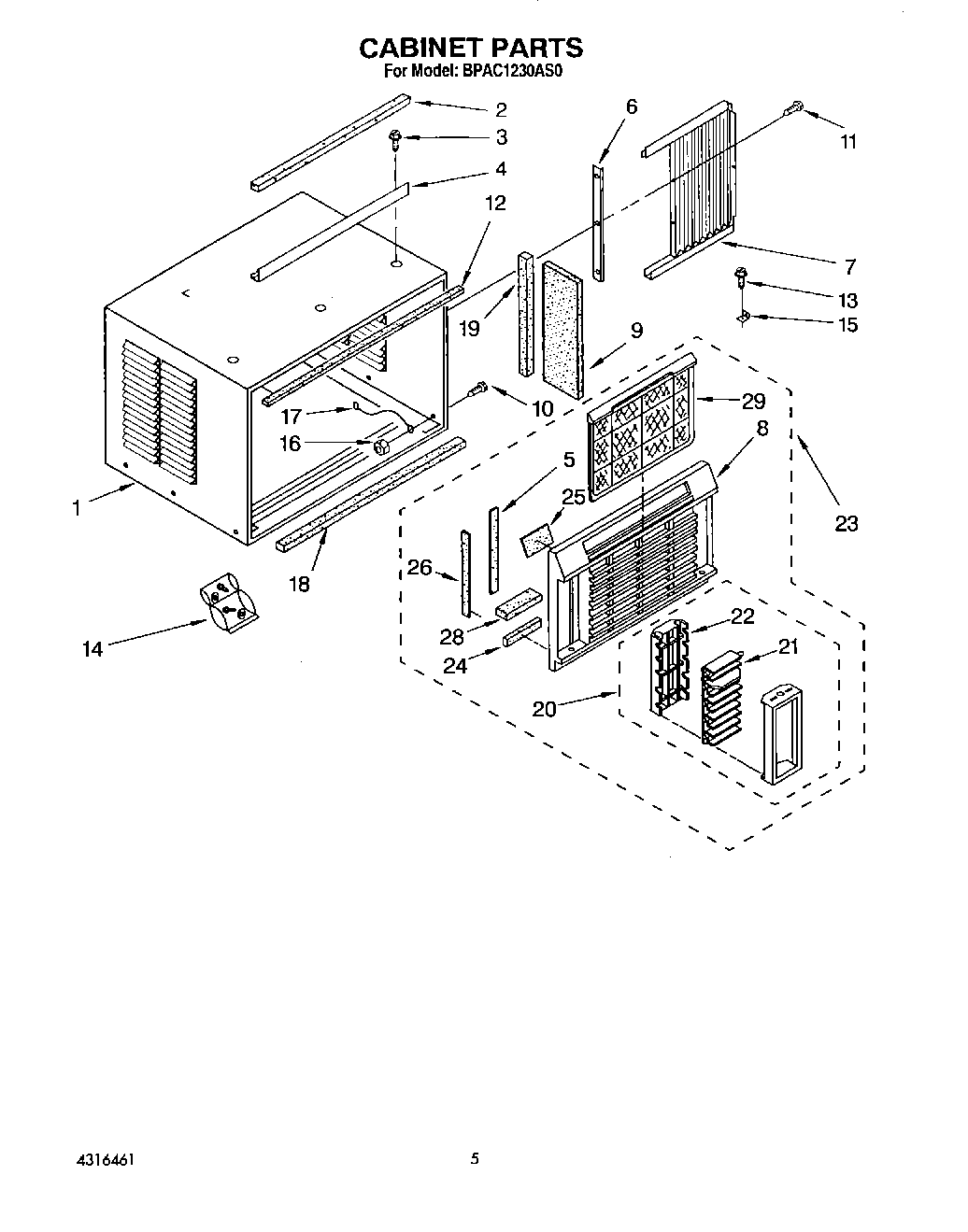

BPAC1230AS0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
4	Chanel, Top
5	Seal, Side (2)
6	Retainer, Curtain
7	Curtain (L.S.)
7	Curtain (R.S.)
8	Cabinet Front
9	Insulation (2)
10	Screw, 8 x 3/8
11	Screw, 8-18 x 3/8
12	Seal, Cabinet Top
13	Screw, Wood 8-15 x .750
14	Accessory, Bag
15	Bracket
16	WP486255 Whirlpool Air Conditioner Nut
17	Wire, Ground
18	Seal
19	Seal, Strip (2)
20	Cartridge, Complete
21	Horizontal Louver
22	Ribs, Vertical
23	Front, Assembly
24	Seal, (2)
25	Seal, Front
26	Seal, Front – Sides (2)
28	Seal, Front
29	Filter
