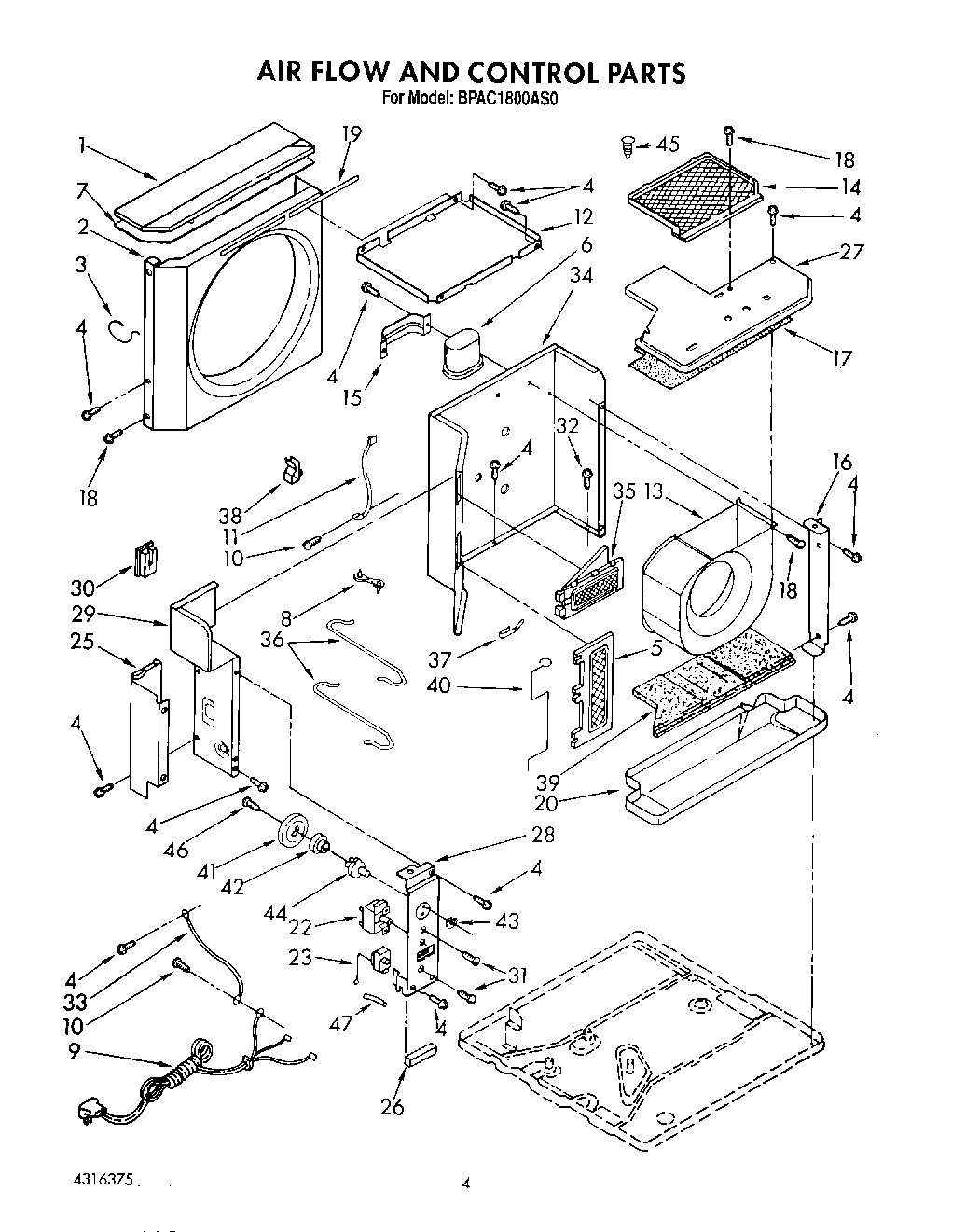

BPAC1800AS0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Cover, Condenser Shroud
2	Shroud, Condenser
3	Clip, Shroud (2)
4	WP489069 Whirlpool Compactor Screw
4	WP308685 Whirlpool Microwave Screw
5	Door, Fresh Air
6	Capacitor, Running
7	Seal, Condenser Fin
8	Clamp, Cable
9	Cable
10	WPW10141604 Whirlpool Screw
11	Wire, Ground (2)
12	Support, Unit
13	Housing, Blower Wheel
14	Guard, Impeller
15	Bracket (Lower)
16	Adapter, Evaporator Header Plate
17	Insulation, Evaporator Cover
18	WP488729 Whirlpool Refrigerator Door Screw
19	seal, strip (shroud) (side)
19	WP854334 Whirlpool Air Conditioner Sealing Strip
20	Pan, Condensate (Includes No.49)
22	Switch, Rotary
23	Switch, Thermostat
25	Cover, Controls
26	Seal
27	Cover, Evaporator
28	Panel, Control
29	Extension Divding Wall
30	Seal, Tube
31	Screw, 6-32 x .175
32	Screw, 8 x 3/8
33	Ground Wire
34	Wall, Dividing
35	Door, Exhaust
36	Wire, Control (Fresh Air)
36	Wire, Control
37	Spring, Door
38	Clamp, Cable
39	Insulation, Base
40	Actuator, Door
41	Cam, Exhaust
42	Bushing, Shaft
43	Washer
44	Shaft, Control
45	Christmas Tree (2)
46	Screw, 7-18 x 5/8
47	Insulation, Sleeve
