BPAC1800BS0 03 – CABINETS

BPAC1800BS0 03 – CABINETS

Written by

in

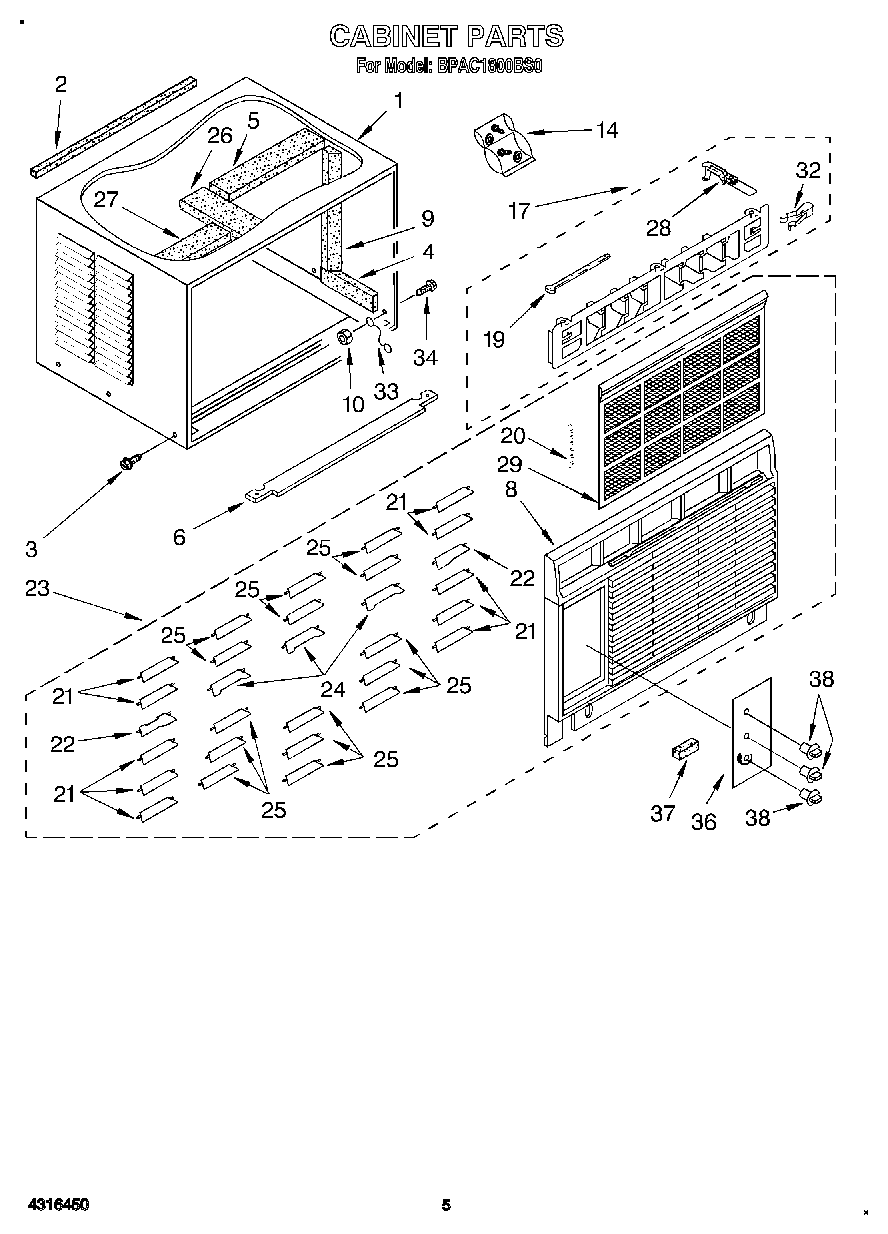

BPAC1800BS0 03 – CABINETS

Products

PositionProduct
1Cabinet (Includes Insulation)
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
4Insulation, Cabinet Side (2)
5Insulation, Cabinet
6Seal
8Cabinet Front
9Insulation, Cabinet Side (2)
10WP486255 Whirlpool Air Conditioner Nut
14Bag, Accessory
17Vertical, Louver
19Link, Vertical Louver (2)
20Link, Horizontal Louver (5)
21Louver, Horizontal (10)
22Horzontal Louver W/ Handle (2)
23Front, Complete
24Louver, Horizontal W/Handles (3)
25Louver, Horizontal (15)
26Insulation, Cabinet
27Insulation, Cabinet
28Louver, Actuator
29Filter
32Detent Spring (2)
33Wire, Ground
34WP488234 Whirlpool Air Conditioner Screw
36Plate, Escutcheon
37Spacer, Escutcheon Plate (3)
38Knob, Control (2)
