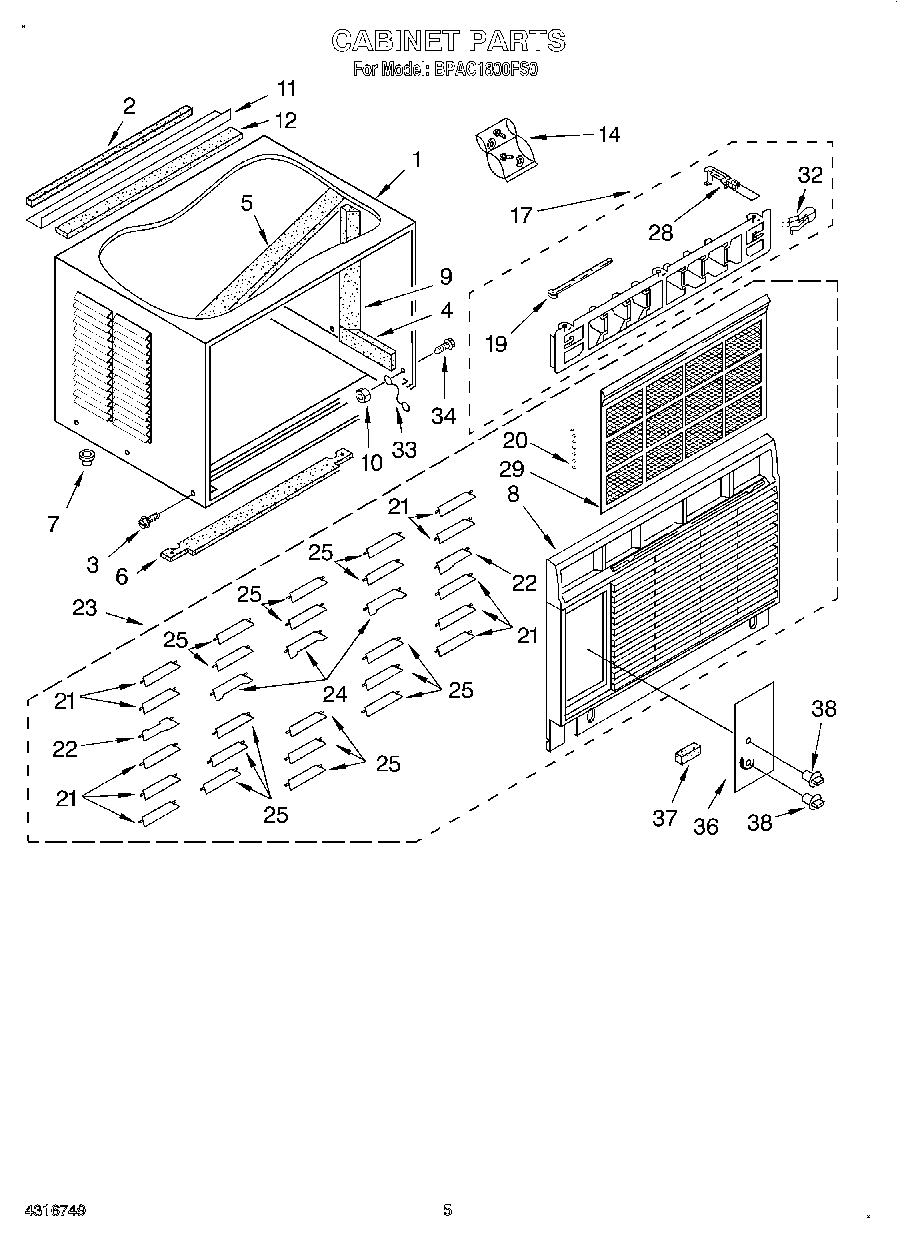

BPAC1800FS0 03 – CABINET

BPAC1800FS0 03 – CABINET

Written by

in

BPAC1800FS0 03 – CABINET

Products

PositionProduct
1Cabinet (Includes Insulation)
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
4Insulation, Cabinet Side (2)
5Insulation, Cabinet (Top)
6Seal
7Cup, Condensate Drain
8Frame, Front
9Insulation, Cabinet Side (2)
10WP486255 Whirlpool Air Conditioner Nut
11Angle, Top Mounting
12Seal, Top Mounting Angle
14Bag, Accessory
17Louver, Verticle
19Link, Vertical Louver (2)
20Link, Horizontal Louver (5)
21Louver, Horizontal (10)
22Louver, Horizontal W/Handle (2)
23Front, Complete
24Louver, Horizontal W/Handles (3)
25Louver, Horizontal (15)
28Louver, Actuator
29Filter
32Spring, Detent
33Wire, Ground
34WP488234 Whirlpool Air Conditioner Screw
36Plate, Escutcheon
37Spacer, Escutcheon Plate (3)
38Knob, Control (2)
