BPDH2500AS0 02 – UNIT, LITERATURE

BPDH2500AS0 02 – UNIT, LITERATURE

Written by

in

BPDH2500AS0 02 – UNIT, LITERATURE

Products

Position	Product
	Sheet, Tech
	List, Repair Parts
	WPL LIT1162709
	Wiring Diagram

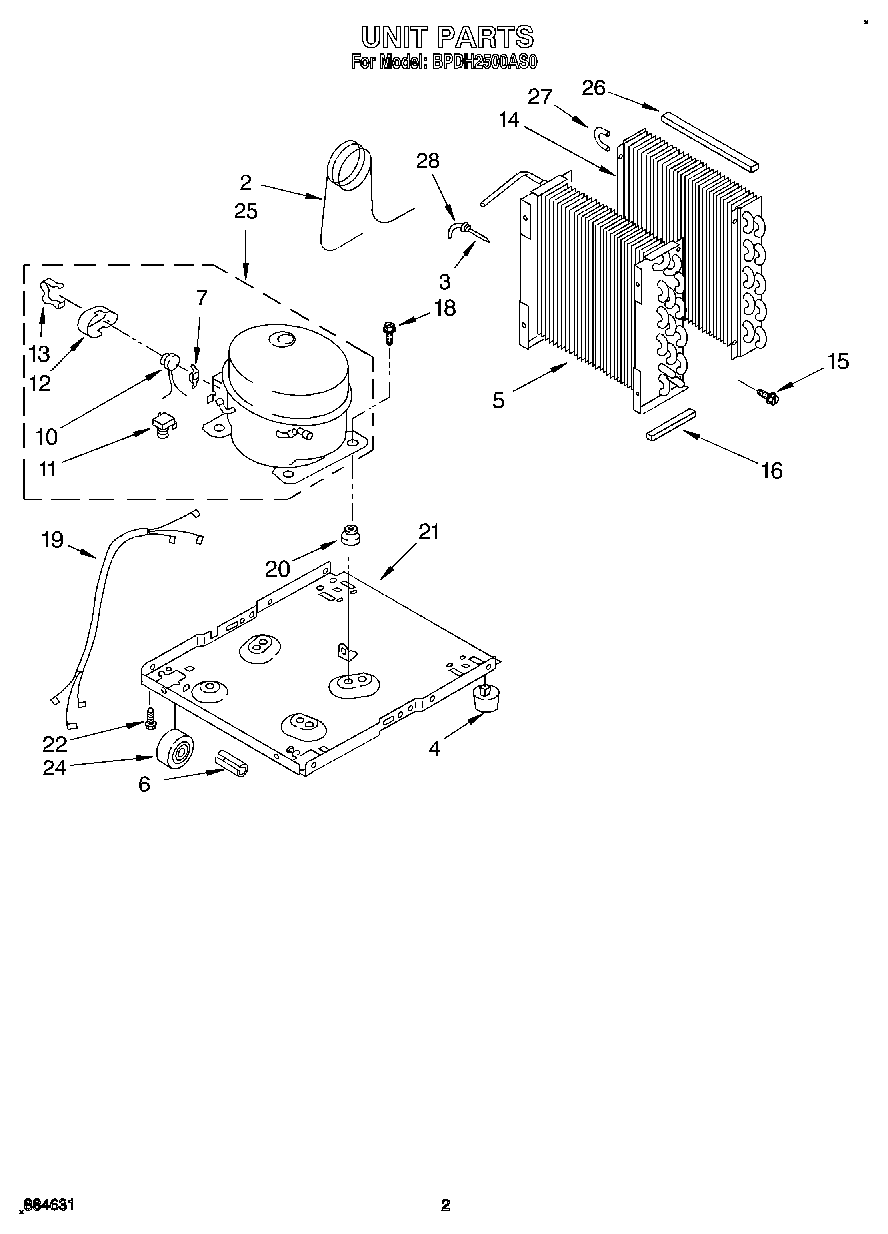

2	Tube, Restrictor (Length 36.00“)
3	Strainer
4	Glide (2)
5	Condenser
6	Pin, Roller (2)
7	Spring, Overload
10	Overload
10	Overload (Service)
11	Relay
11	Relay, Start
12	Cover, Terminal (Production)
12	WPL 865086
13	Strap
13	Retainer, Cover (Service)
14	Evaporator
15	Screw, 8 x 3/8
16	Seal
18	Screw, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	WPW10141604 Whirlpool Screw
24	Roller (2)
25	WPL 1157552
26	Seal, Evaporator Top
27	Bend, Return Evaporator (4)
28	Bend, Return Evaporator (11)
