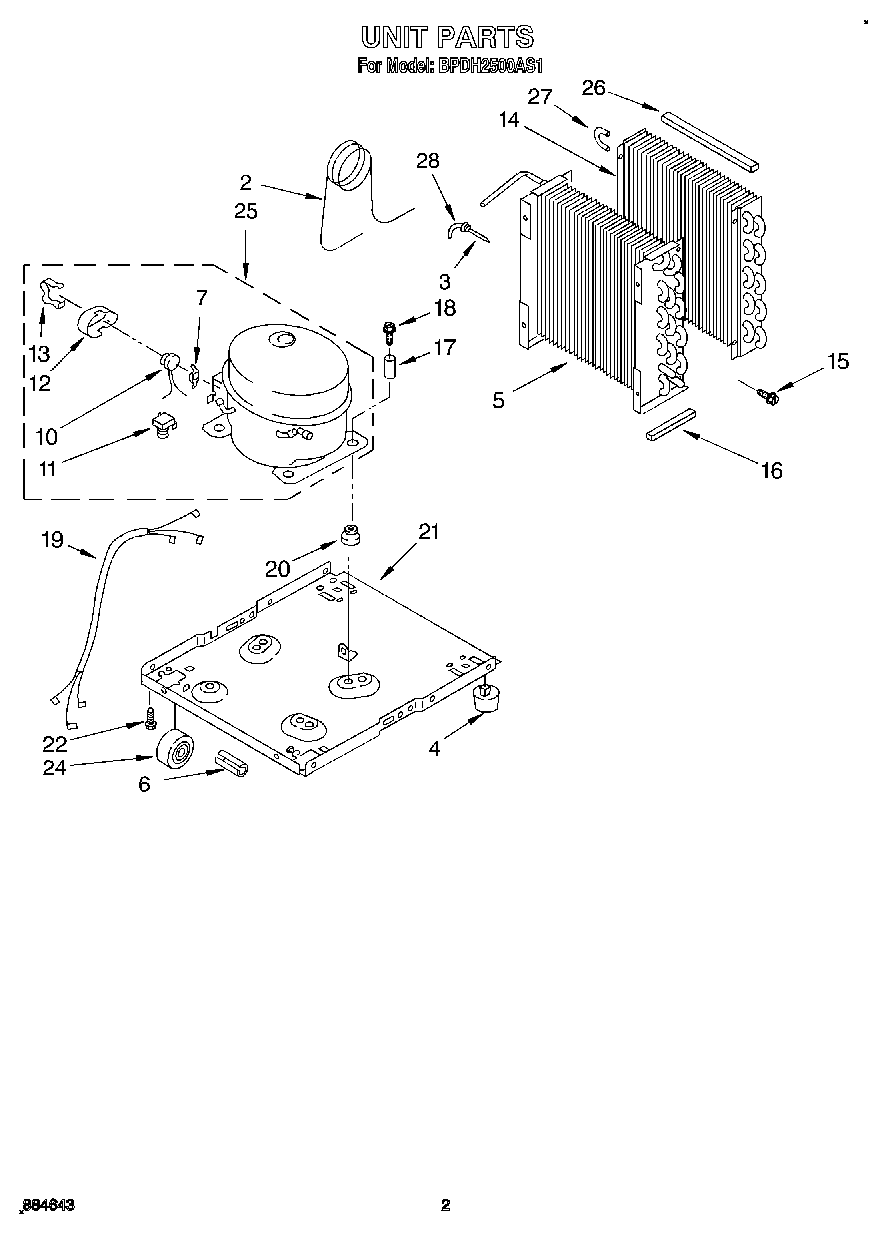

BPDH2500AS1 02 – UNIT

Products

Position	Product
	WPL LIT1162709
	WPL LIT1164210
	WPL LIT1164212
2	Tube, Restrictor (36.00“ Length)
3	Strainer
4	Glide (2)
5	Condenser
6	Pin, Roller (2)
7	Spring, Overload
10	OverLoad (Service)
10	Overload
11	Relay (Service)
11	Relay, Start (Production)
12	Cover, Terminal
12	Retainer, Cover (Service)
13	Spring, Overload
13	Retainer, Cover
14	Evaporator
15	Screw, 8 x 3/8
16	Seal
17	Sleeve (4)
18	Bolt, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	WPW10141604 Whirlpool Screw
24	Roller (2)
25	Compressor, (Complete Assembly)
26	Seal, Evaporator Top
27	Bend, Return Evaporator (4)
28	Bend, Return Evaporator (11)
