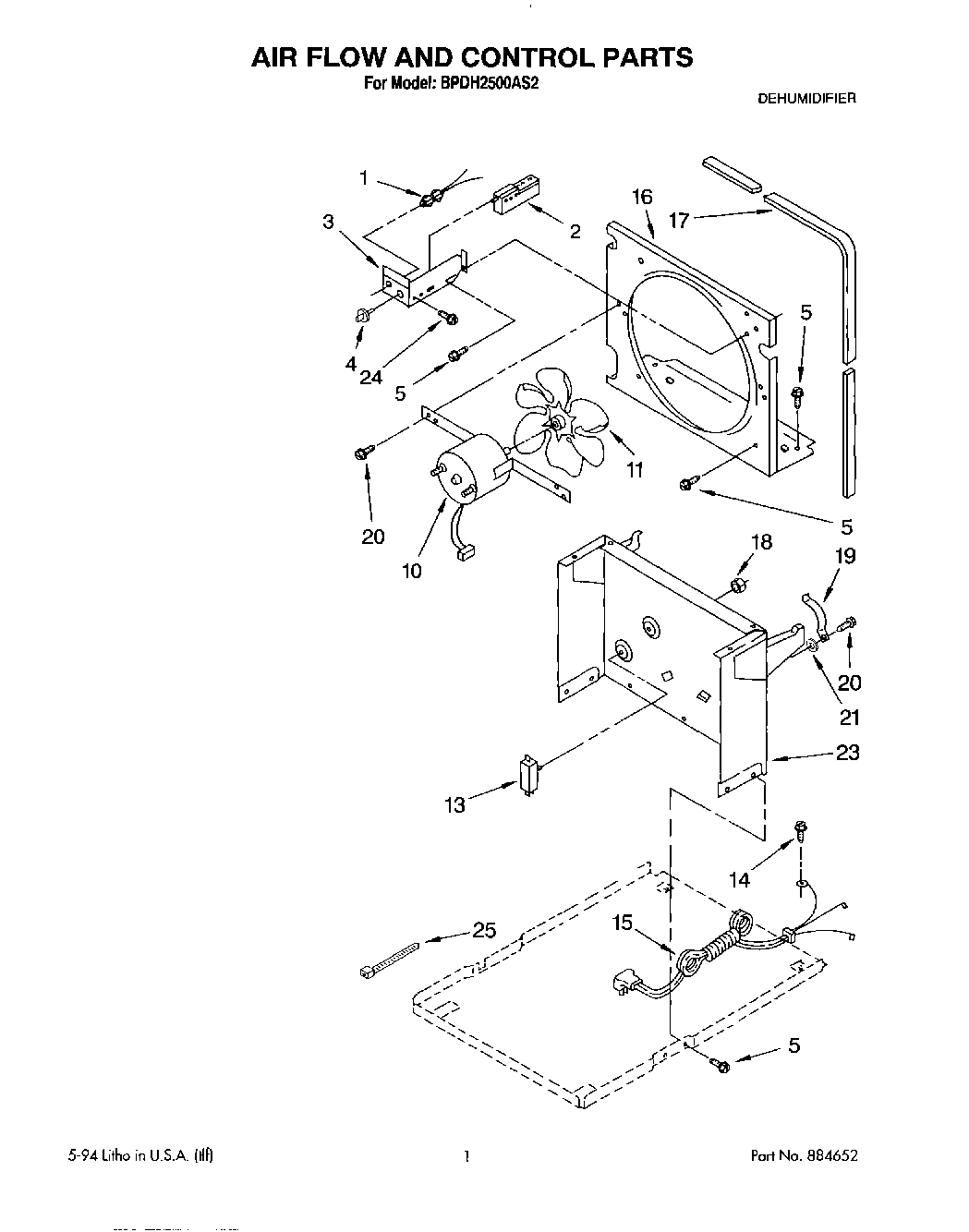

BPDH2500AS2 01 – SECTION

Products

Position	Product
1	Light, Indicator
2	Humidistat, Control
3	Bracket, Humidistat
4	WPL 1162670
5	WP489069 Whirlpool Compactor Screw
10	Motor, Fan
11	Blade, Fan
13	Switch, Water Level Control
14	WPW10141604 Whirlpool Screw
15	Cord, Appliance
16	Plate, Orifice
17	Seal
18	Palnut, 3/8-32
19	Spring, Water Level
20	WP488163 Whirlpool Refrigerator Screw
21	Washer (Repair) (.062 Thickness)
21	Washer, Repair (.045 Thickness)
23	Support
24	WP3177991 Whirlpool Screw
25	WPW10339879 Whirlpool Wire Tie
