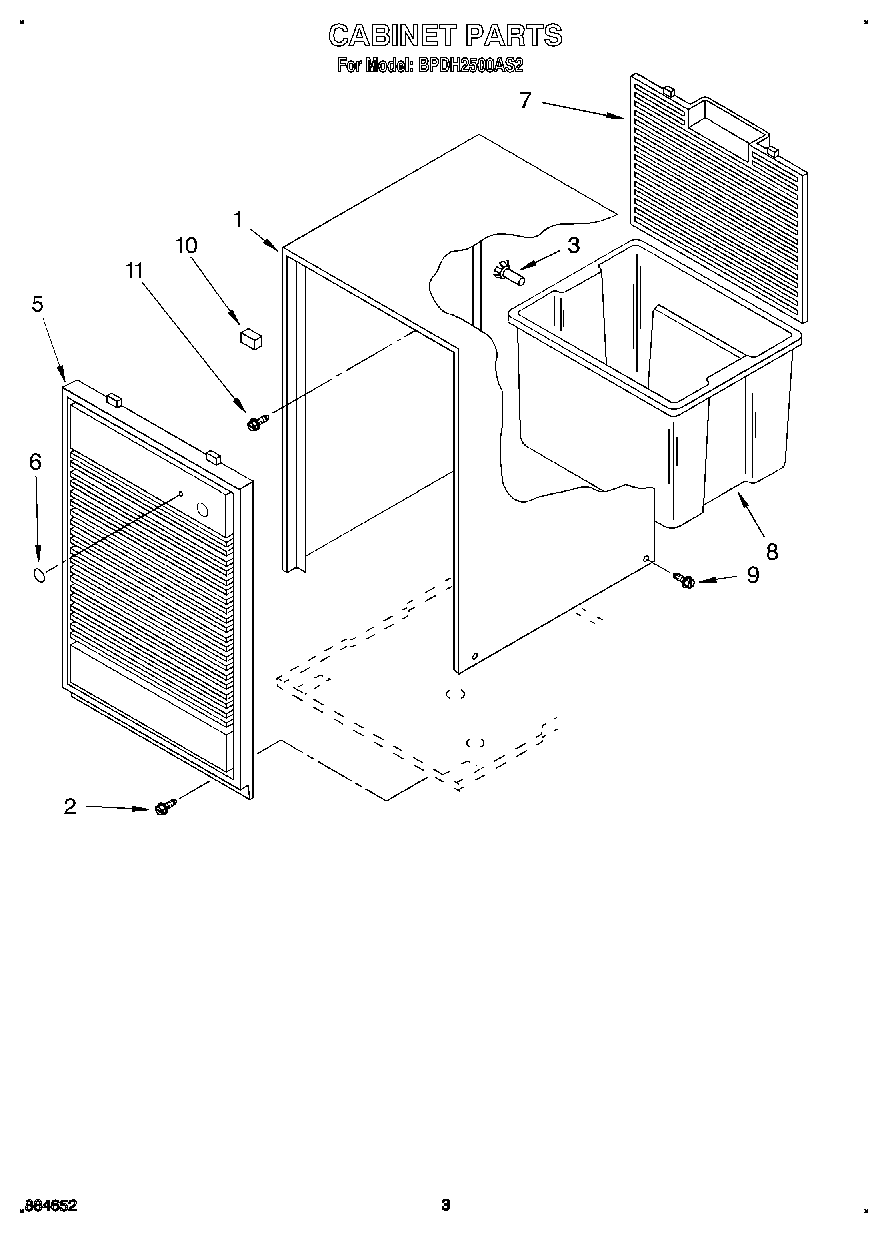

BPDH2500AS2 03 – SECTION

Written by

Products

Position	Product
	WPL LIT1166033
	WPL LIT1166032
	WPL LIT1162709
1	Cabinet
2	WPW10141625 Whirlpool Refrigerator Screw Assembly
3	Retainer Pin (Rear Grille)
5	Grille, Front
6	Lens, Light
7	Grille, Rear
8	Pan, Condensate
9	Screw
10	Spacer, Grille
11	Cap, Condensate Pan
11	Seal, Ring (Access Valve) (20 – Pack)
11	WP16123 Whirlpool Washer
11	WP488729 Whirlpool Refrigerator Door Screw
11	978026 Whirlpool Refrigerator Primary Valve
11	978027 Whirlpool Refrigerator Primary Valve
11	978030 Whirlpool Refrigerator Valve
11	WP978025 Whirlpool Refrigerator Valve
11	VALVE, ACCESS (1/2“)
11	Kit, Evaporator Repair (Aluminum Epoxy)
11	Lacquer, Starlight Gray (1/2 Pt. Uncut)
11	No Drip Tape (For Sweating Tubes)
11	VALVE, ACCESS (5/8“)
