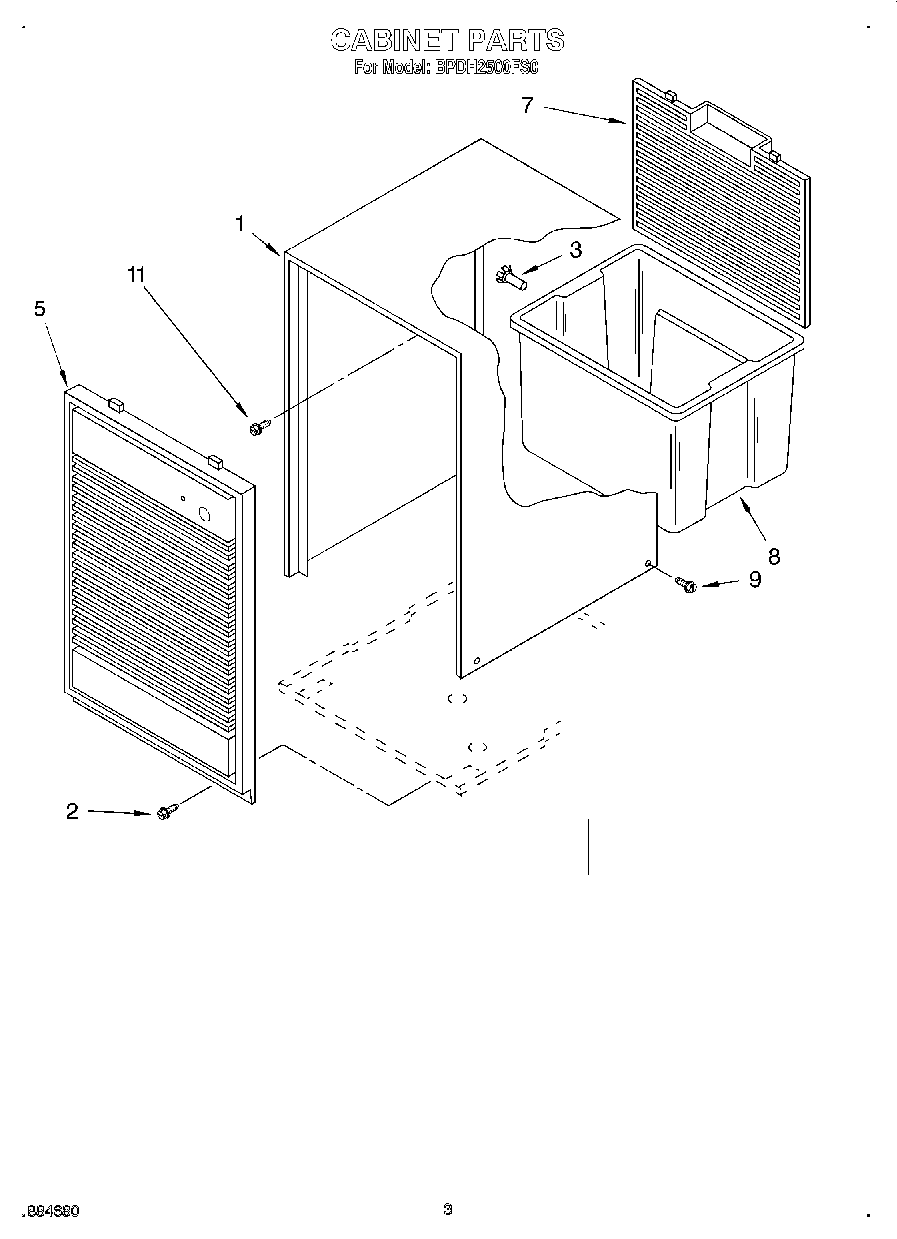

BPDH2500FS0 03 – SECTION

Written by

Products

Position	Product
	WPL LIT1166033
	WPL LIT1166032
	WPL LIT1169993
1	WPL 1166059
2	Screw, No.8 x 1/2 (2)
3	Retainer Pin (Rear Grille)
5	Grille, Front
7	WPL 1166805
8	WPL 1166060
9	WPL 1166816
11	Cap, Condensate Pan
11	Seal, Ring (Access Valve) (20 – Pack)
11	No Drip Tape (For Sweating Tubes)
11	WP16123 Whirlpool Washer
11	978026 Whirlpool Refrigerator Primary Valve
11	978027 Whirlpool Refrigerator Primary Valve
11	978030 Whirlpool Refrigerator Valve
11	WP978025 Whirlpool Refrigerator Valve
11	VALVE, ACCESS (1/2“)
11	Screw, 8 x 3/8
11	Kit, Evaporator Repair (Aluminum Epoxy)
11	Lacquer, Starlight Gray (1/2 Pt. Uncut)
11	VALVE, ACCESS (5/8“)
