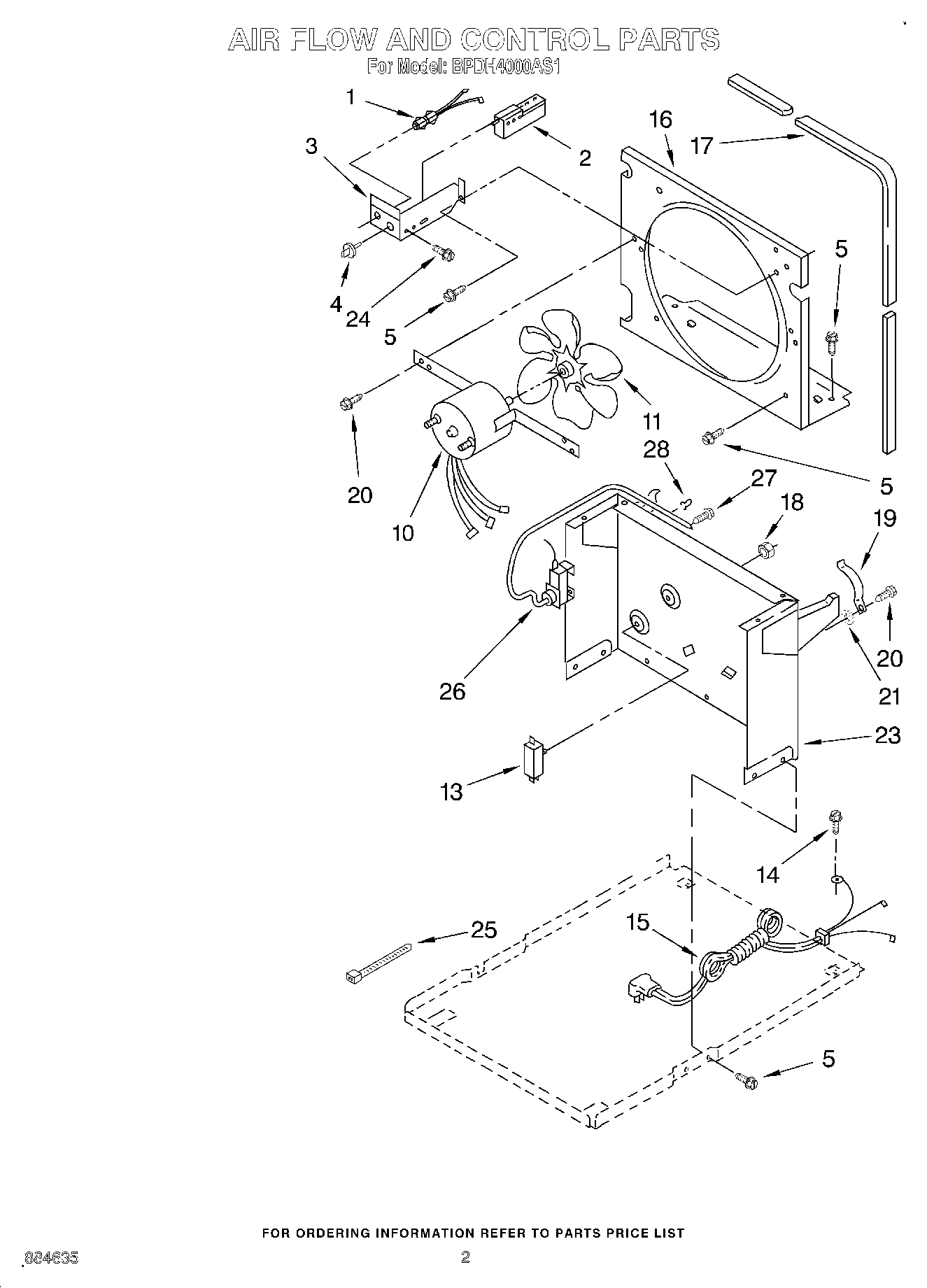

BPDH4000AS1 02 – AIR FLOW AND CONTROL

Products

PositionProduct
1Light, Indicator
2Humidistat, Control
3Bracket, Humidistat
4WPL 1162670
5Screw, 8 x 3/8
10Motor, Fan
11Blade, Fan
13Switch, Water Level Control
14WPW10141604 Whirlpool Screw
15Cord, Appliance
16Plate, Orifice
17Seal
18Palnut, 3/8-32
19Spring, Water Level
20WP488163 Whirlpool Refrigerator Screw
21Washer (Repair) (.062 Thickness)
21Washer (Repair) (.091 Thickness)
21Washer, Repair (.045 Thickness)
23Support
24WP3177991 Whirlpool Screw
25WPW10339879 Whirlpool Wire Tie
26Thermostat, De-Icer
27WP488234 Whirlpool Air Conditioner Screw
28Clamp, Tube To Evaporator Mtg (2)
