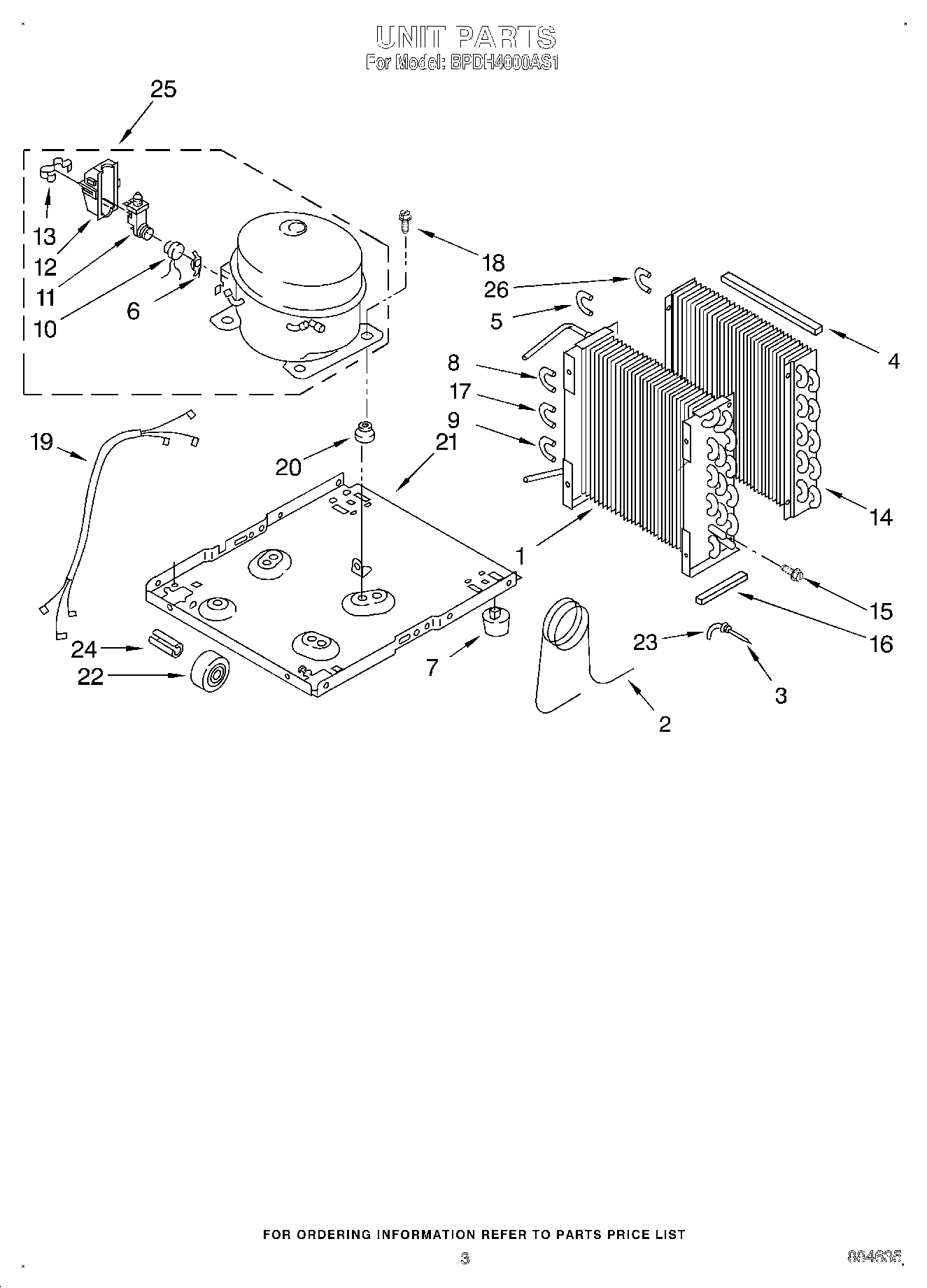

BPDH4000AS1 03 – UNIT

Products

Position	Product
1	Condenser
2	Tube, Restrictor (Length 36.00“)
3	WP1162526 Whirlpool Air Conditioner Strainer
4	Seal, Evaporator Top
5	Bend, Return Condenser (1)
6	Spring, Overload
7	Glide (2)
8	Bend, Return Evaporator (11)
9	Bend, Return Evaporator (4)
10	Overload (Service)
10	Overload (Production)
11	Relay, Start (Service)
11	Relay, Start (Production)
12	Cover, Terminal (Service)
12	Cover, Terminal (Production)
13	Retainer, Cover (Service)
13	Strap
14	Evaporator
15	WP489069 Whirlpool Compactor Screw
16	Seal
17	Bend, Return Condenser (4)
18	Bolt, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	Roller (2)
23	Bend, Return Condenser (10)
24	Pin, Roller (2)
25	Compressor, Service (Complete Assembly)
26	Bend Return
