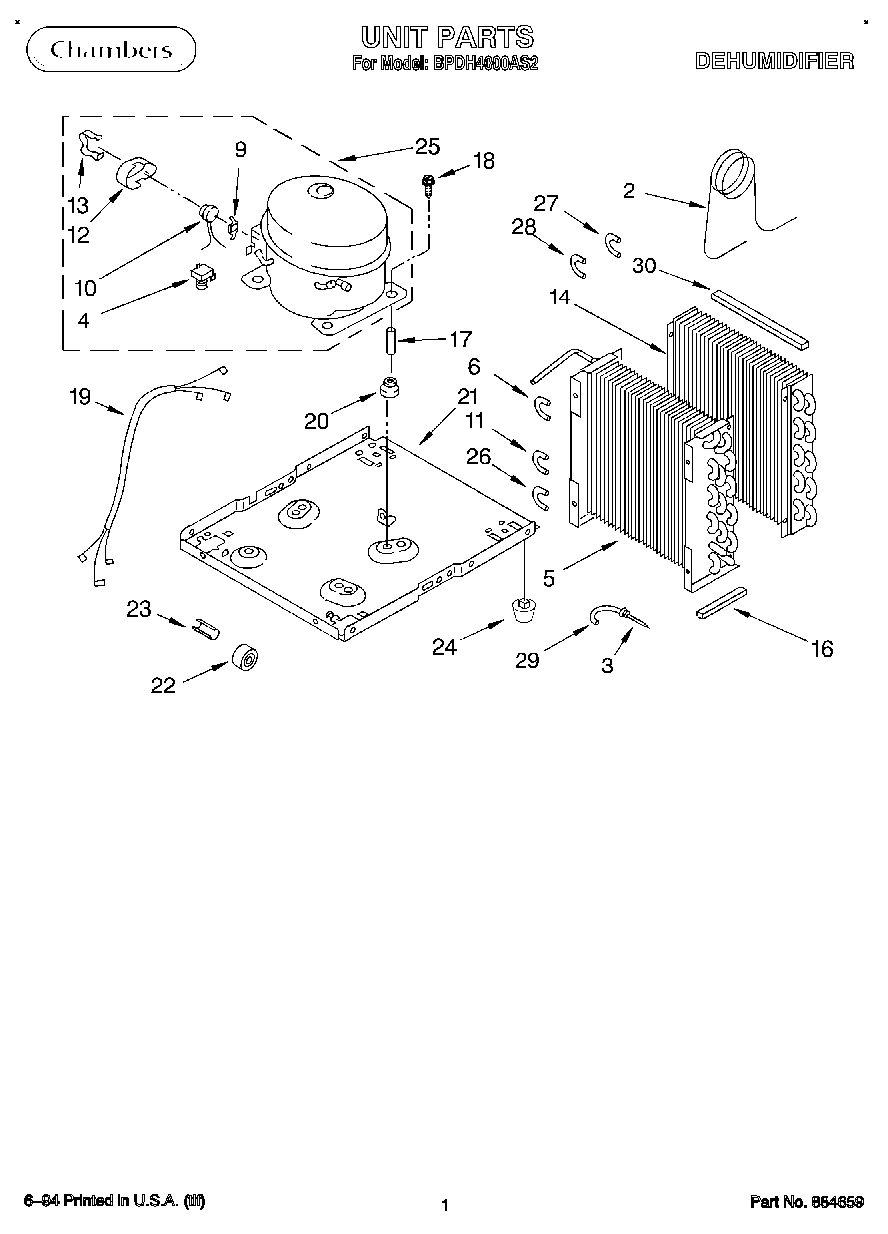

BPDH4000AS2 01 – SECTION

Products

Position	Product
	WPL LIT1165310
	WPL LIT1162709
	WPL LIT1165327
2	Tube, Restrictor (Length 36.00“)
3	WP1162526 Whirlpool Air Conditioner Strainer
4	Relay
5	Condenser
6	Bend, Return Condenser (1)
9	Spring, Overload
10	Overload
11	Bend, Return Condenser (4)
12	Cover, Terminal
13	Retainer, Cover
14	Evaporator
16	Seal
17	Sleeve (4)
18	Bolt, 1/4-28 x 1“ (4)
19	WPL 1164816
20	Grommet (4)
21	Base
22	Roller (2)
23	Pin, Roller (2)
24	Glide (2)
25	Compressor (Complete Assembly)
26	Bend, Return Condenser (10)
27	Bend, Return Evaporator (11)
28	Bend, Return Evaporator (4)
29	Bend Return
30	PTC Clamp
30	PTC Start Device
30	Wire Assy. (2)
30	Seal, Evaporator Top
30	WP489069 Whirlpool Compactor Screw
