BPDH4000AS2 02 – SECTION

Products

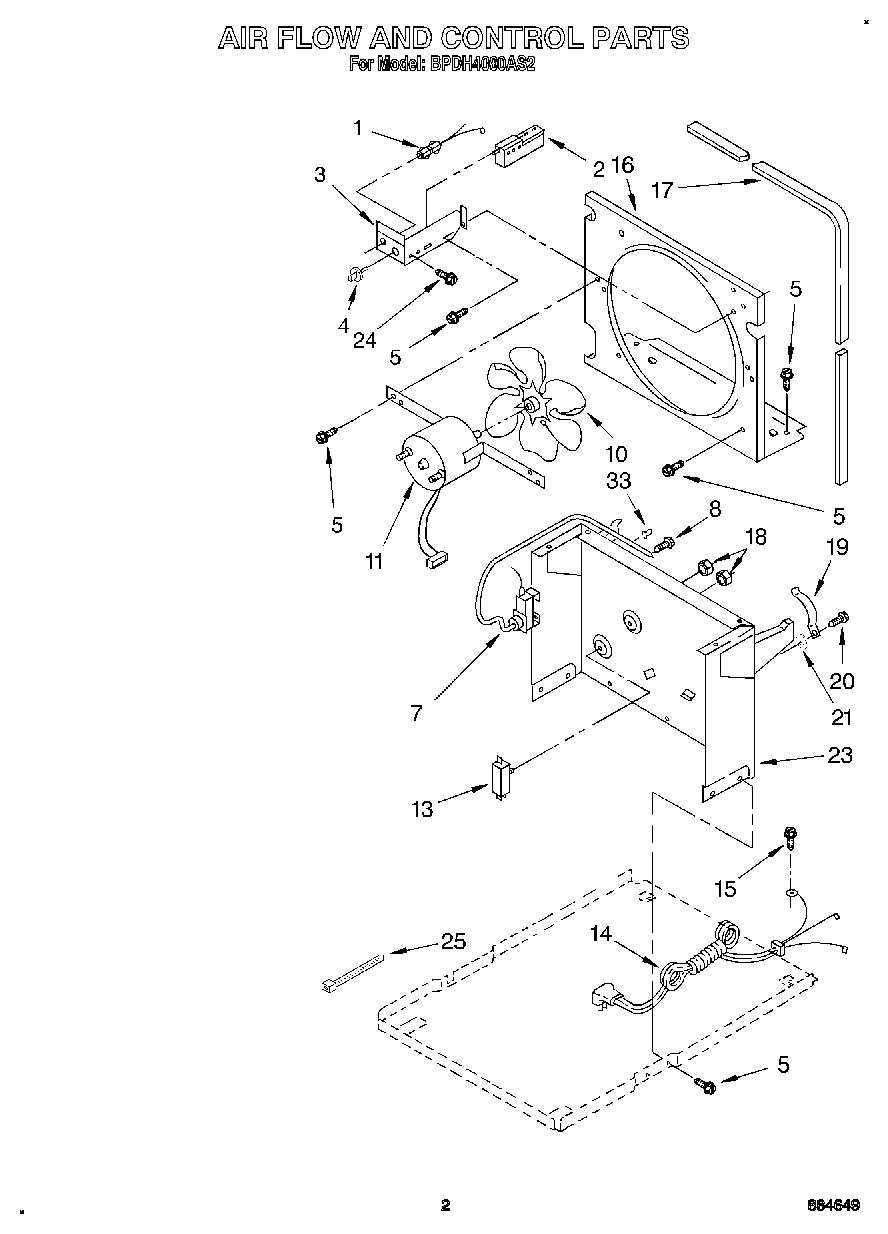

PositionProduct
1Light, Indicator
2Humidistat, Control
3Bracket, Humidistat
4WPL 1162670
5WP489069 Whirlpool Compactor Screw
7WPL 1164779
8WP488234 Whirlpool Air Conditioner Screw
10Blade, Fan
11Motor, Fan
13Switch, Water Level Control
14Cord, Appliance
15WPW10141604 Whirlpool Screw
16Plate, Orifice
17Seal
18Palnut, 3/8-32
19Spring, Water Level
20Screw 8-18 x 5/8
21Washer (Repair) (.091 Thickness)
21Washer, Repair (.045 Thickness)
21Washer (Repair) (.062 Thickness)
23Support
24WP3177991 Whirlpool Screw
25WPW10339879 Whirlpool Wire Tie
33Clamp, Tube To Evaporator Mtg (2)
