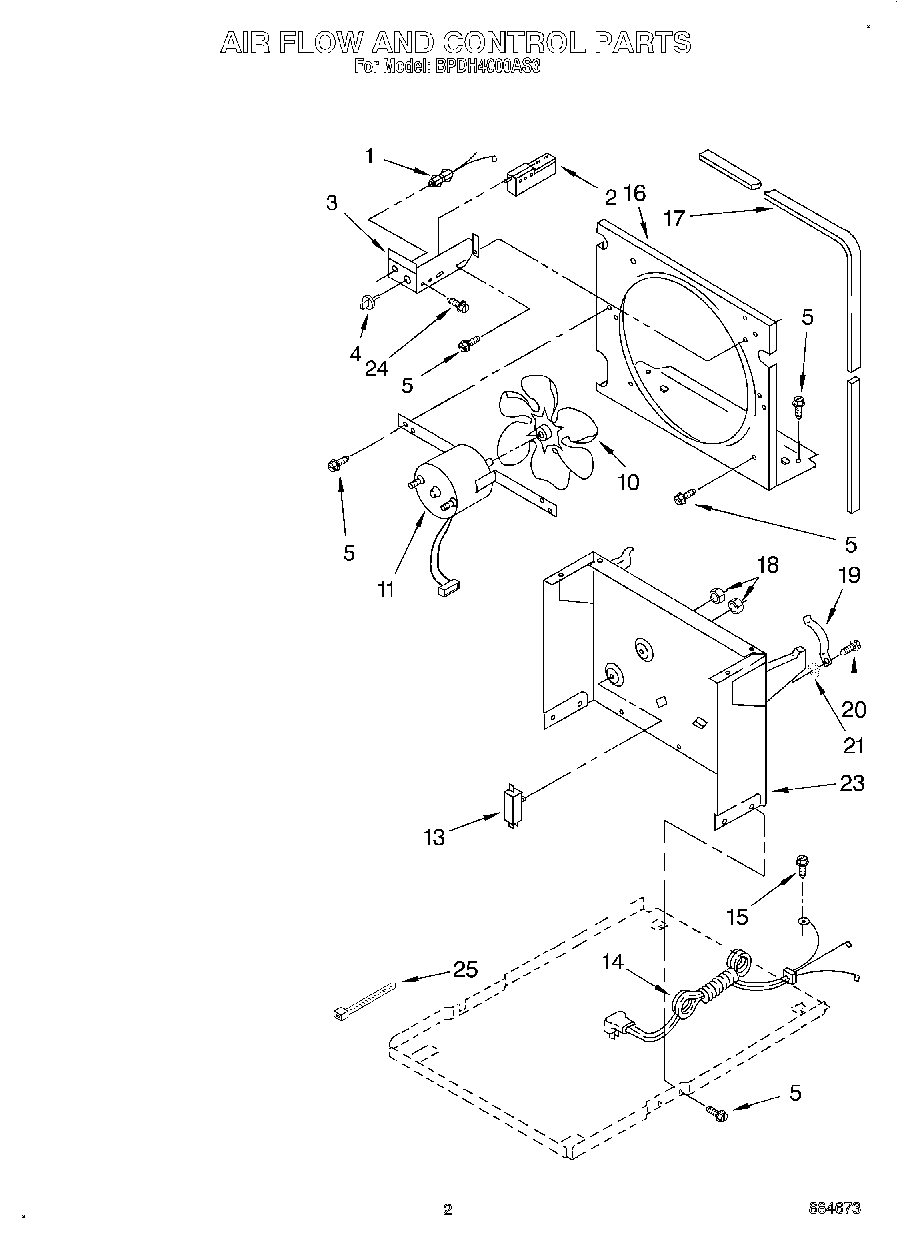

BPDH4000AS3 02 – SECTION

Products

PositionProduct
1Light, Indicator
2WPL 1166055
3WPL 1167040
4WPL 1162670
5WP489069 Whirlpool Compactor Screw
10Blade, Fan
11Motor, Fan
13Switch, Water Level Control
14Cord, Appliance
15WPW10141604 Whirlpool Screw
16Plate, Orifice
17Seal
18Palnut, 3/8-32
19Spring, Water Level
20W11624204 Whirlpool Screw
21Washer (Repair) (.091 Thickness)
21Washer, Repair (.045 Thickness)
21Washer (Repair) (.062 Thickness)
23Support
24WP3177991 Whirlpool Screw
25WPW10339879 Whirlpool Wire Tie
