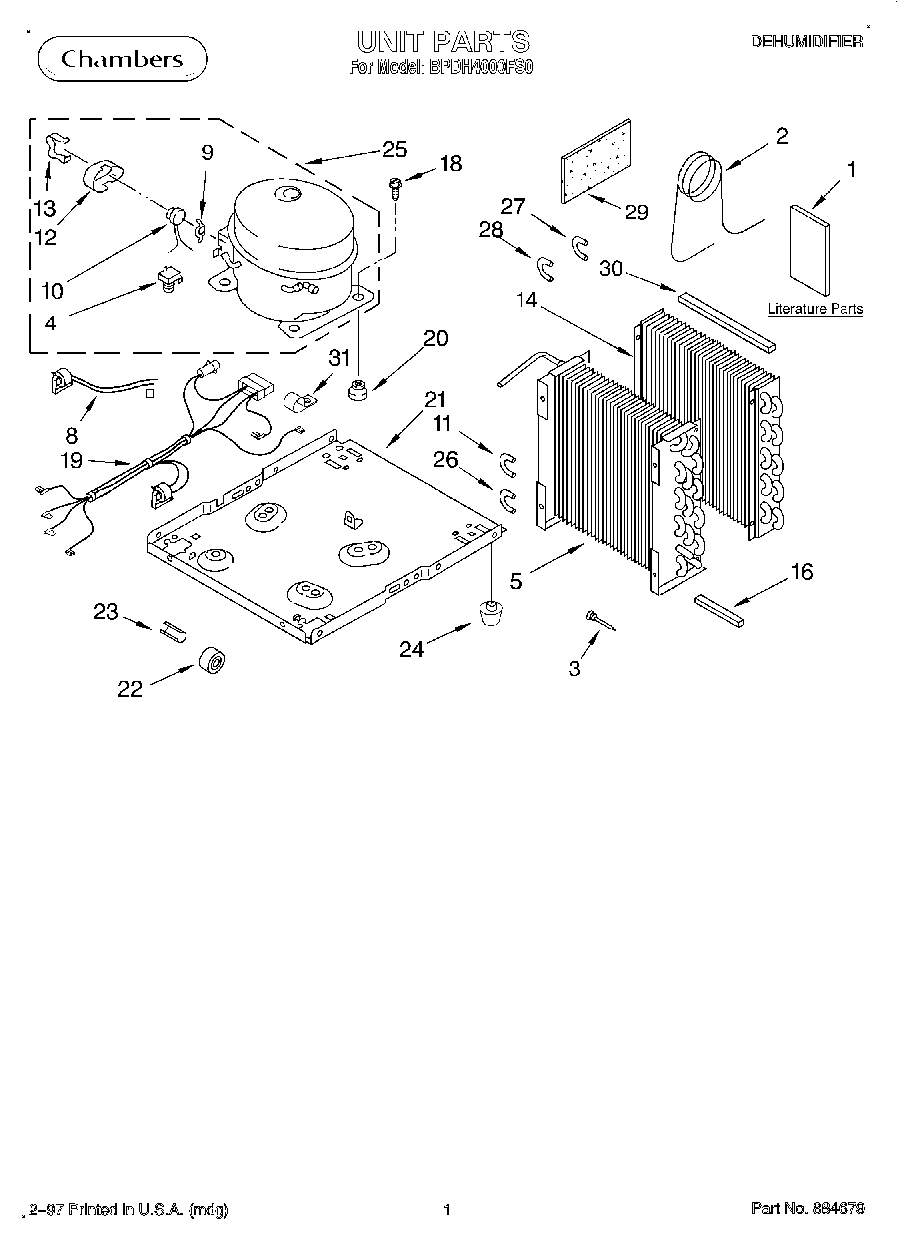

BPDH4000FS0 01 – SECTION

Products

Position	Product
1	WPL LIT1169993
1	WPL LIT1167573
1	WPL LIT1168183
2	Tube, Restrictor (36.0“ Length)
3	WP1162526 Whirlpool Air Conditioner Strainer
4	Relay
5	WPL 1167544
8	WPL 1167574
9	Spring, Overload
10	Overload
11	Bend, Return Condenser (4)
12	Cover, Terminal
13	Retainer, Cover
14	WPL 1168186
16	Seal
18	Bolt, 1/4-28 x 1“ (4)
19	WPL 1167561
20	876811 Whirlpool Grommet
21	Base
22	Roller (2)
23	Pin, Roller (2)
24	Glide (2)
25	Compressor (Complete Assembly)
26	Bend, Return Condenser (10)
27	Bend, Return Evaporator (11)
28	Bend, Return (1)
29	WPL 1162650
30	Seal, Evaporator Top
31	Relief, Strain
31	PTC Clamp
31	PTC Start Device
31	Wire Assy. (2)
31	WP489069 Whirlpool Compactor Screw
