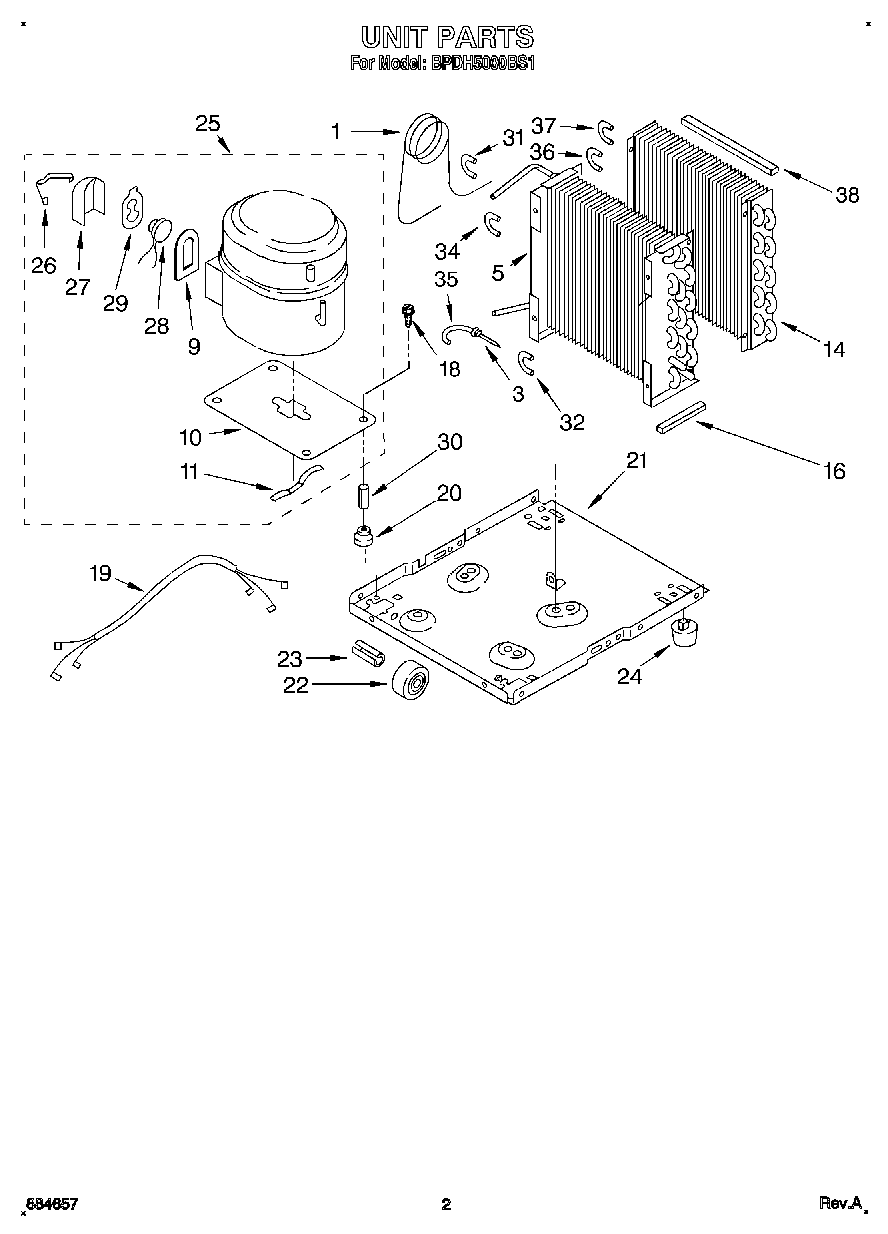

BPDH5000BS1 02 – SECTION

Products

Position	Product
1	Tube, Restrictor (Length 36.00“)
3	WP1162526 Whirlpool Air Conditioner Strainer
5	Condenser
9	Gasket, Cover
10	Plate, Compressor
11	Spring, Clip
14	Evaporator
16	Seal
18	Bolt, 1/4-28 x 1“ (4)
19	Harness, Wire
20	Grommet (4)
21	Base
22	Roller (2)
23	Pin, Roller (2)
24	Glide (2)
25	WPL 1162658
26	Retainer, Cover
26	Retainer, Cover
27	Cover, Terminal
27	Cover, Terminal
28	Overload
28	Overload (Production)
29	Spring, Overload
29	Spring, Overload
30	Sleeve (4)
31	Bend, Return Condenser (1)
32	Bend, Return Condenser (10)
34	Bend, Return Condenser (4)
35	Bend Return
36	Bend, Return Evaporator (11)
37	Bend, Return Evaporator (4)
38	Seal, Evaporator Top
