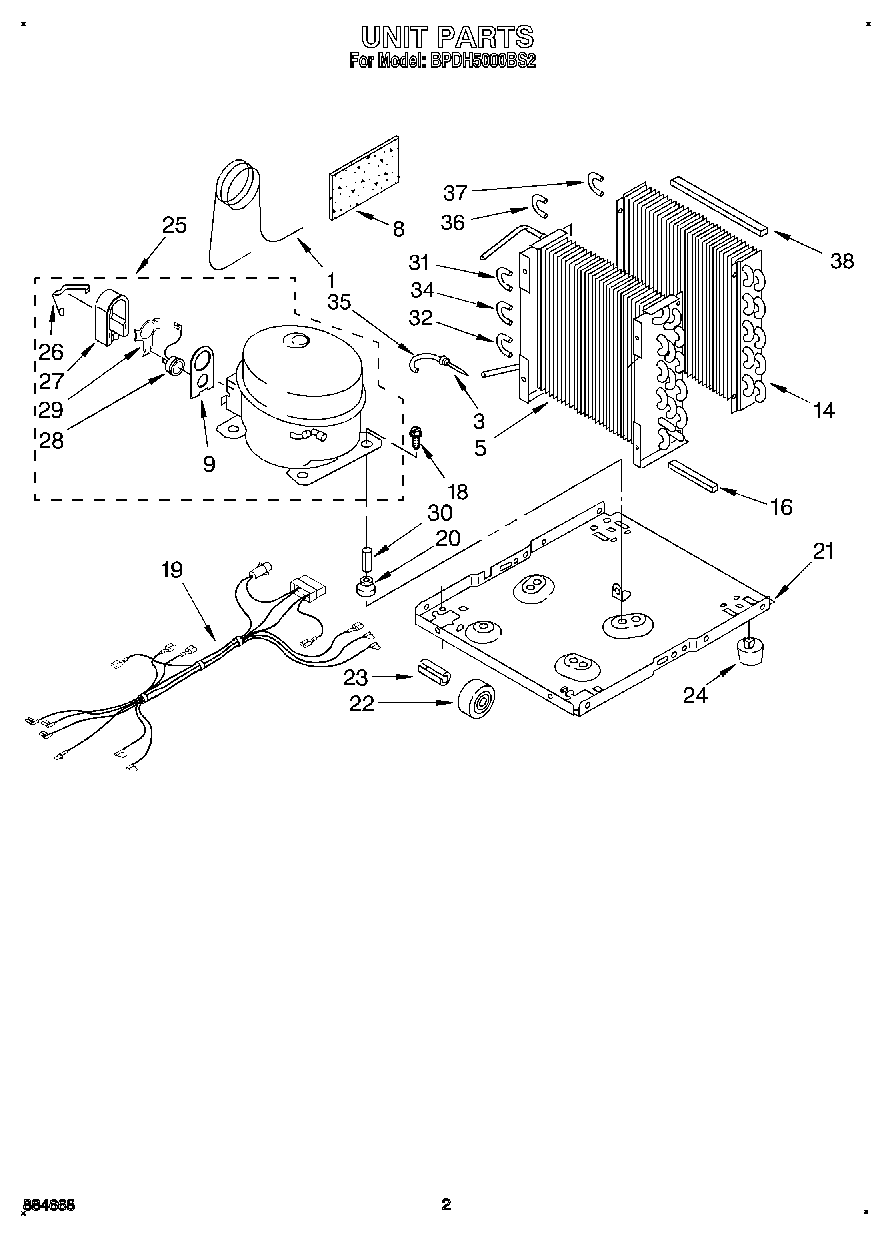

BPDH5000BS2 02 – SECTION

Products

Position	Product
1	Tube, Restrictor (Length 36.00“)
3	WP1162526 Whirlpool Air Conditioner Strainer
5	Condenser
8	WPL 1162650
9	WPL 1167017
14	Evaporator
16	Seal
18	Bolt, 1/4-28 x 1“ (4)
19	WPL 1167026
20	Grommet (4)
21	Base
22	Roller (2)
23	Pin, Roller (2)
24	Glide (2)
25	WPL 1167003
26	WPL 1167006
27	WPL 1167005
28	WPL 1167004
29	WPL 1167008
30	Sleeve (4)
31	Bend, Return Condenser (1)
32	Bend, Return Condenser (10)
34	Bend, Return Condenser (4)
35	Bend Return
36	Bend, Return Evaporator (11)
37	Bend, Return Evaporator (4)
38	Seal, Evaporator Top
