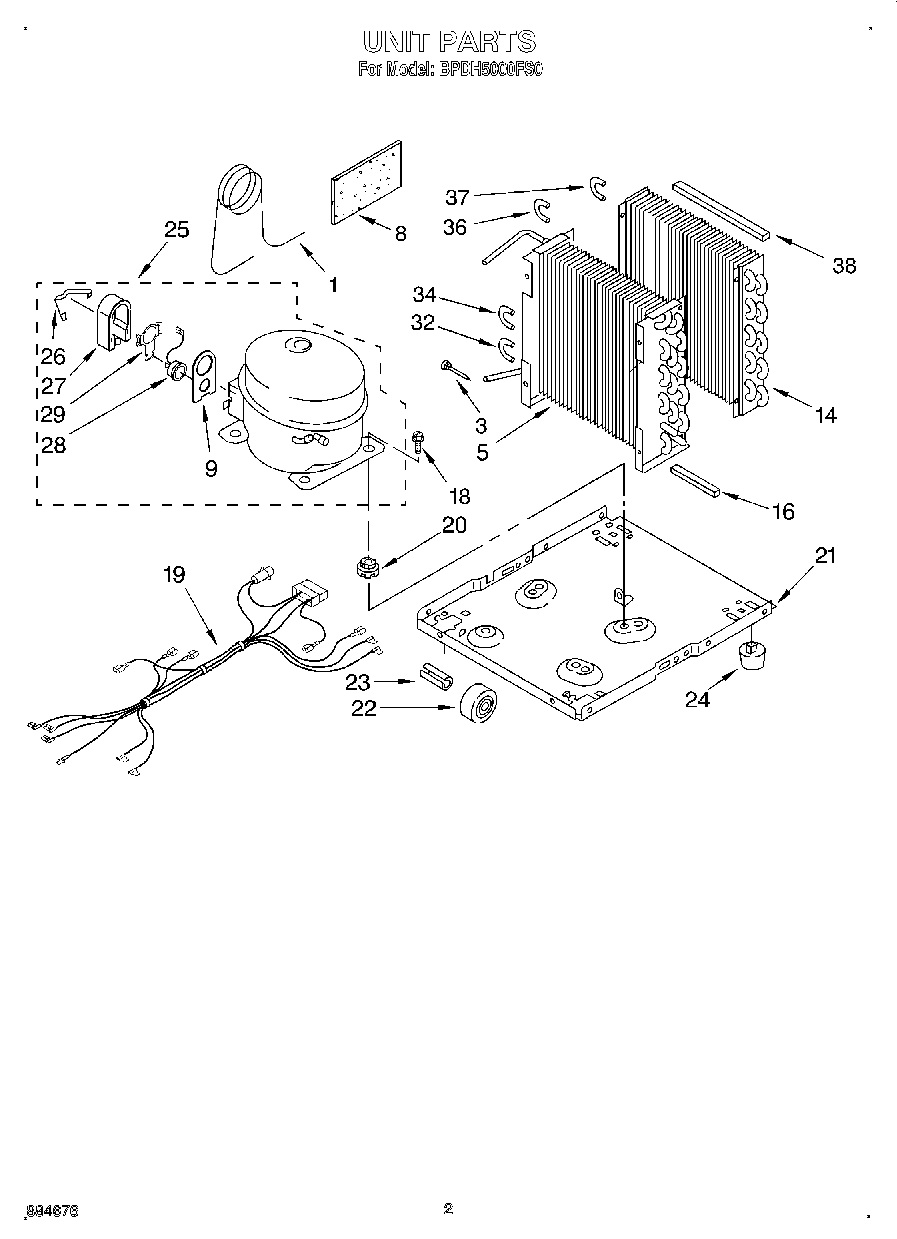

BPDH5000FS0 02 – SECTION

Products

PositionProduct
1Tube, Restrictor (36.0“ Length)
3WP1162526 Whirlpool Air Conditioner Strainer
5WPL 1167544
8WPL 1162650
9WPL 1167017
14WPL 1168184
16Seal
18Bolt, 1/4-28 x 1“ (4)
19WPL 1167026
20876811 Whirlpool Grommet
21Base
22Roller (2)
23Pin, Roller (2)
24Glide (2)
25WPL 1167003
26WPL 1167006
27WPL 1167005
28WPL 1167004
29WPL 1167008
32Bend, Return Condenser (10)
34Bend, Return Condenser (4)
36Bend, Return Evaporator (11)
37Bend, Return (1)
38Seal, Evaporator Top
