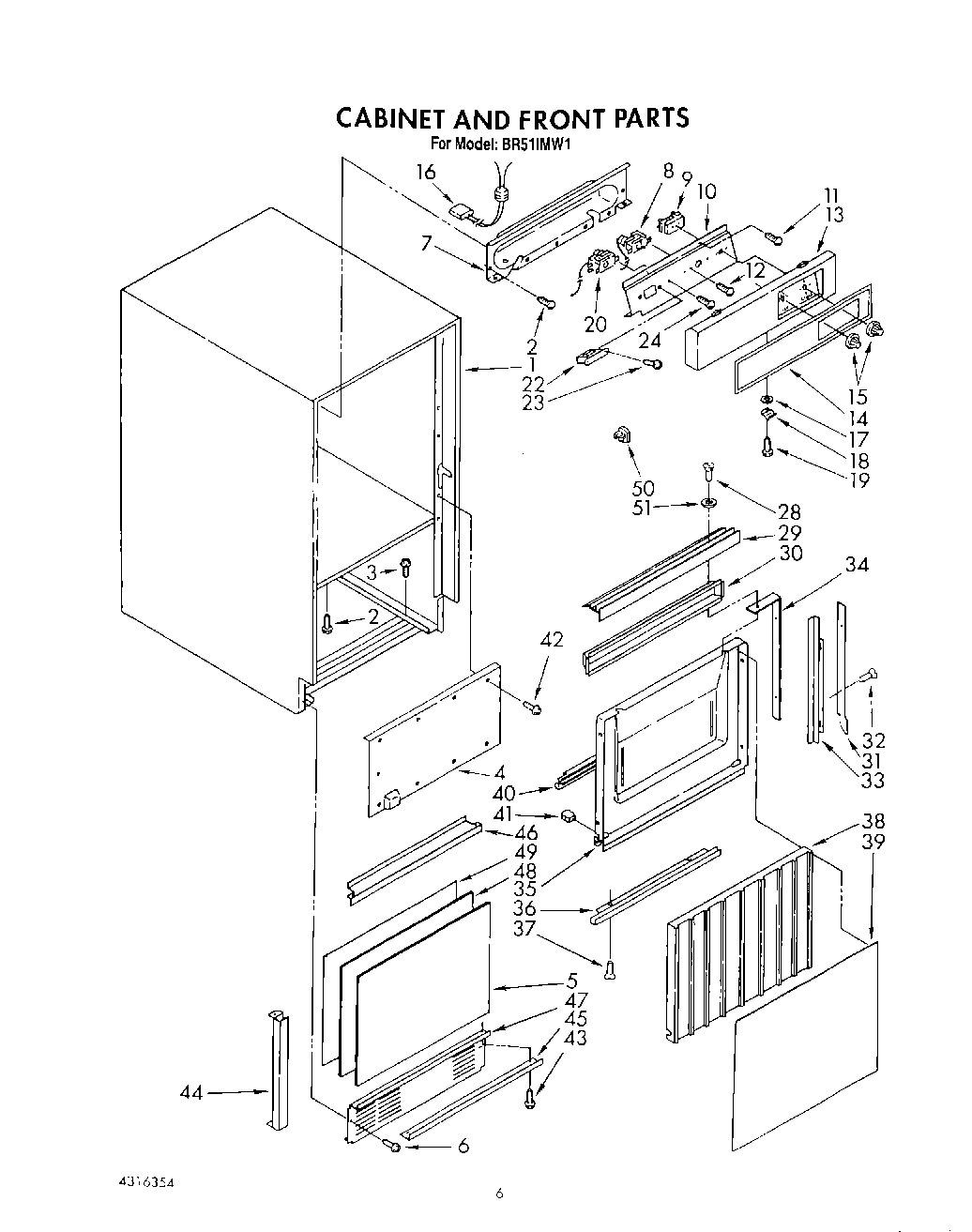

BR51IMW1 04 – CABINET AND FRONT

Products

Position	Product
1	Cabinet
3	Screw, No.10-32 x 3/8
4	Support, Cabinet Front
5	Panel, Grille Cabinet Front
6	WP90767 Whirlpool Screw
7	Panel, Rear Escutcheon
8	Thermostat, Evaporator
9	Switch, Rotary
10	Panel, Control
11	WP250830 Whirlpool Refrigerator Screw
12	WP486579 Whirlpool Air Conditioner Screw
13	Escutcheon, Control
14	Decal Escutcheon
15	Knob
16	Harness, Wiring (Cutter Grid)
17	Washer, Latch
18	Latch
19	Repair, Screw
20	Thermostat, Ice Bin
22	Transformer
24	Screw, 8-32 x 3/8 (2)
28	Screw, 10 x 1/2
29	Handle, Door
30	Pocket, Handle
31	Rail, Door (Left Side)
31	Rail, Door (Right Side)
32	Screw, No.8-32 1/2 (6)
33	Trim, Door (2)
34	Strip, Tapping (2)
35	Liner, Door
36	Trim, Door
37	Screw, No.8-32 x 1/2
38	Insulation, Door
39	Panel, Door (White & Black)
40	Gasket, Door
41	Plug, Hinge
42	WP965173 Whirlpool Dishwasher Screw
43	WP488729 Whirlpool Refrigerator Door Screw
44	Trim Front, Panel (Side)
45	Trim Front, Panel (Top & Bottom)
46	Support Panel
47	Grill, Front
48	Filler, Grille Panel
49	Panel, Inner Grille
50	Retainer, Wire (2)
51	Washer (2)
