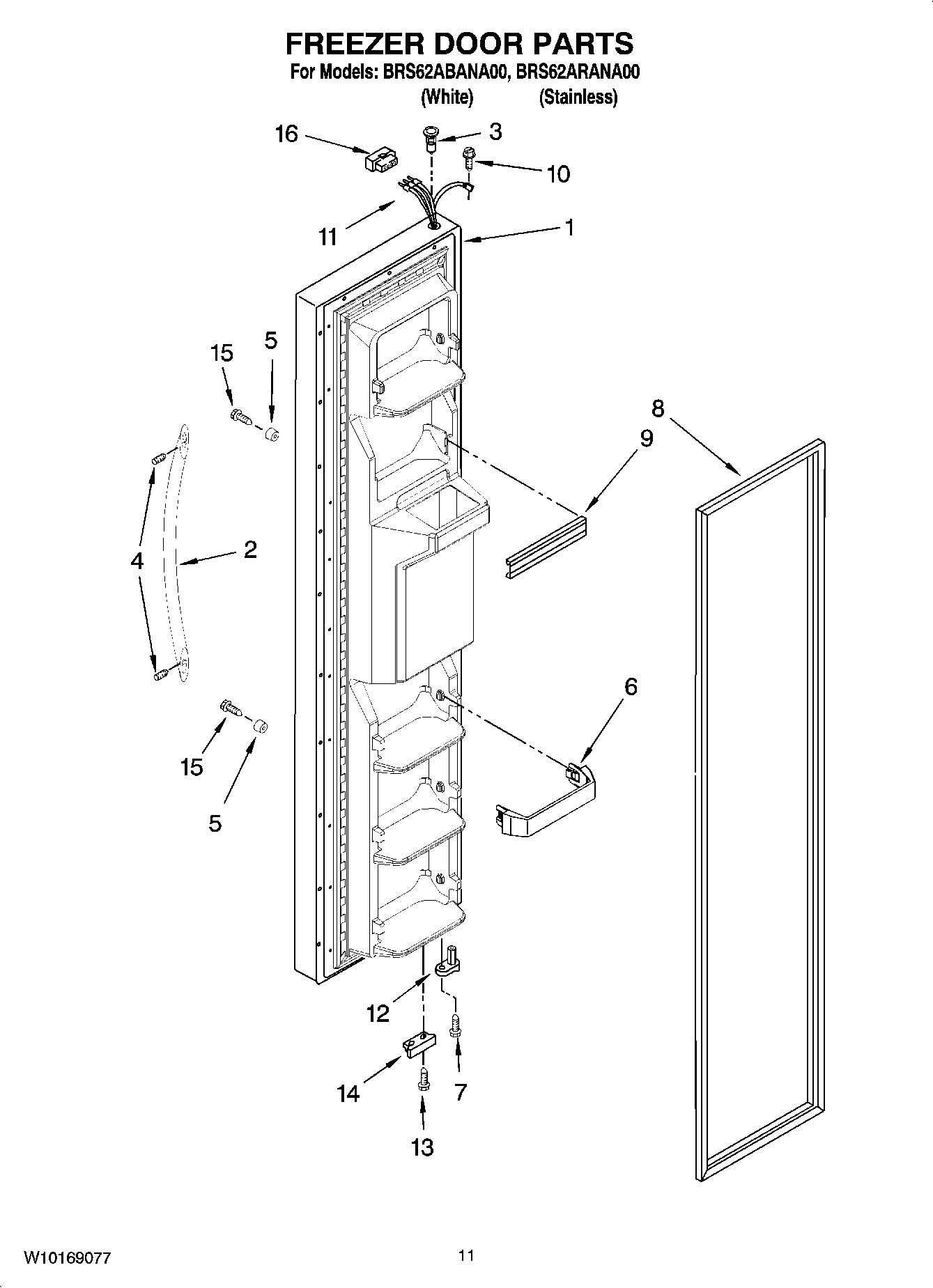

BRS62ABANA00 07 – FREEZER DOOR PARTS

BRS62ABANA00 07 – FREEZER DOOR PARTS

Written by

in

BRS62ABANA00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
1REFRIGERATOR DOOR (INCLUDES ITEM 6) (WHITE)
22254608S Whirlpool Handle
3WP2182181 Whirlpool Refrigerator Thimble
4SCREW
5WPW10170540 Whirlpool Screw
6Trivet (4)
7Screw
8W10136733 Whirlpool Refrigerator FIP Gasket
82159072 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311642 Whirlpool Refrigerator Wire Harness
112187272 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (White)
14Bracket, Door Stop (Apollo Grey)
15Screw
16WP2154473 Whirlpool Refrigerator Connector
