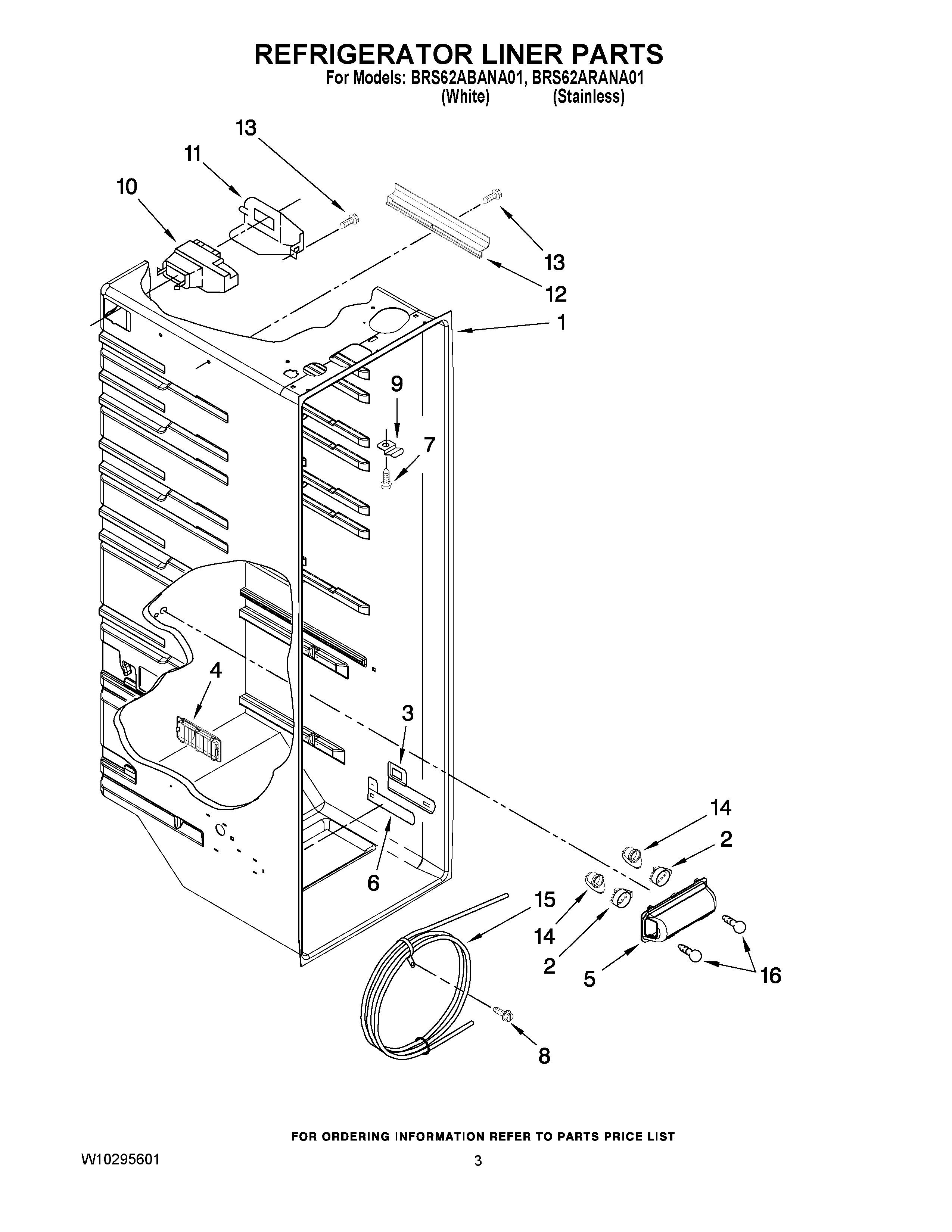

BRS62ABANA01 02 – REFRIGERATOR LINER PARTS

BRS62ABANA01 02 – REFRIGERATOR LINER PARTS

Written by

in

BRS62ABANA01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2175210 Whirlpool Refrigerator Shroud
3W10175967 Whirlpool Refrigerator Escutcheon
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
62182757 Whirlpool Refrigerator Slide
7WP488488 Whirlpool Refrigerator Screw
92311612 Whirlpool Refrigerator Clip
10WPW10151374 Whirlpool Refrigerator Diffuser
112152019 Whirlpool Refrigerator Cover
12W10252495 Whirlpool Refrigerator Wire Cover
13W10759522 Whirlpool Screw
144387478 Whirlpool Refrigerator Light Socket
15WP2256126 Whirlpool Refrigerator Reservoir
16RANGE ONLY 40W 120V APPL BULB
