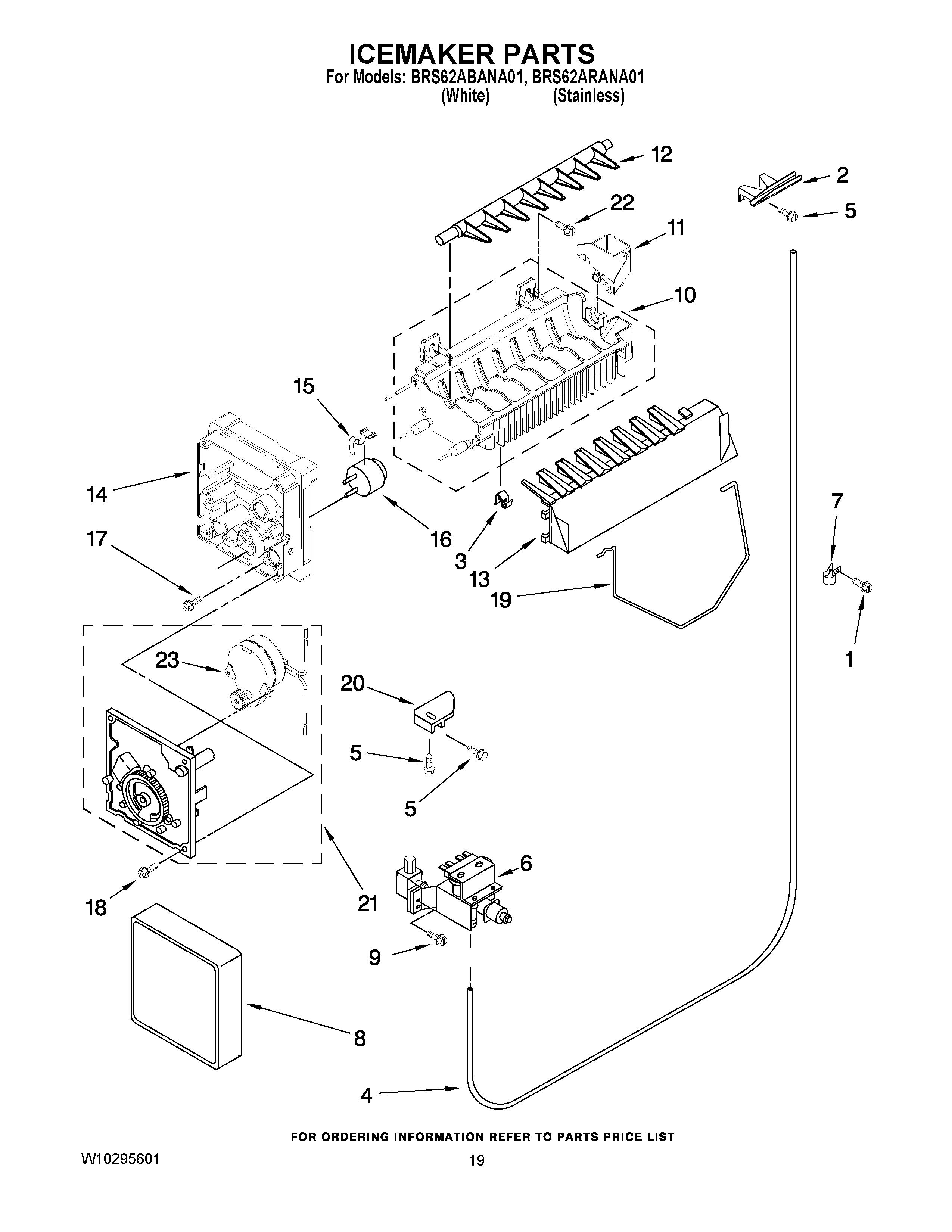

BRS62ABANA01 12 – ICEMAKER PARTS

Products

Position	Product
2	W11505385 Whirlpool Refrigerator Chute
3	WP628379 Whirlpool Refrigerator Clip
4	W10823511 Whirlpool Refrigerator Water Tube
5	WP489478 Whirlpool Refrigerator Screw
6	W10853654 Whirlpool Water Inlet Valve
7	489348 Whirlpool Refrigerator Tube Clamp
8	WPW10289690 Whirlpool Ice Maker Cover
9	WPW10141625 Whirlpool Refrigerator Screw Assembly
10	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11	W10122561 Whirlpool Refrigerator Cup Fill
12	WP627843 Whirlpool Refrigerator Ejector Arm
13	WPW10122563 Whirlpool Refrigerator Stripper Arm
14	WP2195914 Whirlpool Refrigerator Ice Maker Housing
15	WP2315522 Whirlpool Refrigerator Clip
16	WP627985 Whirlpool Icemaker Cycling Thermostat
17	8533917 Whirlpool Refrigerator Screw
18	WP681249 Whirlpool Screw Assembly
19	W11342242 Whirlpool Refrigerator Ice Level Arm
20	W11500948 Whirlpool Refrigerator Bracket
21	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
22	489136 Whirlpool Refrigerator Screw
23	CABINET (NOT A SERVICEABLE PART)
100	WPW10190965 Whirlpool Refrigerator Ice Maker Assembly
