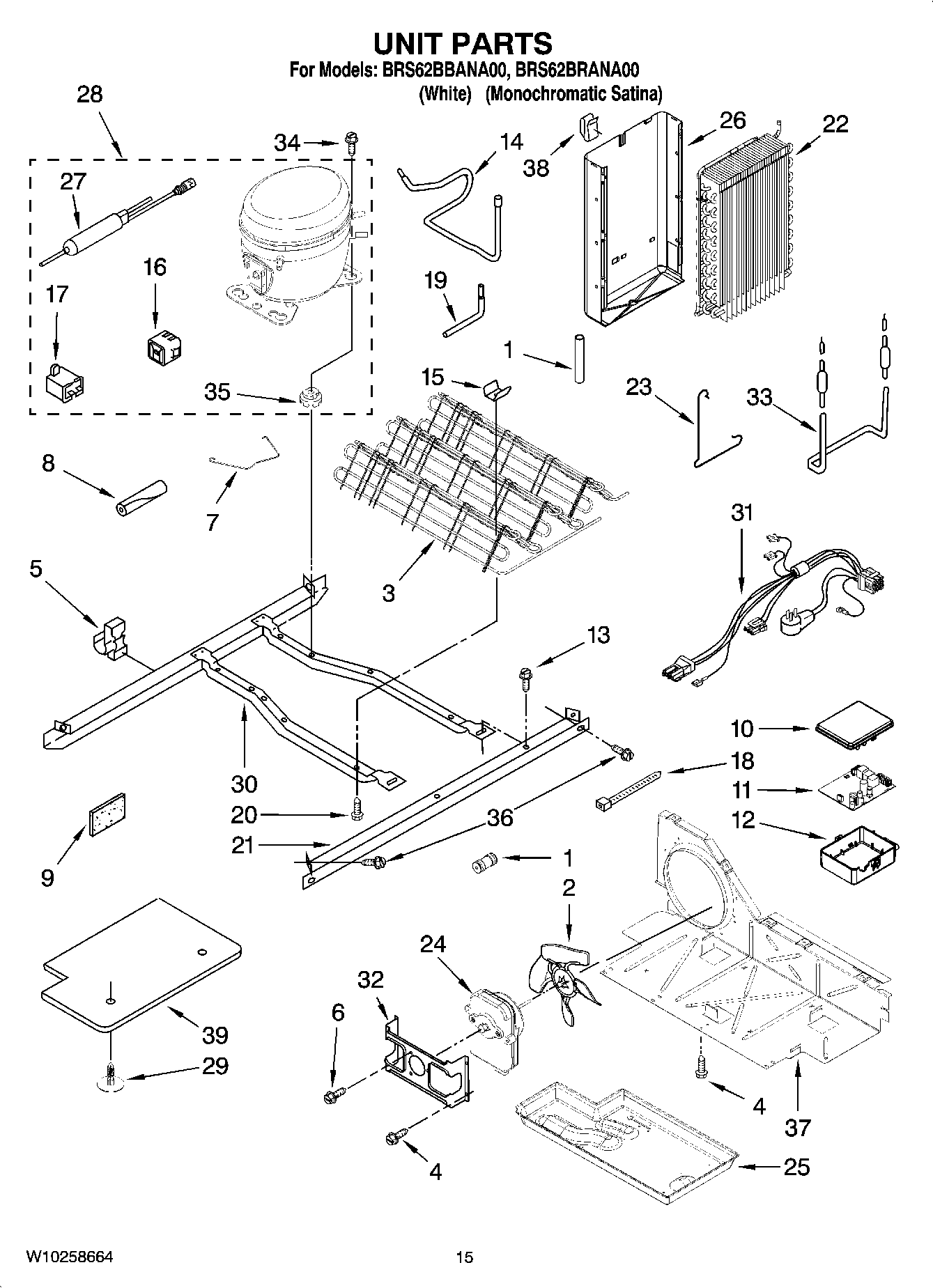

BRS62BBANA00 09 – UNIT PARTS

Products

Position	Product
	978027 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
	REFRIGERANT CHARGE 5.0
	Following Parts Not Illustrated and Optional Parts Not Included
	876764 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (1/2“)
	978030 Whirlpool Refrigerator Valve
	WP978025 Whirlpool Refrigerator Valve
1	WPW10334458 Whirlpool Refrigerator Connector
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	2223314 Whirlpool Refrigerator Clip
8	SLEEVE
9	W11553819 Whirlpool Refrigerator Insulation
10	Box Cover
11	Elec. Control
12	2326982 Whirlpool Refrigerator Control Box
13	WP489427 Whirlpool Refrigerator Screw
14	2205764 Whirlpool Refrigerator Tube
15	W10683556 Whirlpool Refrigerator Clip
16	WP2304885 Whirlpool Refrigerator Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	WPW10339879 Whirlpool Wire Tie
19	W10858105 Whirlpool Refrigerator Tube
20	W11544659 Whirlpool Refrigerator Screw
21	WPW10196323 Whirlpool Refrigerator Rail Assembly
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	WPW10194474 Whirlpool Refrigerator Shield
27	WPW10143759 Whirlpool Dryer Filter
28	W10139460 Whirlpool Refrigerator Compressor
29	489396 Whirlpool Refrigerator Clip
30	2304903 Whirlpool Refrigerator Frame
31	Unit, Harness (Includes Power Cord)
32	WP2181929 Whirlpool Refrigerator Bracket
33	W10130266 Whirlpool Heater
35	876811 Whirlpool Grommet
35	WP4387558 Whirlpool Refrigerator Compressor Grommet
36	489340 Whirlpool Refrigerator Screw
37	Air Baffle
38	Clip, Heat Shield
39	W11115203 Whirlpool Control Panel
