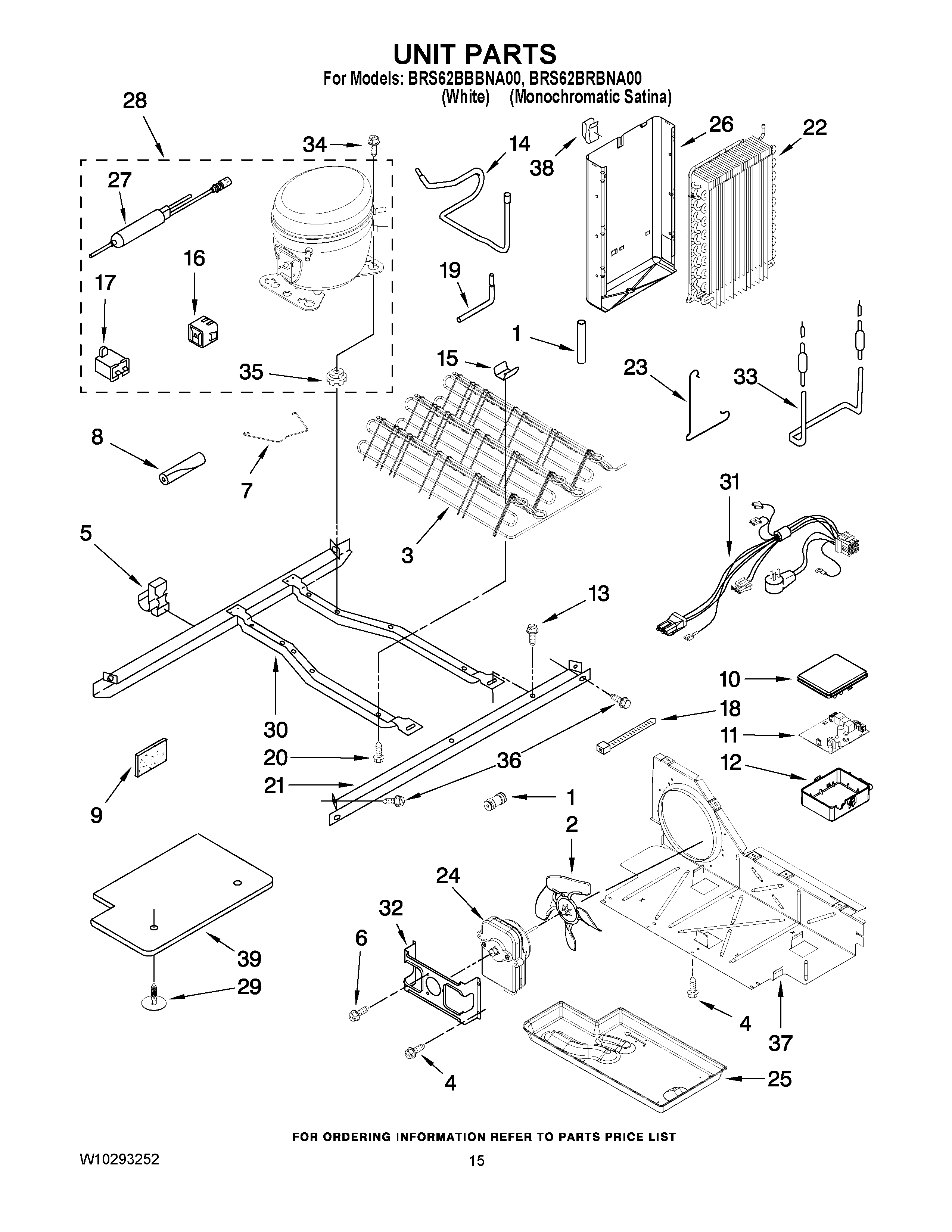

BRS62BBBNA00 09 – UNIT PARTS

BRS62BBBNA00 09 – UNIT PARTS

Written by

in

BRS62BBBNA00 09 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WP4373559 Whirlpool Fitting
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10812039 Whirlpool Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	Strap, Bale
8	SLEEVE
9	W11553819 Whirlpool Refrigerator Insulation
10	Box Cover
11	WP2321818-includeCORE Whirlpool WP2321818 Refrigerator Electronic Control Board + Core
12	Control Box
13	WP489427 Whirlpool Refrigerator Screw
14	2205764 Whirlpool Refrigerator Tube
15	W10683556 Whirlpool Refrigerator Clip
16	WP2312007 Whirlpool Refrigerator Start Device
17	2321245 Whirlpool Refrigerator Capacitor
18	WPW10339879 Whirlpool Wire Tie
19	W10858105 Whirlpool Refrigerator Tube
20	W11544659 Whirlpool Refrigerator Screw
21	WPW10196323 Whirlpool Refrigerator Rail Assembly
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2321271 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	WPW10194474 Whirlpool Refrigerator Shield
27	WPW10143759 Whirlpool Dryer Filter
28	W10183407 Whirlpool Refrigerator Compressor
29	489396 Whirlpool Refrigerator Clip
30	2304903 Whirlpool Refrigerator Frame
31	POWER CORD
32	WP2181929 Whirlpool Refrigerator Bracket
33	WPW10123612 Whirlpool Heater Assembly
35	876811 Whirlpool Grommet
36	489340 Whirlpool Refrigerator Screw
37	Air Baffle
38	Clip, Heat Shield
39	W11115203 Whirlpool Control Panel
