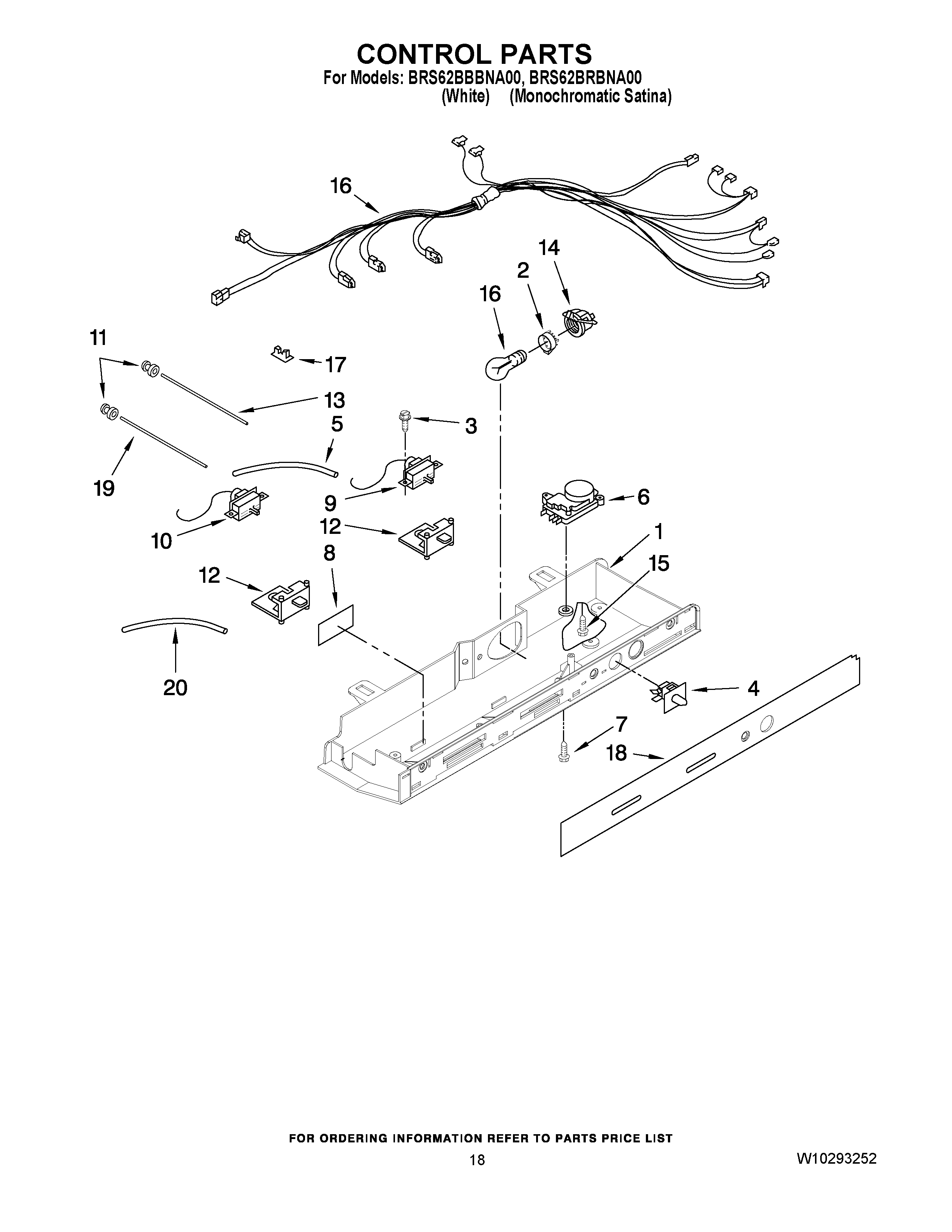

BRS62BBBNA00 11 – CONTROL PARTS

BRS62BBBNA00 11 – CONTROL PARTS

Written by

in

BRS62BBBNA00 11 – CONTROL PARTS

Products

PositionProduct
12200135 Whirlpool Refrigerator Control Box
2SHROUD-LGHT SOCKET
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
6WP2188379 Whirlpool Refrigerator Defrost Timer
7489392 Whirlpool Refrigerator Screw
82172940 Whirlpool Window
9WP2321305 Whirlpool Thermostat
10WP2321289 Whirlpool Refrigerator Thermostat
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
13Fiber Optic
144387478 Whirlpool Refrigerator Light Socket
15WP67002552 Whirlpool Refrigerator Light Bulb
16W10129766 Whirlpool Wire Harness
17CLIP, WIRING
18COVER CONTROL BOX
19Light Bar (FC)
20WP2196003 Whirlpool Refrigerator Bar Riser
