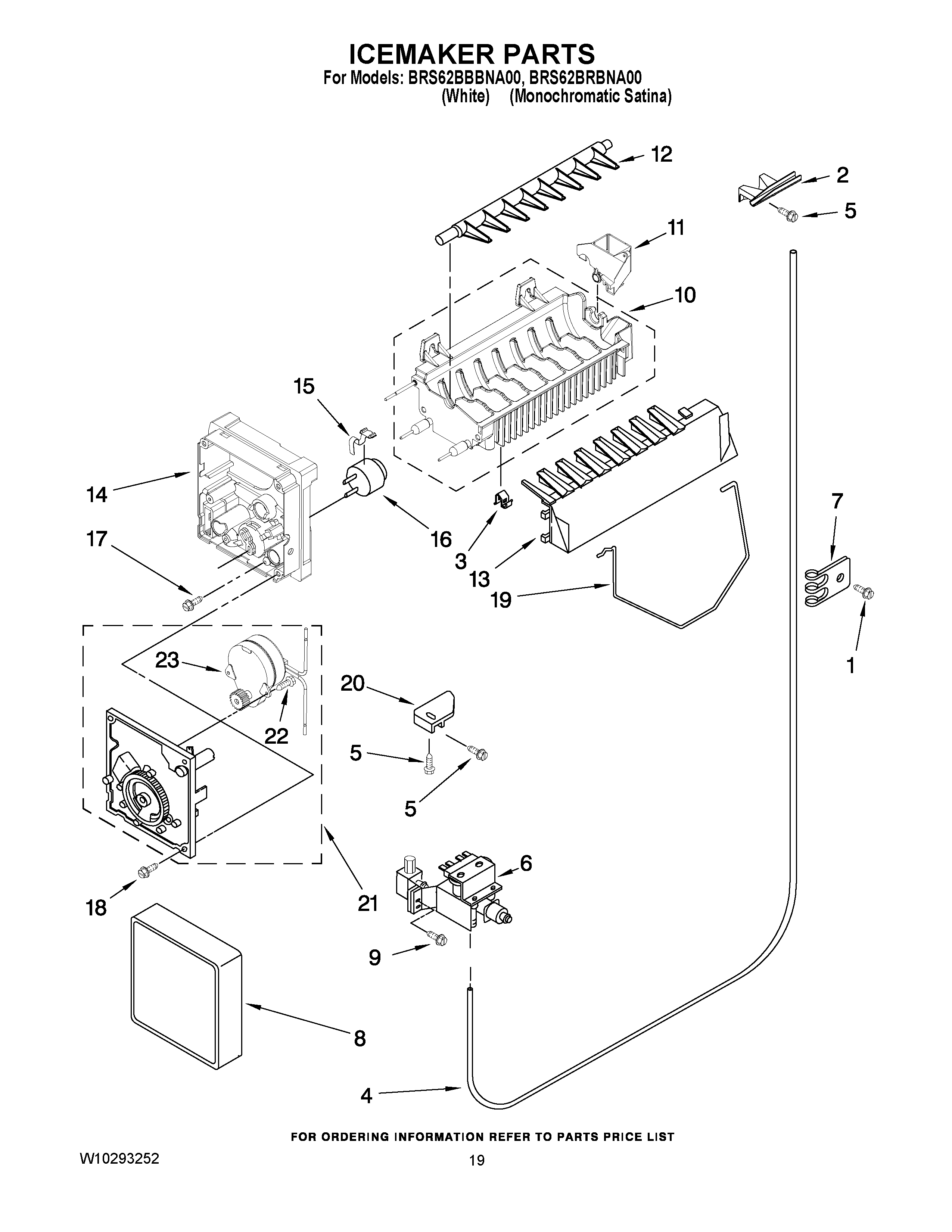

BRS62BBBNA00 12 – ICEMAKER PARTS

Products

Position	Product
2	W11505385 Whirlpool Refrigerator Chute
4	W10823511 Whirlpool Refrigerator Water Tube
5	WP489478 Whirlpool Refrigerator Screw
6	WPW10158157 Whirlpool Refrigerator Inlet Valve
7	489348 Whirlpool Refrigerator Tube Clamp
8	WPW10289690 Whirlpool Ice Maker Cover
9	WPW10141625 Whirlpool Refrigerator Screw Assembly
10	WPW10122523 Whirlpool Refrigerator Ice Mold
11	W10122561 Whirlpool Refrigerator Cup Fill
12	WP627843 Whirlpool Refrigerator Ejector Arm
13	WPW10122563 Whirlpool Refrigerator Stripper Arm
14	WP2195914 Whirlpool Refrigerator Ice Maker Housing
15	WP2315522 Whirlpool Refrigerator Clip
16	WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
17	W10001280 Whirlpool Refrigerator Screw
18	W10001240 Whirlpool Refrigerator Screw
19	W11342242 Whirlpool Refrigerator Ice Level Arm
20	W11500948 Whirlpool Refrigerator Bracket
21	W10190933 Whirlpool Refrigerator Motor Assembly
22	489136 Whirlpool Refrigerator Screw
23	CABINET (NOT A SERVICEABLE PART)
100	WPW10190943 Whirlpool Refrigerator Icemaker
