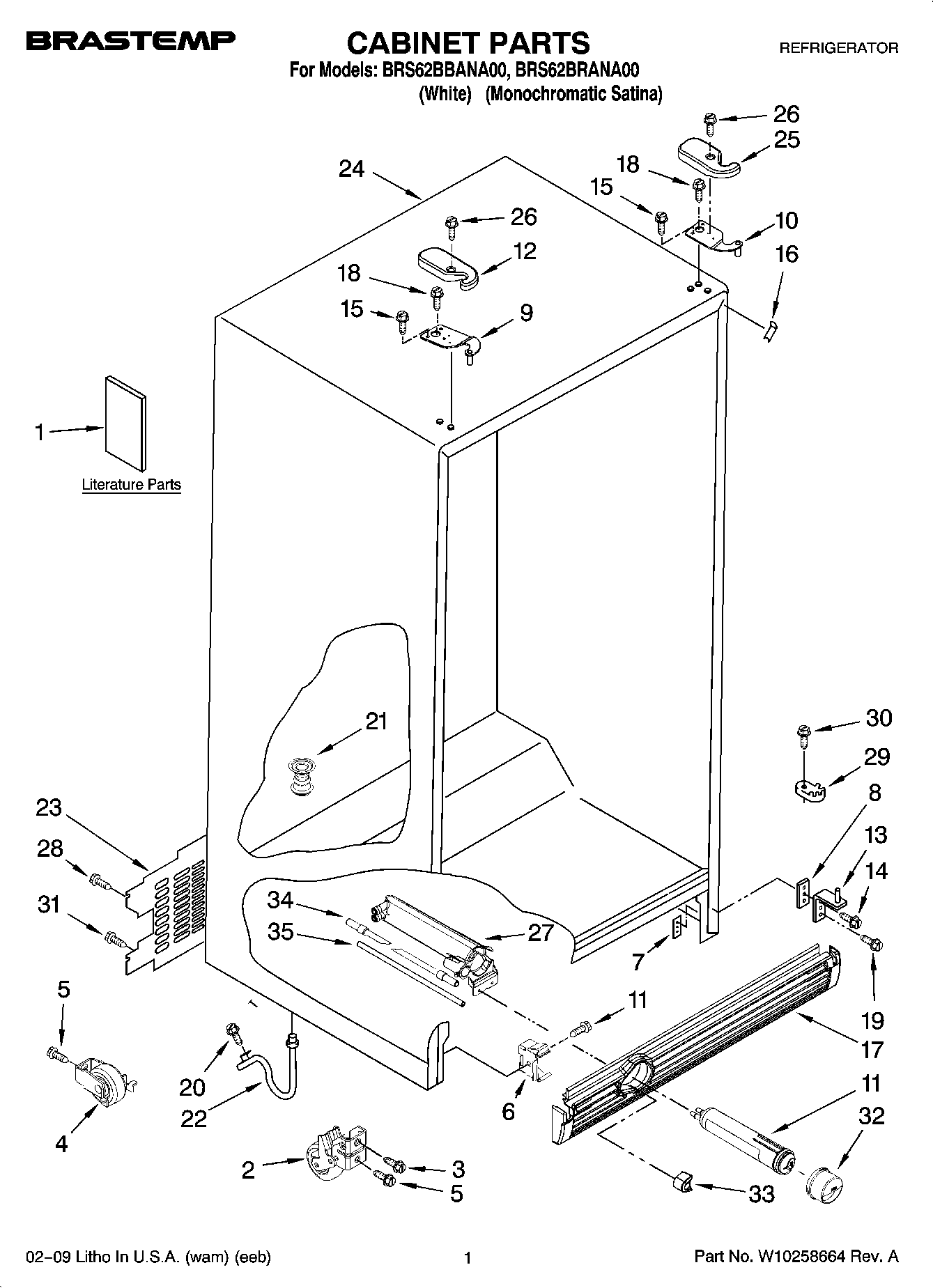

BRS62BRANA00 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Energy Label
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	WP2209697 Whirlpool Refrigerator Shim
9	WP2203770 Whirlpool Refrigerator Door Hinge
10	WP2203771 Whirlpool Refrigerator Door Hinge
11	FILTER 3-SINGLE TEAL
12	Hinge Cover (RC) (Apollo Grey)
12	Hinge Cover (RC) (White)
13	Hinge Bottom (2)
15	W10853301 Whirlpool Refrigerator Screw
16	WPW10283959 Whirlpool Refrigerator Filler
16	W10851579 Whirlpool Refrigerator Filler
17	Grille (Midnight Grey)
17	Grille (White)
18	WP489497 Whirlpool Screw
19	W10856122 Whirlpool Refrigerator Screw
20	WP489464 Whirlpool Refrigerator Screw
21	W11566763 Whirlpool Fitting
22	W11512417 Whirlpool Drain Connector
23	Cover, Unit
24	Cabinet, (Not A Serviceable Part)
25	Hinge Cover (FC) (White)
25	Hinge Cover (FC) (Apollo Grey)
26	WP8281227 Whirlpool Screw
27	WPW10121138 Whirlpool Refrigerator Water Filter Housing
28	WP488488 Whirlpool Refrigerator Screw
29	WPW10329686 Whirlpool Door Cam Black
30	WP489483 Whirlpool Screw
32	WP2260518W Whirlpool Refrigerator Filter Cap
32	WP2260518MG Whirlpool Water Filter Cap
33	2260503W Whirlpool Refrigerator Button
33	2260503MG Whirlpool Refrigerator Button
34	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
35	WPW10350006 Whirlpool Refrigerator Water Tube
