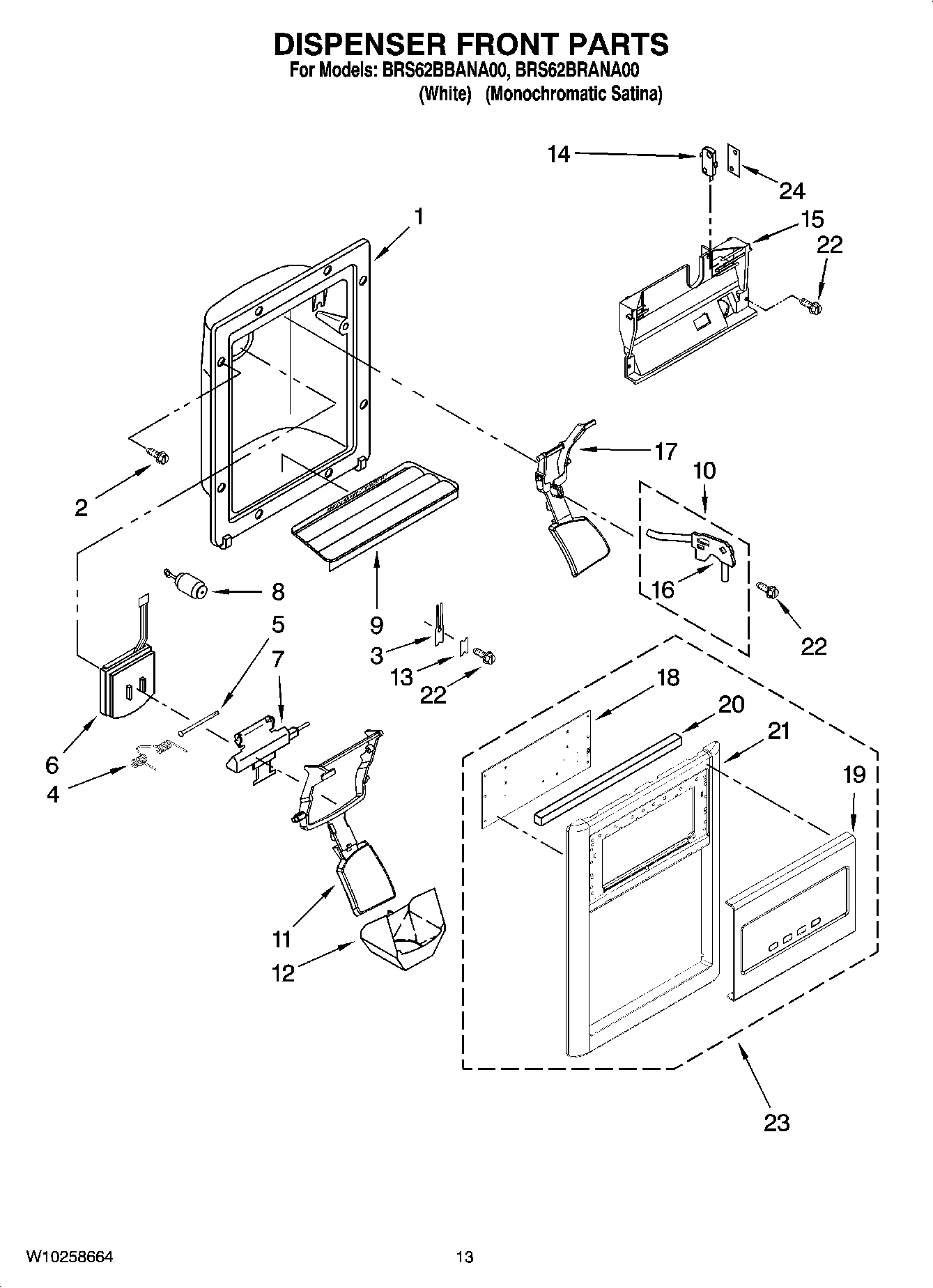

BRS62BRANA00 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	Grille, Overflow (Midnight Grey)
9	Grille, Overflow (White)
10	Water Fitting (Includes Water Tube)
11	WPW10152853 Whirlpool Refrigerator Dispenser Arm
11	W10155161 Whirlpool Refrigerator Dispenser Arm
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	WP2195051 Whirlpool Refrigerator Clip
14	WP2162361 Whirlpool Switch
15	W10728484 Whirlpool Refrigerator Dispenser Control Bracket
16	WP2304673 Whirlpool Refrigerator Bracket
17	Lever, Water Dispenser (Apollo Grey)
17	WPW10152858 Whirlpool Refrigerator Dispenser Arm
18	Switch Assembly (Not Available Order 23)
19	Overlay, Front Cover (Not Available, Order 23)
20	Gasket (Not Available, Order 23)
21	Front Cover, Housing (Not Available Order 23)
22	Screw
23	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Apollo Grey)
23	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)
24	Spacer, Switch (2)
