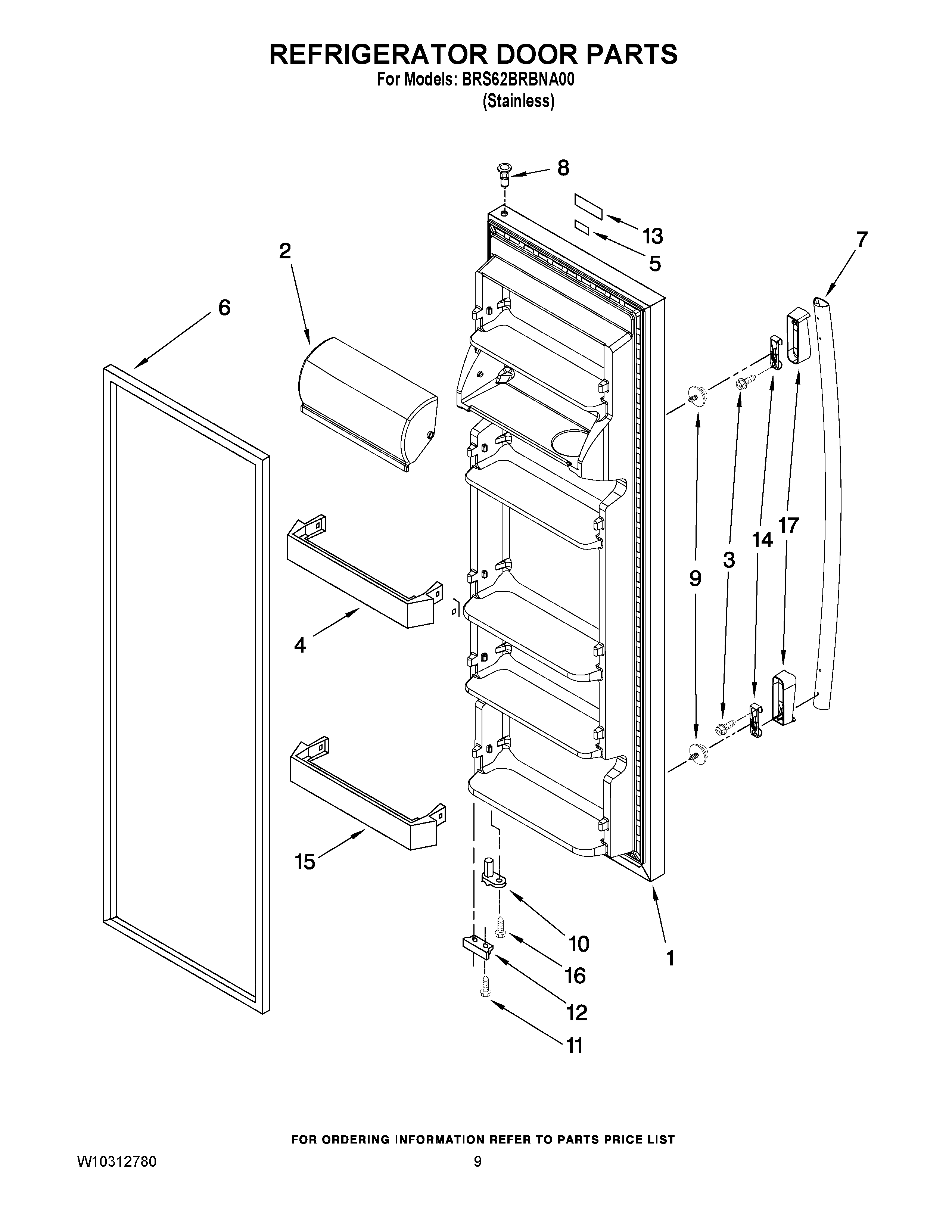

BRS62BRBNA00 06 – REFRIGERATOR DOOR PARTS

BRS62BRBNA00 06 – REFRIGERATOR DOOR PARTS

Written by

in

BRS62BRBNA00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (Stainless)
2WP2256101 Whirlpool Dairy Door
3W10267047 Whirlpool Screw
4Door Bin (4)
5Nameplate, Side-By-Side
6W10136732 Whirlpool Refrigerator FIP Gasket
7WPW10257118K Whirlpool Refrigerator Handle
8WP2182181 Whirlpool Refrigerator Thimble
9WPW10288153 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12Bracket, Door Stop (Apollo Grey)
13Nameplate, Brastemp
14WP2255411 Whirlpool Refrigerator Clip
15WP2309941 Whirlpool Refrigerator Door Bar Trim
16Screw
17End Cap (Apollo Grey)
