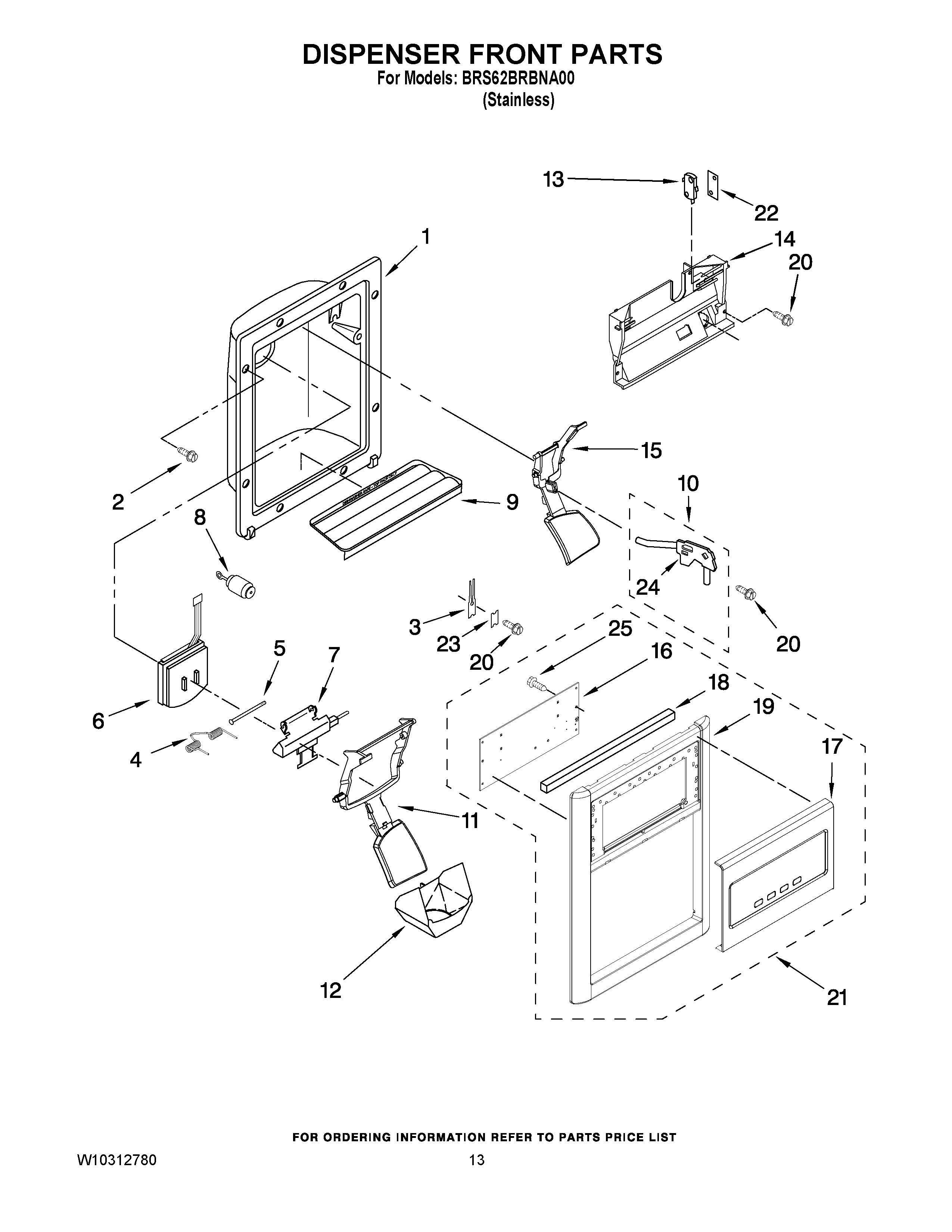

BRS62BRBNA00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
2W11245710 Whirlpool Refrigerator Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9W10171992 Whirlpool Refrigerator Grille
10Water Fitting (Includes Water Tube)
12WP2180224 Whirlpool Dispenser Funnel Guide
13WP2162361 Whirlpool Switch
14W10728484 Whirlpool Refrigerator Dispenser Control Bracket
15Lever, Water Dispenser (Apollo Grey)
18Gasket, Disp (2)
19CABINET (NOT A SERVICEABLE PART)
20Screw
21FRONT COVER ASSEMBLY (INCLUDES ITEMS 16, 17, 18 & 19) (NICKLE ONE)
22Spacer, Switch (2)
23WP2195051 Whirlpool Refrigerator Clip
24WP2304673 Whirlpool Refrigerator Bracket
252006254 Whirlpool Refrigerator Screw
