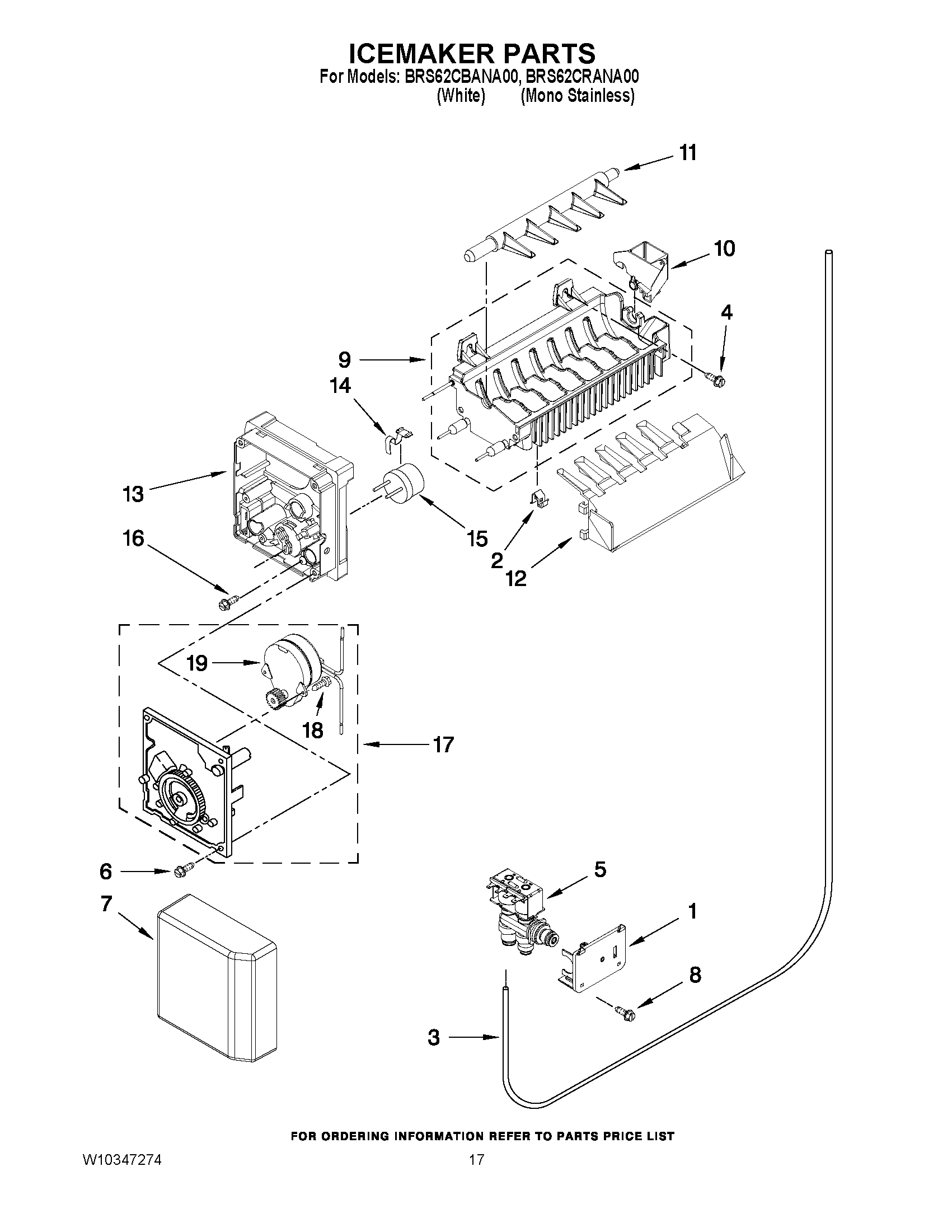

BRS62CBANA00 10 – ICEMAKER PARTS

BRS62CBANA00 10 – ICEMAKER PARTS

Written by

in

BRS62CBANA00 10 – ICEMAKER PARTS

Products

PositionProduct
1W10847867 Whirlpool Refrigerator Bracket
2WP628379 Whirlpool Refrigerator Clip
3W10823511 Whirlpool Refrigerator Water Tube
4WP489478 Whirlpool Refrigerator Screw
5WPW10238102 Whirlpool Refrigerator Inlet Valve
6WP681249 Whirlpool Screw Assembly
7COVER
8WPW10141625 Whirlpool Refrigerator Screw Assembly
9WPW10300025 Whirlpool Refrigerator Ice Mold
10W10122561 Whirlpool Refrigerator Cup Fill
11W10318914 Whirlpool Refrigerator Ejector Arm
12WPW10122563 Whirlpool Refrigerator Stripper Arm
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15628532 Whirlpool Refrigerator Thermostat
16W10001240 Whirlpool Refrigerator Screw
178201515 Whirlpool Refrigerator Motor and Gear Module Kit
18489136 Whirlpool Refrigerator Screw
19CABINET (NOT A SERVICEABLE PART)
100W11545326 Whirlpool Refrigerator Icemaker
