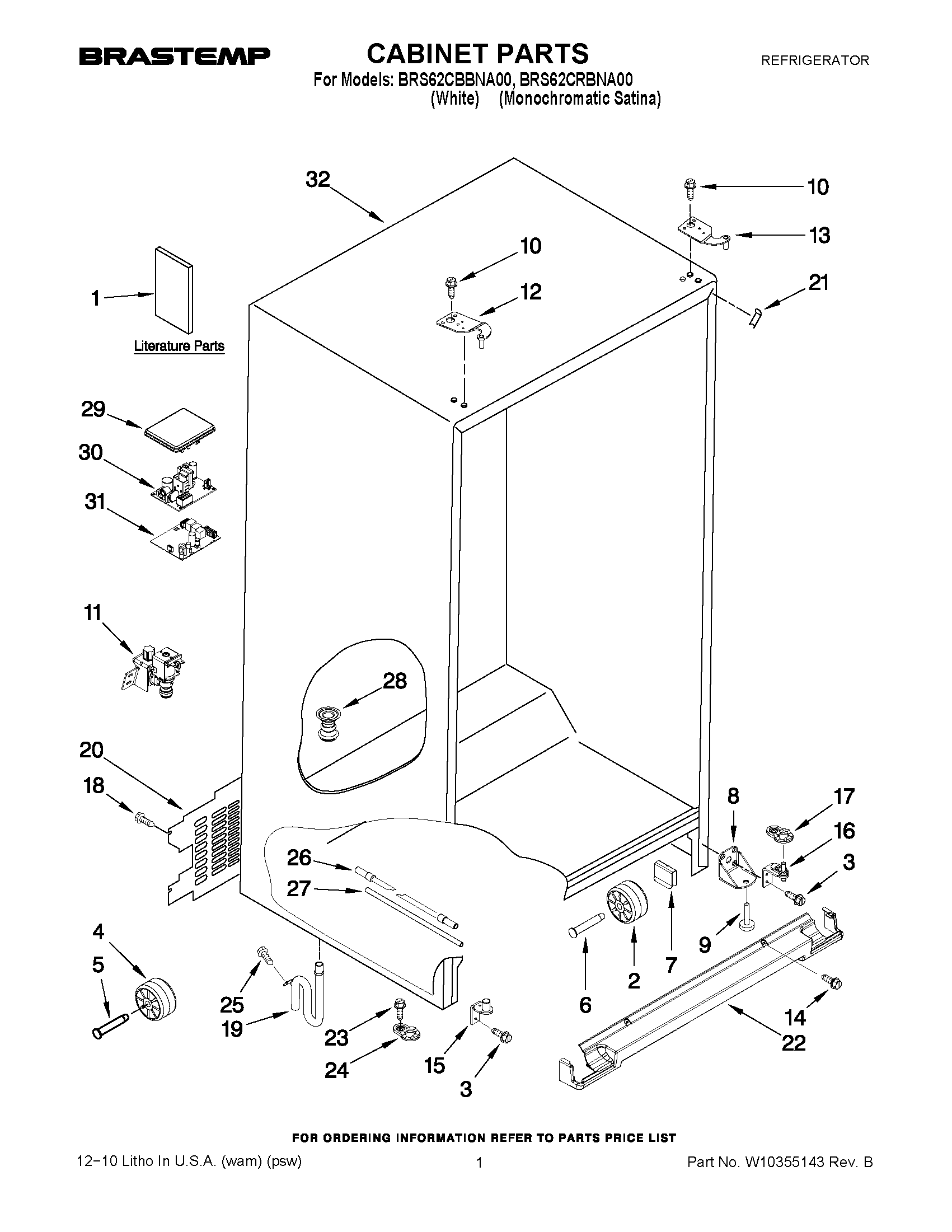

BRS62CBBNA00 01 – CABINET PARTS

Products

Position	Product
1	ENERGY LABEL
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
2	WPW10475495 Whirlpool Roller Assembly
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	WPW10285005 Whirlpool Refrigerator Rivet
7	W11545866 Whirlpool Refrigerator Clip
8	W11266052 Whirlpool Refrigerator Bracket
9	WPW10141622 Whirlpool Leveler
10	WPW10308751 Whirlpool Screw
10	WPW10308750 Whirlpool Refrigerator Screw
11	WPW10258560 Whirlpool Refrigerator Inlet Valve
12	W10901051 Whirlpool Refrigerator Door Hinge
12	W11590581 Whirlpool Refrigerator Door Hinge
13	W11573587 Whirlpool Refrigerator Door Hinge
13	HINGE-DOOR
14	WPW10142283 Whirlpool Refrigerator Screw
15	W11293374 Whirlpool Refrigerator Door Hinge
15	W11293373 Whirlpool Refrigerator Door Hinge
17	W10500004 Whirlpool Refrigerator Door Hinge
17	W10500000 Whirlpool Refrigerator Door Hinge
18	SCREW
19	W10280082 Whirlpool Extension
20	COVER, UNIT
21	12587703W Whirlpool Refrigerator Cover
21	WP12587703AP Whirlpool Refrigerator Filler
22	WPW10713160 Whirlpool Refrigerator Grille
22	WPW10713153 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24	W10876191 Whirlpool Refrigerator Door Cam
24	W10876198 Whirlpool Refrigerator Door Cam
25	WP489464 Whirlpool Refrigerator Screw
26	WPW10279882 Whirlpool Water Line
27	WPW10279884 Whirlpool Water Tube
28	W10247979 Whirlpool Refrigerator Fitting
29	LID, HV BOX
30	WPW10158418-includeCORE Whirlpool WPW10158418 Refrigerator Electronic Control Board + Core
31	WPW10235485-includeCORE Whirlpool WPW10235485 Refrigerator Electronic Control Board + Core
32	CABINET (NOT A SERVICEABLE PART)
